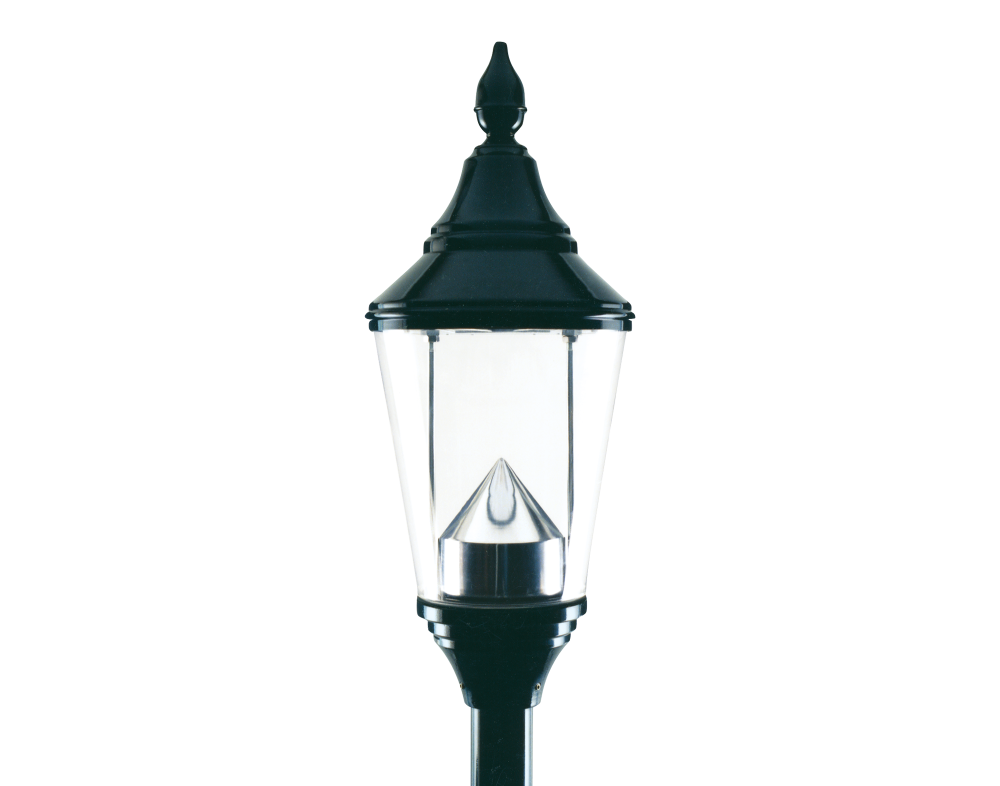

york ds product slider product image lighting 2000x1572px

Versatile lighting, made simple

York is a compact, post-top luminaire that combines elegance and performance, fitting perfectly into a variety of settings – from housing developments to amenity areas. This luminaire features a classic conical canopy.

  • Class-leading efficiency delivers substantial energy savings
  • Glazed cast base increases uniformity for improved visual comfort
  • Injection-moulded, polycarbonate glazing with glass-like clarity
  • Self-centring column entry for easy installation



Product in this range

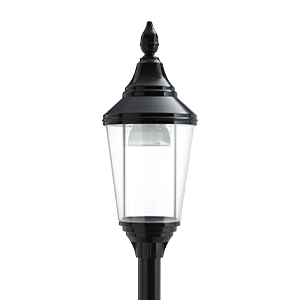

york 300x300px2

York

Weight: 5.0kg

Windage: 0.15m2

Contact us to find out more

*56.25* ResImages(13777, 0, 'desktop').Title

York

Check out our brochure

LED Light engines

To support a variety of applications, our Heritage lanterns are offered with a range of LED light engines. So whether you're looking for a high-performance light source to maximise energy savings, or something with a more traditional appearance, we have a solution for you.



Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px2

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px2

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px2

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px2

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px2

RAL 3005

Wine red

To personalise your scheme, other RAL colours are available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
UKCA, CE
Mounting Height (m):
3 - 6 m
Applications:
Housing developments
Conservation areas
Town centres
Parks & pathways

Lighting

Light source:
Performance LED, Performance CoB, Comfort CoB
Lumen Range (lumens):
980 - 9,500 lm
Power Range:
6 - 72 W
LED qty:
8 - 24
Distribution:
Performance LED: 14 Diamond+ Optics
Performance CoB: 4 Optics
Comfort CoB: 1 Optic
Colour Temperature (CCT):
2200K
2700K
3000K
4000K
Colour rendering (CRI):
70Ra / 80Ra (light source dependant)
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Controls:
Miniature photocell
Part-night switching
Pre-programmed dimming
Zhaga Book 18 socket
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Marine-grade coating
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-40°C to +40°C
Mounting:
Post top: Ø76mm
Wall bracket

Dimensions

york gen2 product dimension drawing W573px
Dimensions (mm):
  • A 786
  • Ø B 323
  • Ø C 76
  • D 363
Weight (kg):
5.0
Windage (m2):
0.14
