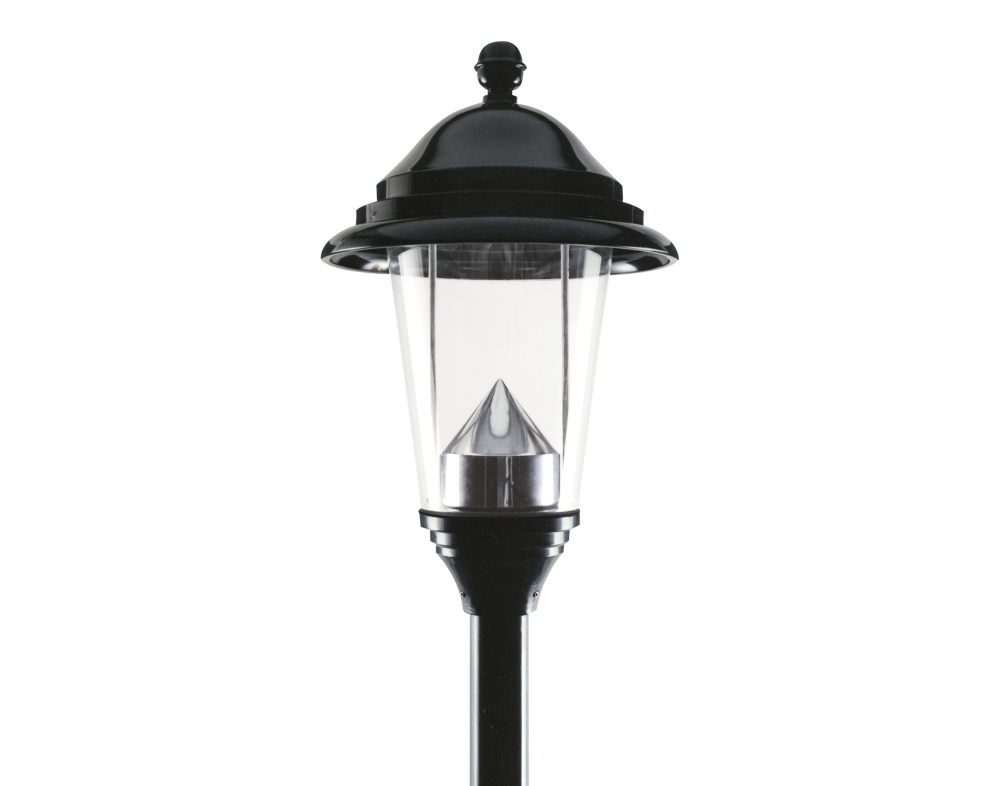

waterford product slider product image lighting 2000x1572px

Downloads

York brochure

Format: Adobe Acrobat PDF file, (2.3 MB)

Waterford product datasheet

Format: Adobe Acrobat PDF file, (132 KB)

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

Waterford
Products
/ Waterford
York brochure
Waterford product datasheet
Comfort CoB Product Performance Matrix
Performance LED Product Performance Matrix
Performance CoB Product Performance Matrix
Waterford product codes
Waterford photometry
Retrofit LED Solutions
Heritage lighting specification guide
Contact

Versatile lighting, made simple

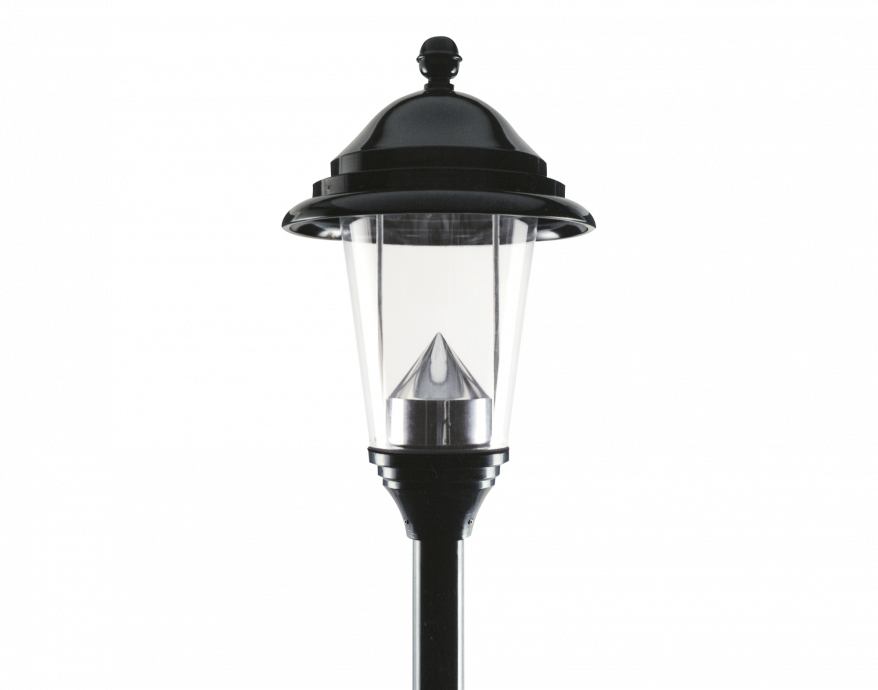

Waterford is a compact, post-top luminaire that combines elegance and performance, fitting perfectly into a variety of settings – from housing developments to amenity areas. This luminaire features a domed canopy and stepped brim.

  • Class-leading efficiency delivers substantial energy savings
  • Glazed cast base increases uniformity for improved visual comfort
  • Injection-moulded, polycarbonate glazing with glass-like clarity
  • Self-centring column entry for easy installation



Request a quote

Waterford

Diamond+ Optics

Waterford is available with a wide range of standard optical distributions for ultimate flexibility while ensuring light is only placed where needed.

EasyFit™ Base

Self-centring column entry and a retractable connection block ensure Waterford is quick and easy to install every time.

Invisible Wiring

Waterford features no visible cabling for a refined visual appearance and distinctive silhouette, with an injection-moulded 360° glazing with glass-like clarity for optimal performance.

Classic design, modern technology

Advances in LED technology mean that in addition to higher quality light, you can also reduce costs, make energy sayings, and take advantage of future technologies.

More on Diamond+ Optics

Contact us

Our Heritage range

Check out our brochure

View our brochures

LED Light engines

To support a variety of applications, our Heritage lanterns are offered with a range of LED light engines. So whether you're looking for a high-performance light source to maximise energy savings, or something with a more traditional appearance, we have a solution for you.



Performance LED

Best for applications where performance and flexibility are key

Performance CoB

Best for applications which require a single, high performance light source

Comfort CoB®

Best for applications where a more traditional appearance is needed

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK08
Certifications:
UKCA, CE
Mounting Height (m):
3-6
Applications:
Housing developments
Conservation areas
Town centres
Parks & pathways

Lighting

Light source:
High power LED, Chip on Board (CoB)
Lumen Range (lumens):
904-8728
Power Range:
6-72
LED qty:
1, 8, 16, 24
Distribution:
Diamond+ Optics® (A/B/C/Z)
Colour Temperature (CCT):
2200K
2700K
3000K
4000K
Colour rendering (CRI):
70Ra
Max efficacy (luminaire lumens):
up to 168lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1050mA (in 50mA increments)
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Zhaga Book 18 socket (top)
Integral CMS
Sensor ready driver
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Canopy: spun aluminium
Body: cast aluminium
Glazing: injection-moulded polycarbonate bowl (UV stabilised)
Seals: silicone
Finish:
Polyester powder coat
Marine-grade coating
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-40°C to +40°C
Mounting:
Post Top: Ø76mm

Downloads and dimensions

York brochure

Format: Adobe Acrobat PDF file, (2.3 MB)

Download

Waterford product datasheet

Format: Adobe Acrobat PDF file, (132 KB)

Download

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

Download

Performance LED Product Performance Matrix

Format: Adobe Acrobat PDF file, (147 KB)

Download

Performance CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (109 KB)

Download

Waterford product codes

Format: Adobe Acrobat PDF file, (43 KB)

Download

Waterford photometry

Format: ZIP compressed file, (2.8 MB)

Download

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Download

Heritage lighting specification guide

Format: Adobe Acrobat PDF file, (2.7 MB)

Download

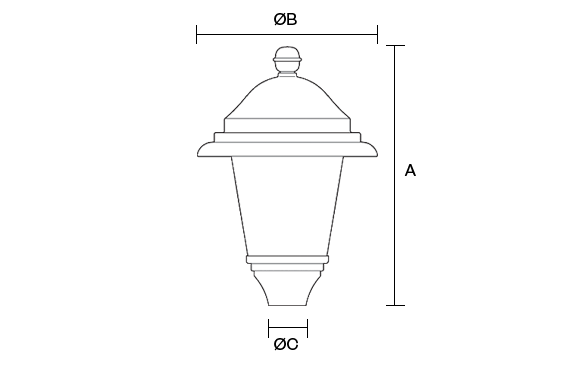

waterford gen2 product dimension drawing W573px
Dimensions (mm):
  • A 655
  • Ø B 450
  • Ø C 76
  • D 363
Weight (kg):
5.3
Windage (m2):
0.15
