Salisbury

Change view:

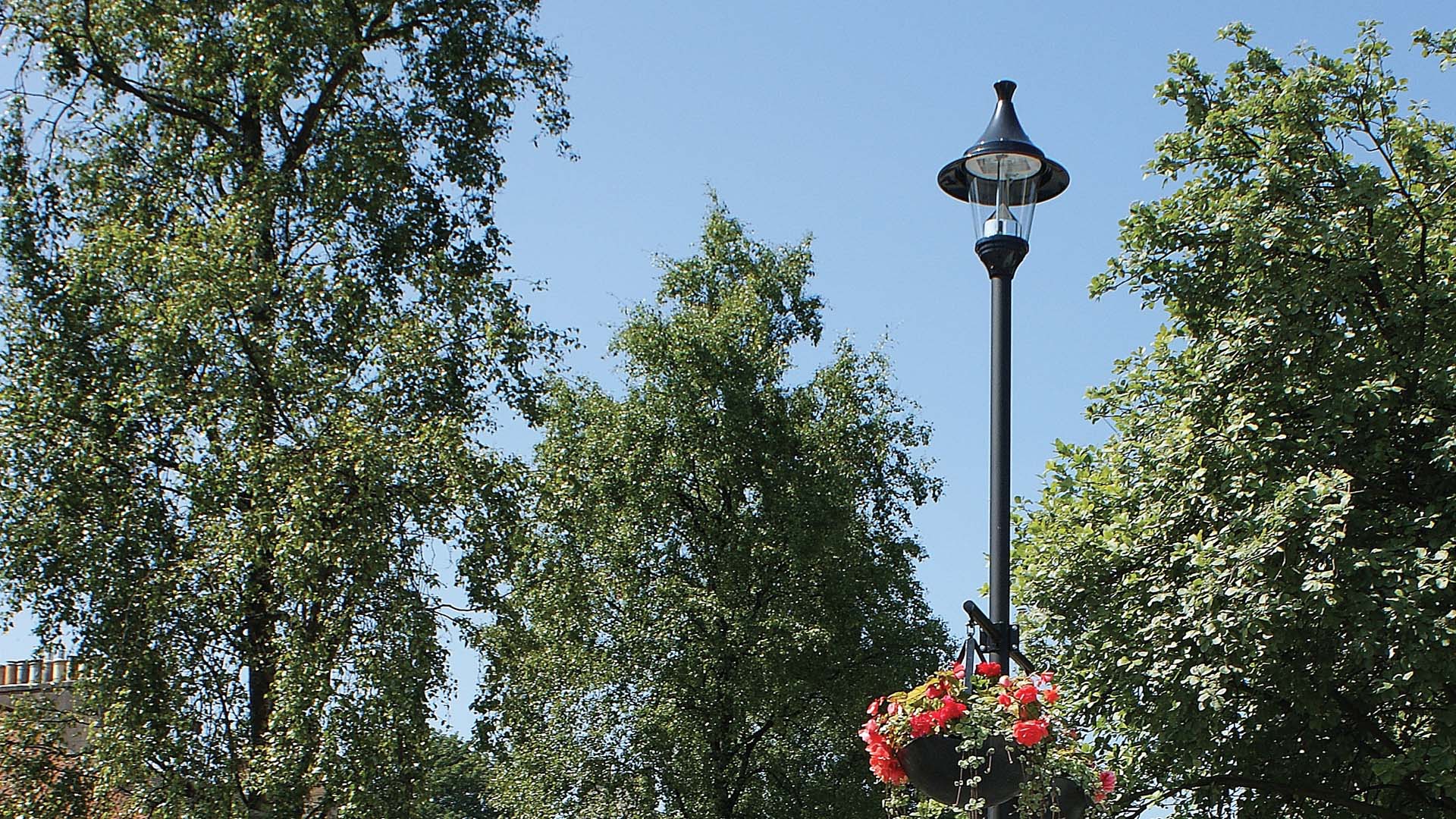

Salisbury Heritage Street Lighting Location image 1920x1080px Alt1

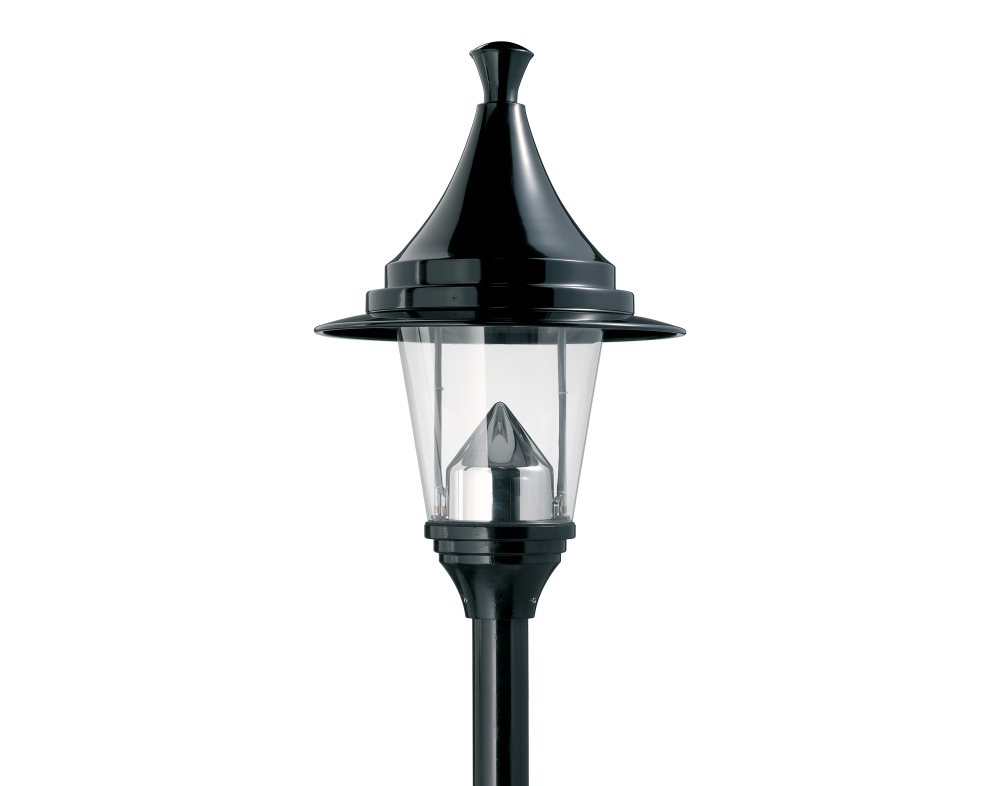

Salisbury Heritage Street Lighting Product image 2000x1572px Alt1

Downloads

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

Performance LED Product Performance Matrix

Format: Adobe Acrobat PDF file, (147 KB)

Performance CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (109 KB)

Compact classic luminaire offering surprising output

Salisbury, a traditional post top luminaire, effortlessly integrates into a variety of settings from housing estates to car parks and amenity areas.

  • For mounting at 3-6 metres
  • Available with a range of LED solutions to suit your application
  • Control gear housed in luminaire base for extra robustness

Request a quote

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 1309-4673 12-47 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 2907-6873 22-55 2700K, 3000K, 4000K
Comfort CoB® Chip on Board (CoB) Glass bowl refractor 904-3614 8-40 2700K, 3000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K

Check out our Heritage brochure

Contact us to find out more

LED Light engines

Designed to fit effortlessly within the majority of our exterior lighting luminaires, the LED Light Engine is available in new luminaires or as a retrofit option.

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
3-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
904-6873
LED qty:
1-16

Power and control

Controls:
Miniature photocell
Part-night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Neoprene
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Mounting:
Post Top: Ø76mm

Downloads and dimensions

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

Performance LED Product Performance Matrix

Format: Adobe Acrobat PDF file, (147 KB)

Performance CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (109 KB)

Heritage lighting brochure

Format: Adobe Acrobat PDF file, (12 MB)

Salisbury product codes

Format: Adobe Acrobat PDF file, (33 KB)

Salisbury photometry

Format: ZIP compressed file, (2.8 MB)

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Salisbury product dimenion drawing W573px
Dimensions (mm):
  • A 778
  • Ø B 500
  • Ø C 76
Weight (kg):
9.4
Windage (m2):
0.16
