Strand

One of our most popular heritage luminaires, Strand is inspired by traditional railway gas lanterns. Strand can be bracket or column-mounted, easy to install and maintain, and is suitable for a wide range of applications from residential areas to main roads and city centres.

Strand is offered in four equally proportioned sizes - A Plus, A, B and C, and is recommended for mounting up to ten metres. Available in our standard RAL colours.

Available in four sizes
Recommended for mounting at 4-12 metres
Exceptional ease of maintenance via stainless steel over-centre latches

Product Selector

Mounting Height (m)4-12

Choose

Lumen Range (lumens)953-18069

Choose

Products in this range

(4 in total)

Change view:

Product

Strand A Plus

Product

Strand A

Product

Strand B

Product

Strand C

Name	Mounting Height (m)	Lumen Range (lumens)	Weight (kg)
Strand A Plus	10-12	3008-18069	18
Strand A	6-10	3008-18069	11.5
Strand B	4-8	953-10265	8.5
Strand C	4-6	953-8337	5.5

10-12

3008-18069

6-10

3008-18069

11.5

4-8

953-10265

8.5

4-6

953-8337

5.5

Check out our Heritage brochure

Pendant mounting options

Offered with either a threaded entry or our Easy-fit™ entry.

Easy-fit™

The Easy-Fit™ entry, which is our own design, both simplifies luminaire alignment and eliminates the problem of twisted cabling associated with threaded entries. This is compatible with most of our wall and column brackets.

Threaded

The threaded entry is the conventional method of mounting the luminaire and is compatible with most new and existing bracket types.

"U" bracket entry

For the Strand there are two different styles of "U" bracket; a traditional square design and a design that closely follows the shape of the tear drop glazing.

The “U” bracket options are unaffected by the brim type eg any “U” bracket shape can be used with either wide or narrow brim. “U” brackets are made in steel, galvanised and then polyester powder coated in the colour of the lantern and supplied pre-assmembled to the lantern.

Wiring is made simple by having a terminal block mounted within the base of the “U” bracket.

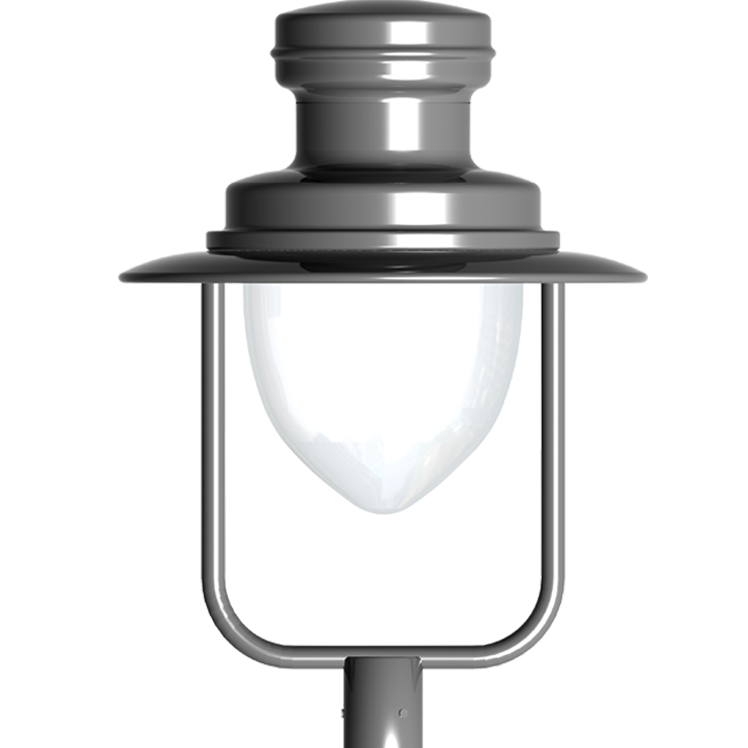

Square "U" bracket

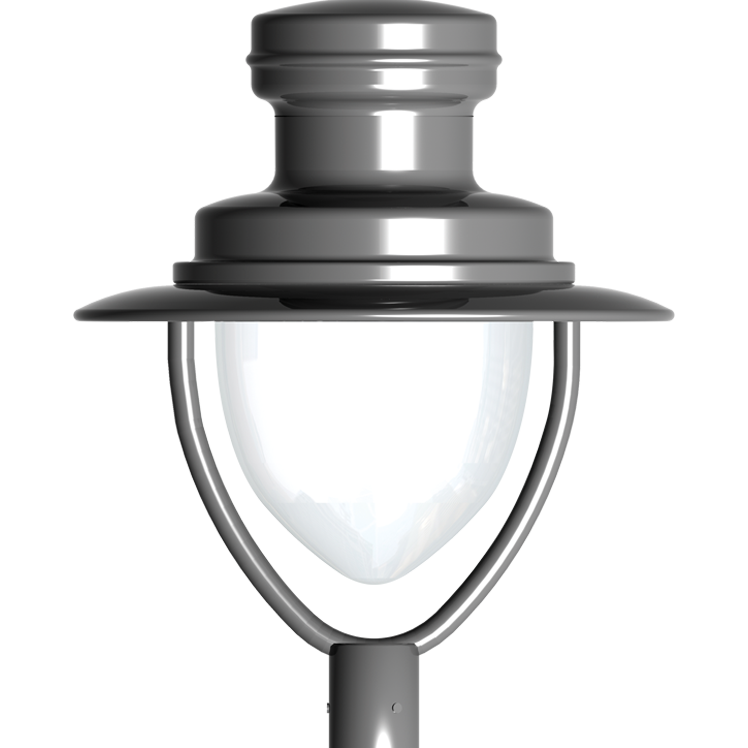

Tear Drop "U" bracket

Options

Strand can be supplied in a large variety of configurations. Choose from 4 sizes, pendant or post top mounting, narrow or wide brim, and our wide range of LED solutions. The below table explains which options are available for each lantern size.

Product	Light source*	"U" bracket options	Pendant mounting type
Strand A Plus	PLED / Lamp	-	Easy-Fit™
Strand A	PLED / PCoB / Lamp	-	Easy-Fit™ / Threaded
Strand B	PLED / PCoB / CCoB® / Gas / Lamp	Square / Tear Drop	Easy-Fit™ / Threaded
Strand C	PLED / PCoB / CCoB® / Gas / Lamp	Square / Tear Drop	Easy-Fit™ / Threaded

*Light source abbreviations : PLED - Performance LED / PCOB - Performance COB / CCOB® - Comfort COB® / Gas - Braun by DW Windsor

LED Light engines

Designed to fit effortlessly within the majority of our exterior lighting luminaires, the LED Light Engine is available in new luminaires or as a retrofit option.

Performance LED

For optimised energy savings and lighting performance featuring Diamond+.

Performance CoB

For performance lighting with the appearance of a lamp.

Comfort CoB®

For energy savings and pedestrian friendly lighting.

Braun, by DW Windsor

For the ultimate authentic heritage aesthetic.

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:

IP rating:

IP65

IK rating:

IK08

Mounting Height (m):

4-12

Applications:

Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):

953-18069

LED qty:

1-64

Mechanical and installation

Materials:

Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone

Finish:

Polyester powder coat

Product colours:

RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request

Operating temp (°C):

-45°C to +50°C

Dimensions (mm):

A 870
Ø B 900

Weight (kg):
18

Windage (m²):
0.35

Strand A product dimension drawing W573px

Dimensions (mm):

A 643
Ø B 670

Weight (kg):
11.5

Windage (m²):
0.19

Strand B product dimension drawing W573px

Dimensions (mm):

A 575
Ø B 585

Weight (kg):
8.5

Windage (m²):
0.15

Strand C product dimension drawing W573px

Dimensions (mm):

A 498
Ø B 480

Weight (kg):
5.5

Windage (m²):
0.11
