A modern take on a traditional style

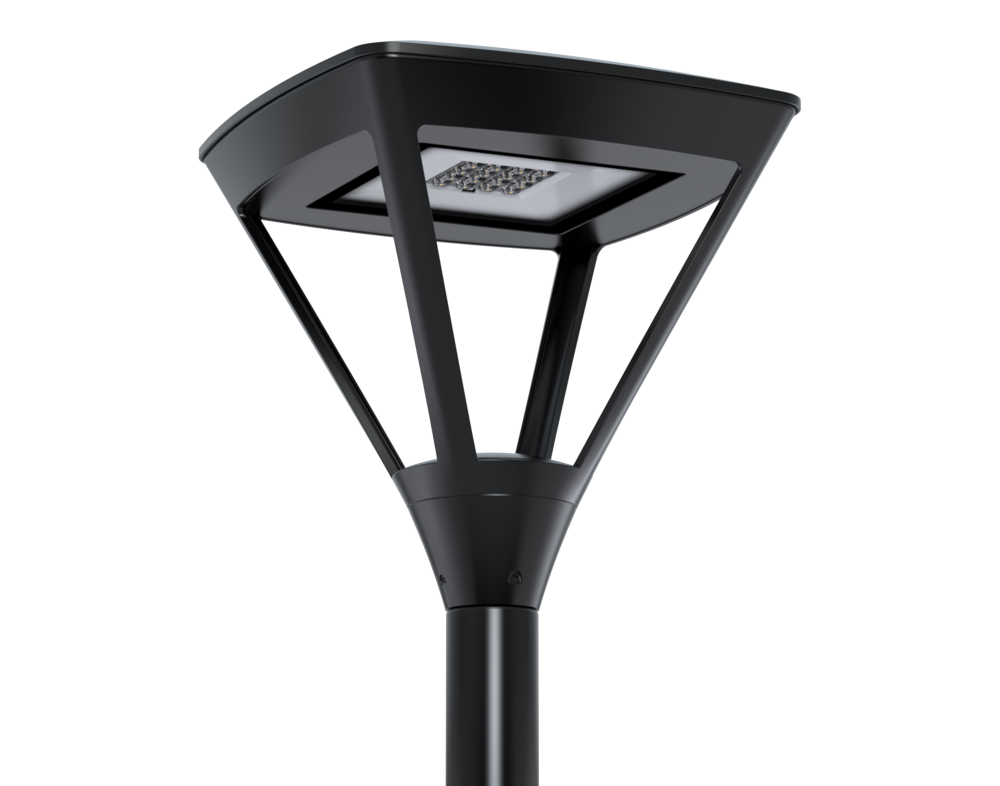

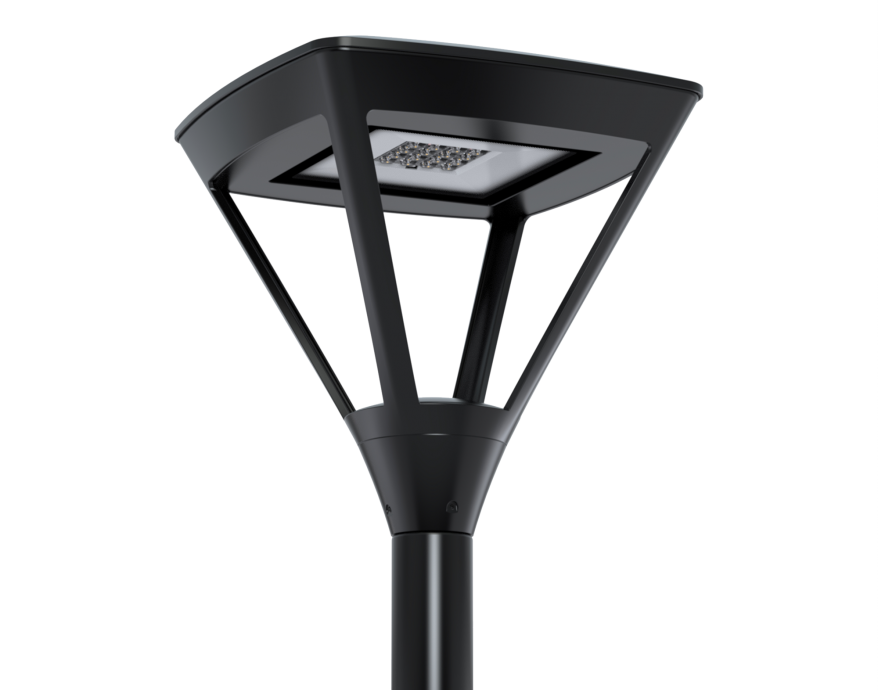

Our Sofia post-top luminaire offers flexible LED outputs and a choice of colour temperatures.

  • Recommended for mounting at 4-6 metres
  • Available in 8 or 16 LEDs
  • From 700 - 6000lm

  Request a quote

Options in this range

Name Lumen Range (lumens) Power Range
Sofia 1 700-3100 7-31
Sofia 2 1378-6000 12-55

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
Buildings
High street & road lighting
Car parks

Lighting

Light source:
High power LED
Lumen Range (lumens):
700-6000
LED qty:
8-16
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Remote switch
Remote dim
Pre-programmed dim
Photocell switch
Photocell dim
Full CMS
Surge protection:
10kV
Driver:
Philips Xi

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Glazing: 4mm toughened low-iron glass
Finish:
Polyester powder coat
Product colours:
RAL 7035 Light grey
RAL 7046 Mid grey
RAL 9005 Black
Operating temp (°C):
-45°C to +50°C
Mounting:
Post Top: Ø76mm

Downloads and resources

Downloads

Sofia photometry

Format: ZIP compressed file, (2.6 MB)

Sofia brochure

Format: Adobe Acrobat PDF file, (1.1 MB)

Dimensions

Dimensions (mm):
  • A 500
  • B 500
  • C 532
  • Ø D 76
Weight (kg):
10.5
Windage (m2):
0.148
