Sephora
Specification
Dimensions
Downloads (5)
Enquire now
sephora product slider product image lighting 2000x1572px2

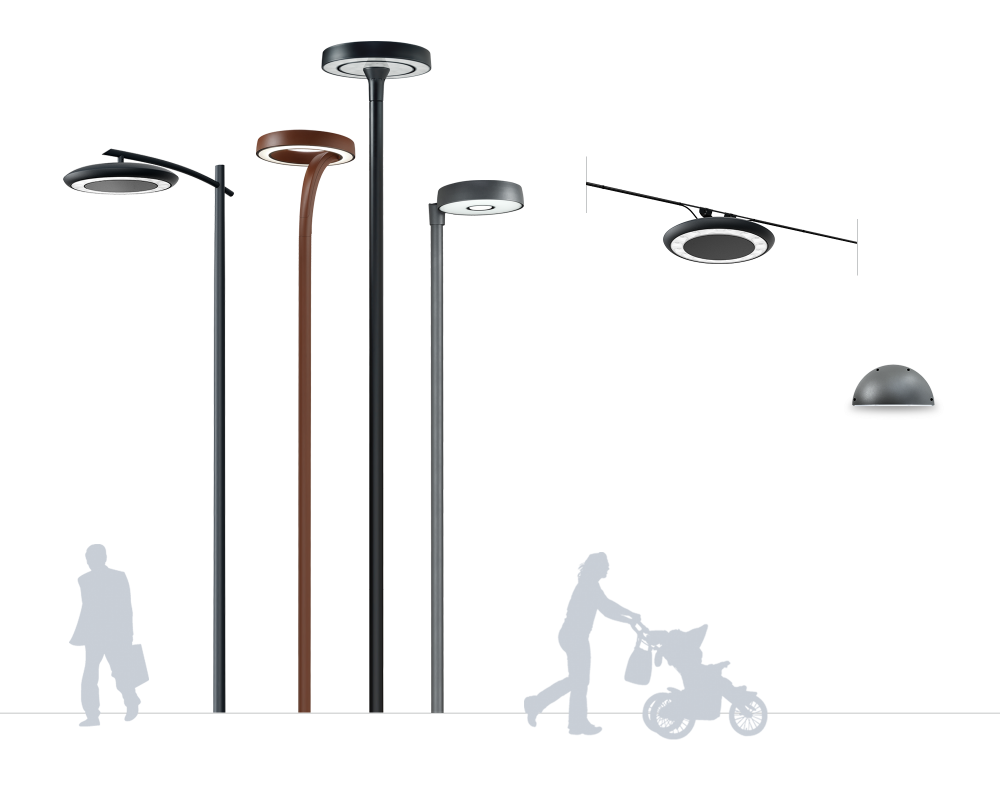

Contemporary lighting that defies convention



Sephora is your complete, modular, customisable lighting solution helping to design urban spaces. Featuring high-performance light engines, the Sephora family is circular in shape, versatile in application, and includes three sizes and a choice of aesthetic.

Product features

Two sizes

Sephora is offered in two sizes, 450 and 650, to support different applications and mounting heights.

Flexible mounting

Suitable for any application, with Side Entry, Direct Post and Post Top mounting options available, allowing for mounting heights of 5-12 metres.

Two styles

A super flexible family of luminaires, Sephora’s understated design is consistent across the range, with Radius or Cubis style options available.

Controls

SmartCore™ is the heart of Sephora, providing space for the mounting of internal CMS nodes, external sensors, and NEMA sockets.

Products in this range

Sephora 450



Lumen Output 1100-17500lm
 Power 11-126W
 Weight 13kg
 Windage 0.063m2

Sephora 650



Lumen Output 2100-34000lm
 Power 15-252W
 Weight 20.5kg
 Windage 0.081m2



Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

Corten Brown colour swatch 548x548px

Corten Brown



To personalise your scheme, other RAL colours are available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE
Mounting Height (m):
4 - 12 m
Applications:
Public realm
High street & road lighting
Car parks
Buildings

Lighting

Light source:
Mid power LED
Optical control (lookup):
Diamond+
Lumen Range (lumens):
3,200- 33,650
Power Range:
31 - 134 lm
LED qty:
16 - 32 W
Distribution:
5 Diamond+ Optics (A / B / C / D)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
>70Ra (4000K)
>80Ra (3000K / 27000K)
Max efficacy (luminaire lumens):
up to 140lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
75mA-800mA (in 25mA increments)
Controls:
Photocell
Part night switching
Pre-programmed dimming
NEMA
CMS compatible
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Body & entries: High pressure die-cast aluminium
Outer surfaces: Aluminium
Seals: Silicone
Glazing: Toughened glass for IK09 / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Operating temp (°C):
-20°C to +40°C
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm
Post Top: Ø76mm

Dimensions

Sephora 450 Cubis product dimension drawing W573px
Dimensions (mm):
  • A 488
  • B 105
Weight (kg):
12.36
Windage (m2):
0.060
Sephora 450 Radius product dimension drawing W573px
Dimensions (mm):
  • A 621
  • B 105
Weight (kg):
13
Windage (m2):
0.063
Sephora 650 Cubis product dimension drawing W573px
Dimensions (mm):
  • A 690
  • B 105
Weight (kg):
20
Windage (m2):
0.079
Sephora 650 Radius product dimension drawing W573px
Dimensions (mm):
  • A 779
  • B 105
Weight (kg):
20.5
Windage (m2):
0.081
