Kirium Pro S
Specification
Dimensions
Downloads (17)
Enquire now

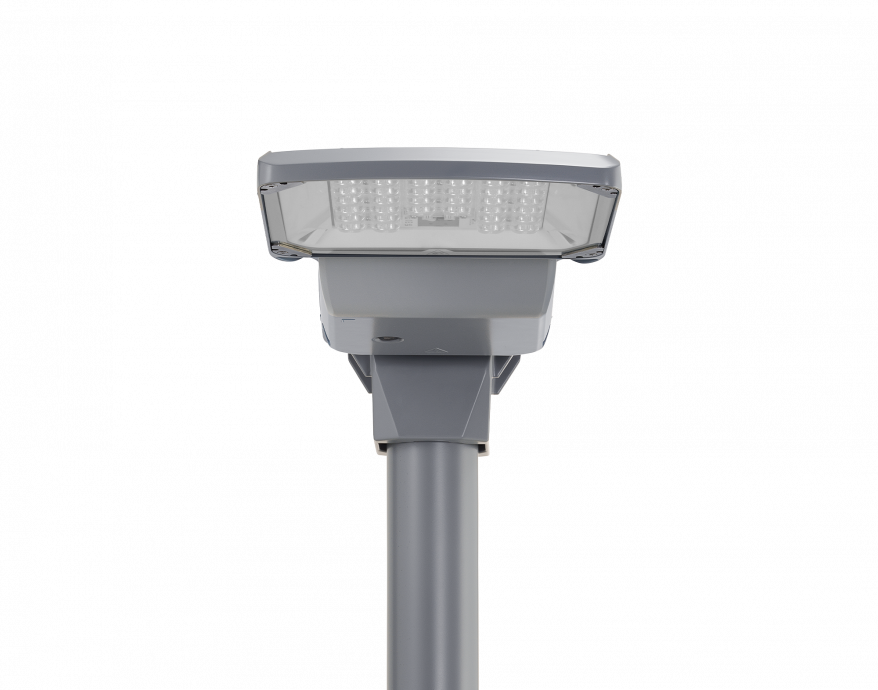

kirium pro s photo product slider Product image Lighting 2000x1572px ds

Designed to perform, built to last



Offering exceptional performance, and a low total cost of ownership, Kirium Pro S is highly
efficient, helping to lower running costs and deliver a quick return on investment.

Product features

Futureproofed Solution

Kirium Pro S is compatible with the latest lighting control technologies via optional top and bottom sockets while also utilising Zhaga standard components to ensure it's easy to maintain and upgrade.

Toolless Entry

With quick-release spring clips to access internal components, auto disconnect power supply options, and optional tamper-proof screws, Kirium Pro S has been designed with safety and hassle-free installation.

Universal Entry

With quick and easy tilting functionality, Kirium Pro S offers on-site adjustments without disconnecting the flex from the luminaire, offering maximum flexibility for schemes.

Diamond+

With 23 Diamond+ optical distributions to ensure light is placed only where it's needed for comfort and safety. Multiple LED configurations and flexible drive currents for performance suit your scheme.

Products in this range

Kirium Pro S Mini



Lumen Output 1,210 - 3,945lm
 Power 7 - 28W
 Weight 4.8kg
 Windage 0.039m2

Kirium Pro S1



Lumen Output 2,350 - 14,175lm
 Power 12 - 96W
 Weight 5.5kg
 Windage 0.053m2

Kirium Pro S2



Lumen Output 4,350 - 32,150lm
 Power 23 - 187W
 Weight 7.2kg
 Windage 0.059m2

Kirium Pro S4



Lumen Output 22,900-55,000lm
 Power 114 - 291W
 Weight 14.4kg
 Windage 0.107m2

Standard colours

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light Grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK08
Certifications:
UKCA, CE, ENEC
Mounting Height (m):
4 - 12 m
Applications:
Roads
Carriageways
Footpaths
Cycleways
Car parks
Rail

Lighting

Light source:
High power LED
Lumen Range (lumens):
1,210 - 32,150 lm
23,900 - 55,000 lm (Kirium Pro S4)
Power Range:
7 - 187 W
114 - 291 W (Kirium Pro S4)
LED qty:
8 - 80
168 (Kirium Pro S4)
Distribution:
14 Diamond+ Optics (A / B / C / Z)
6 Diamond+ Optics (KPS2 80LED only)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
Up to 208lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Tilt / inclination:
Post Top:-10° to +15° (2.5° increments), Side Entry:-15° to +10° (2.5° increments)
Materials:
Body: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass
Finish:
Smooth polyester powder coat
Marine-grade coating
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-40°C to +40°C
Mounting:
Univeral Entry (PT): Ø60mm - Ø76mm
Univeral Entry (SE): Ø34mm - Ø60mm

Dimensions

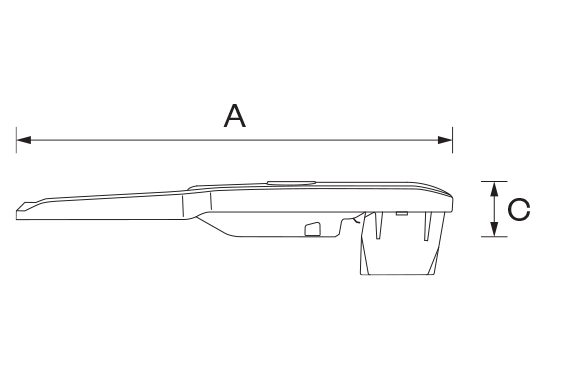

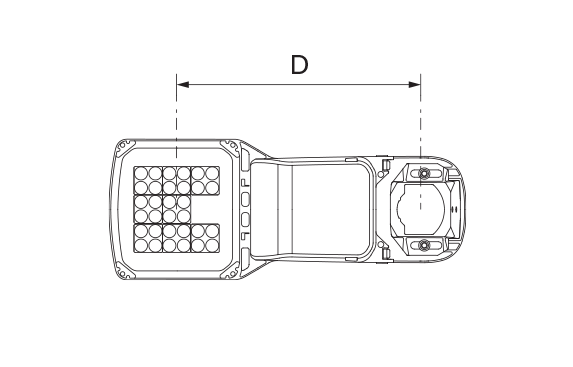

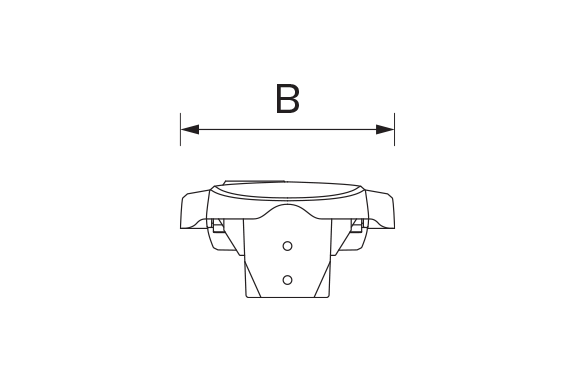

dww website dimensioned drawings kirium pro s mini
Dimensions (mm):
  • A 532
  • B 200
  • C 80
  • D 378
Weight (kg):
4.8
Windage (m2):
0.039

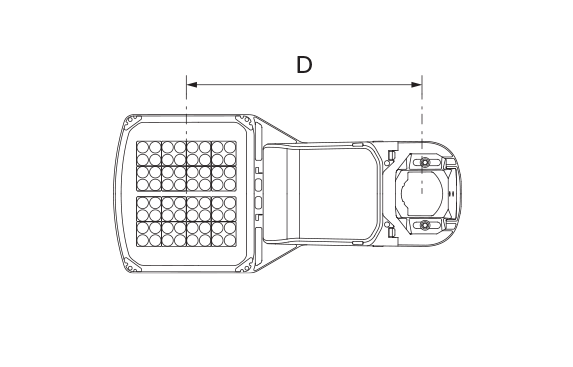

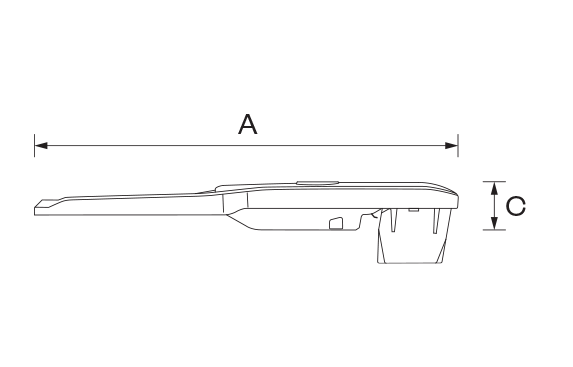

dww website dimensioned drawings kirium pro s1
Dimensions (mm):
  • A 632
  • B 246
  • C 80
  • D 432
Weight (kg):
5.5
Windage (m2):
0.053
dww website dimensioned drawings kirium pro s2
Dimensions (mm):
  • A 704
  • B 320
  • C 80
  • D 478
Weight (kg):
7.2
Windage (m2):
0.059
dww website dimensioned drawings kirium pro s4
Dimensions (mm):
  • A 906
  • B 372
  • C 80
  • D 570
Weight (kg):
14.4
Windage (m2):
0.107
