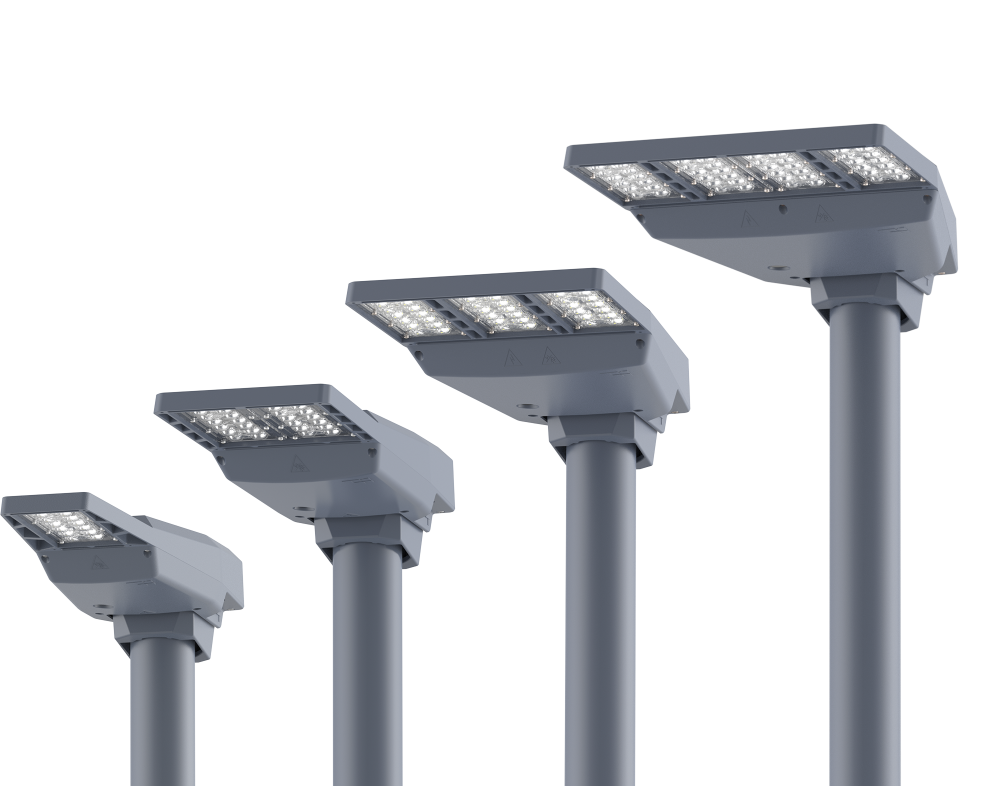

Kirium Eco Family Product slider Product image Lighting 2000x1572px2

Downloads

Kirium Eco brochure

Format: Adobe Acrobat PDF file, (4.1 MB)

Kirium Eco Product Performance Matrix

Format: Adobe Acrobat PDF file, (128 KB)

Kirium Eco product codes

Format: Adobe Acrobat PDF file, (73 KB)

Kirium Eco
Products
/ Kirium Eco
Kirium Eco brochure
Kirium Eco Product Performance Matrix
Kirium Eco product codes
Kirium Eco Mini photometry
Kirium Eco Midi photometry
Kirium Eco Max photometry
Kirium Eco Ultra photometry
Kirium Eco BIM files
Contact

Our most competitive range of street lighting yet

Kirium Eco is our most competitive range of LED luminaires to date.

  • Low total cost of ownership
  • Adaptable mounting block allows on-site switching from side entry to post top, with cable fitted
  • Quick and easy tilt adjustment
  • Dedicated optical solutions for roads, footpaths and crossings
  • Smart-City ready

Request a quote

Products in this range

(4 in total)

Change view:

Product

Kirium Eco Mini

Product

Kirium Eco Midi

Product

Kirium Eco Max

Product

Kirium Eco Ultra
Name Mounting Height (m) LED qty Weight (kg) Windage (m2)
Kirium Eco Mini 4-6 12 3.8-4.3 0.039 (CxS = 0.028)
Kirium Eco Midi 6-8 24 4.1-4.6 0.039 (CxS = 0.025)
Kirium Eco Max 8-10 36 6 0.041 (CxS = 0.032)
Kirium Eco Ultra 10-12 48 7.3 0.041 (CxS = 0.026)
Contact us about this product
4-6
12
3.8-4.3
0.039 (CxS = 0.028)
6-8
24
4.1-4.6
0.039 (CxS = 0.025)
8-10
36
6
0.041 (CxS = 0.032)
10-12
48
7.3
0.041 (CxS = 0.026)
ResImages(9322, 0, 'desktop').Title

Check out our brochure

Contact us to find out more

Key Features

Adaptable Mounting Block

Adaptable from post top to side entry mounting on-site, even with pre-fitted cable tail.

Controls & Connectivity

From simple photocells and factory-set dimming or switching regimes to full CMS connectivity, Kirium Eco can be enhanced through intelligent and connected sensors and control systems. Connect NEMA or Zhaga Book 18 compliant sensors or wireless communication devices for on/off switching, light control and dimming.

Find out more



Design Features

Anti-Condensation Valve

Prevents moisture build up inside the housing as a result of ambient temperature fluctuations, further protecting the IP rating.

Easy Tilt Adjustment

Side entry: -15° to +10°

Post top: -5° to +15°

0% ULOR

For Dark Sky friendly schemes, reducing sky glow and light pollution.

Warm Colour Temperatures

A wide selection of colour temperatures are available for a vibrant and enhanced visual comfort.

Dedicated Optics

Medium road   Wide road   Narrow road Icons M CLASS Footpath  Zebra

Wide Road

(Type 1 | Type 2)

Medium Road

(Type 1 | Type 2)

 Narrow Road

(Type 1 | Type 2)

Traffic Routes



Area

(Symmetric | Asymmetric)

Pedestrian Crossing



Standard Colours

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light Grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK08
Certifications:
UKCA, CE, ENEC
Mounting Height (m):
4-12
Applications:
High street & road lighting
Car parks
Area lighting
Buildings
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
1370-22500
LED qty:
12-48
Distribution:
Narrow Road (Type 1 / Type 2)
Medium Road (Type 1 / Type 2)
Wide Road (Type 1 / Type 2)
Traffic Routes
Area (Symmetric / Asymmetric)
Zebra Crossing (Left / Right)
Colour Temperature (CCT):
2200K
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
up to 185lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Dimming:
DALI (10-100%)
Controls:
Miniature photocell
NEMA photocell
Part night switching
Pre-programmed dimming
NEMA photocell
Integral CMS
3/5/7 pin NEMA socket
4 pin Zhaga Book 18 socket
Surge protection:
up to 10kV
Driver:
Fully programmable (with constant light output)

Mechanical and installation

Tilt / inclination:
Post top: -5° to +15° (5° increments)
Side entry: -15° to +10° (5° increments)
Materials:
Body (standard): Full LM6 die-cast aluminium
Body (hybrid): LM6 die-cast aluminium upper and UV-stabilised polypropylene polymer lower
Lenses: PMMA (polycarbonate on request)
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 7046 Mid Grey
RAL 7035 Light Grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-20°C to +25°C (please contact us for lifetime information at higher ambient temperatures)
Mounting:
Post Top: Ø60-76mm
Side Entry: Ø34-60mm

Downloads and dimensions

Kirium Eco brochure

Format: Adobe Acrobat PDF file, (4.1 MB)

Download

Kirium Eco Product Performance Matrix

Format: Adobe Acrobat PDF file, (128 KB)

Download

Kirium Eco product codes

Format: Adobe Acrobat PDF file, (73 KB)

Download

Kirium Eco Mini photometry

Format: ZIP compressed file, (9.4 MB)

Download

Kirium Eco Midi photometry

Format: ZIP compressed file, (20 MB)

Download

Kirium Eco Max photometry

Format: ZIP compressed file, (27 MB)

Download

Kirium Eco Ultra photometry

Format: ZIP compressed file, (37 MB)

Download

Kirium Eco BIM files

Format: ZIP compressed file, (908 KB)

Download
Kirium Eco Mini Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • A 588
  • B 97
  • C 180
  • D 135
Weight (kg):
4.3 (standard) 3.8 (hybrid)
Windage (m2):
0.039 (CxS = 0.028)
Kirium Eco Midi Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • A 588
  • B 180
  • C 180
  • D 135
Weight (kg):
4.6 (standard) 4.1 (hybrid)
Windage (m2):
0.039 (CxS = 0.025)
Kirium Eco Max Product variant dimensions drawing Lighting W573px2
Dimensions (mm):
  • A 588
  • B 261
  • C 180
  • D 139
Weight (kg):
6
Windage (m2):
0.041 (CxS = 0.032)
Kirium Eco Ultra Product variant dimensions drawing Lighting W573px2
Dimensions (mm):
  • A 588
  • B 336
  • C 180
  • D 139
Weight (kg):
7.3
Windage (m2):
0.014 (CxS = 0.026)
