Kirium One

Change view:

kirium one product slider product image lighting 2000x1572px5

Downloads

Kirium One brochure

Format: Adobe Acrobat PDF file, (7.2 MB)

Kirium One product datasheet

Format: Adobe Acrobat PDF file, (98 KB)

Kirium One installation guide

Format: Adobe Acrobat PDF file, (4.1 MB)

More views

kirium one product slider product image lighting 2000x1572px5

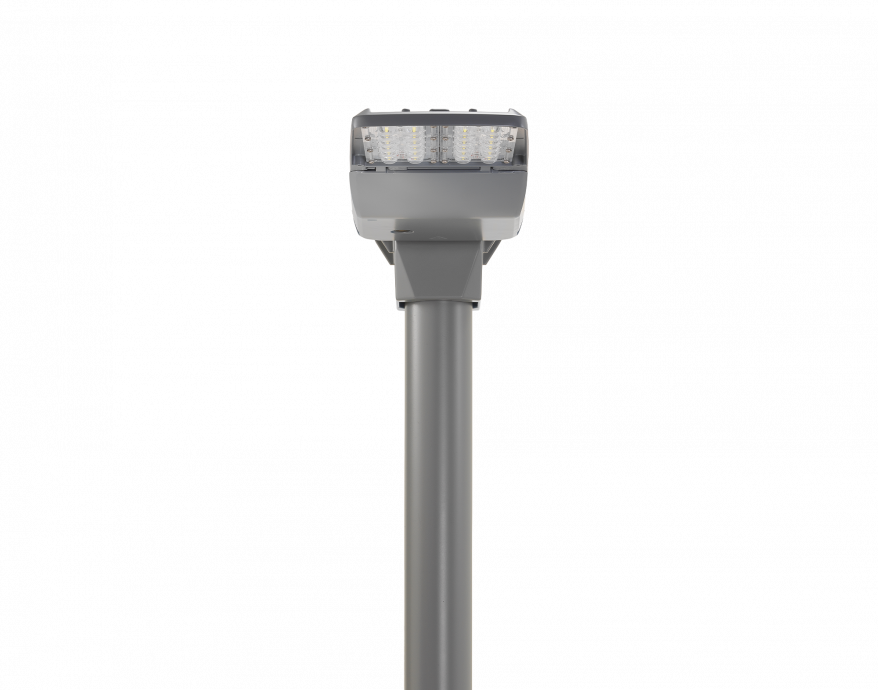

kirium one front product slider product image lighting 2000x1572px6

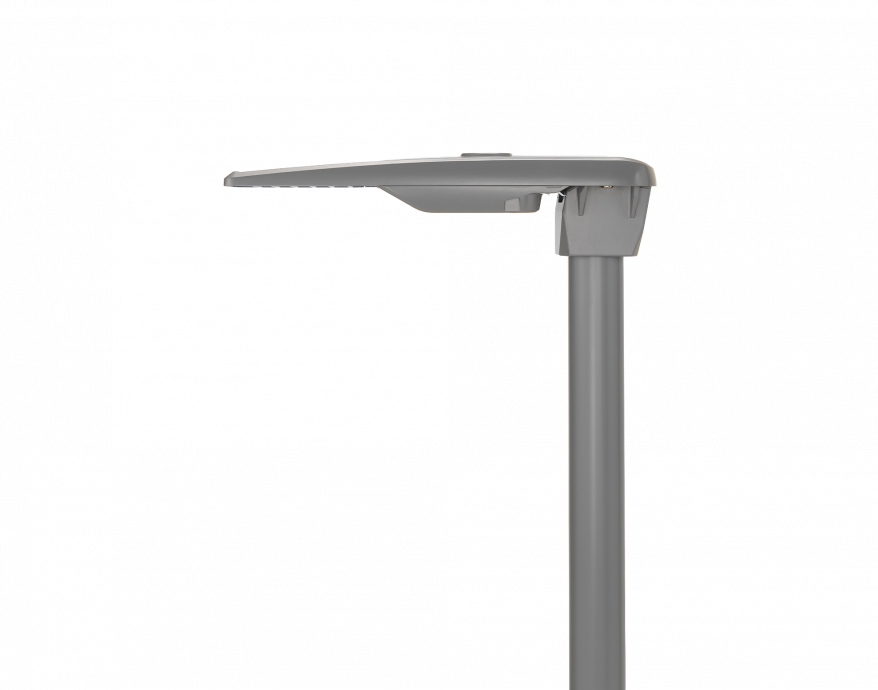

kirium one side product slider product image lighting 2000x1572px5

Excellent performance.

Exceptional value.



Offering exceptional performance, easy maintenance and a low total cost of ownership, Kirium One is a highly efficient lighting solution designed with contractors in mind and optimised for road and footpath lighting applications.

  • Highly efficient solution delivering up to 179lm/W to support substantial long-term savings
  • Available with 12 or 24 LED light engines and flexible drive currents for tailored performance
  • Easy to install using the Universal Entry for quick switching between post top and side entry on site
  • Futureproofed design using standardised components and a range of connectivity options

Request a quote

Product Selector

Mounting Height (m)4-8

Lumen Range (lumens)1105-11425

Weight (kg)

Check out our latest brochure

Contact us to find out more

Universal Entry

Kirium One can be supplied pre-wired, making the optional Universal Entry a game changer in having on-site switching from side entry to post-top entry without the need to disconnect the flex. Kirium One also has quick and easy tilting functionality enabling delicate on-site adjustments to the luminaire.



This feature can easily adapt to any column or bracket mounting on-site, offering maximum flexibility during installation

Features & Benefits

dww icons efficient mb5

Futureproofed Lighting

Kirium One can perform over a 100,000-hour lifetime with connectivity options and Zhaga-compatible components.

dww icons precise mb3

Dedicated Optics

With 11 dedicated optics, Kirium One can deliver targeted illumination and excellent uniformity.

dww icons weather proof mb5

Built to Last

With an IP66 rating and an anti-condensation valve from constructed high-quality materials to prevent moisture build-up.

dww icons circularity mb2

Circular by Design

Constructed with durable materials and replaceable components to reduce waste and maximise service life.

dww icons service mb2

Easy to Maintain

Offering toolless entry and optional electrical auto-disconnect to ensure safe maintenance.

dww icons lightweight mb2

A lightweight solution

Kirium One reduces its overall weight and carbon footprint by using the minimal amount of raw materials possible.

Find out more

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK08
Certifications:
UKCA, CE, ENEC, ZD4i
Mounting Height (m):
4-8
Applications:
High street & road lighting
Car parks
Area lighting
Buildings
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
1105-11425
LED qty:
12-24
Distribution:
Narrow Road (Type 1 / Type 2)
Medium Road (Type 1 / Type 2)
Wide Road (Type 1 / Type 2)
Traffic Routes
Area (Symmetric / Asymmetric)
Zebra Crossing (Left / Right)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
up to 179lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
200mA - 1050mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
up to 10kV
Driver:
Fully programmable (with constant light output enabled)

Mechanical and installation

Tilt / inclination:
Post top: -10° to +15° (2.5° increments)
Side entry: -15° to +10° (2.5° increments)
Materials:
Body: die-cast aluminium / die-cast aluminium with UV-stabilised polycarbonate lower cover
Seals: Silicone
Optics: PMMA
Finish:
Smooth polyester powder coat
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-20°C to +40°C (please contact us for lifetime information at higher ambient temperatures)
Mounting:
Universal Entry (post top: Ø60-76mm
side entry: Ø34-60mm)
Dedicated Post Top Entry (Ø60-76mm)
Dedicated Side Entry (Ø34-60mm)

Downloads and dimensions

Kirium One brochure

Format: Adobe Acrobat PDF file, (7.2 MB)

Kirium One product datasheet

Format: Adobe Acrobat PDF file, (98 KB)

Kirium One installation guide

Format: Adobe Acrobat PDF file, (4.1 MB)

Kirium One product codes

Format: Adobe Acrobat PDF file, (46 KB)

kirium one side product variant dimensions drawing lighting W573px
Dimensions (mm):
  • A 589
  • B 80
Weight (kg):
3.8-4.6
Windage (m2):
0.026
kirium one back product variant dimensions drawing lighting W573px2
Dimensions (mm):
  • A 188
Weight (kg):
3.8-4.6
Windage (m2):
0.026
kirium one underneath product variant dimensions drawing lighting W573px
Dimensions (mm):
  • A 410
Weight (kg):
3.8-4.6
Windage (m2):
0.026
