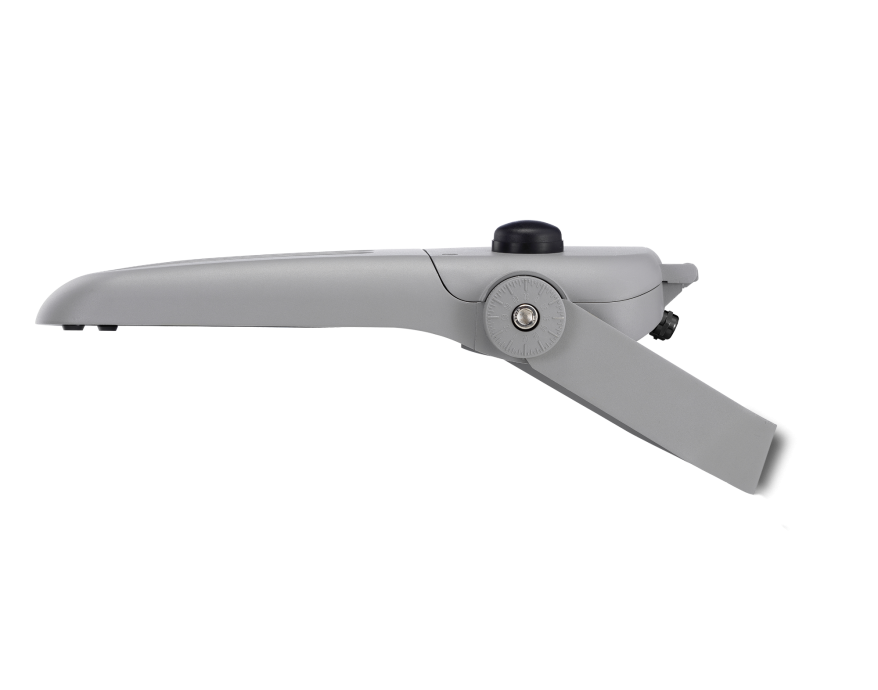

Sabre Flood Floodlight Product image 2000x1572px Alt2

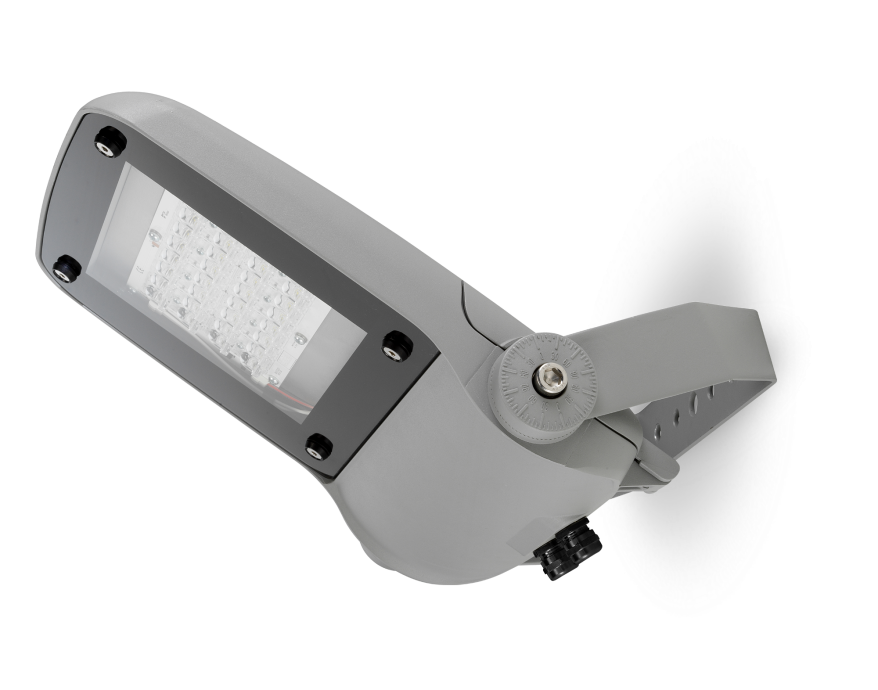

Sabre Flood Floodlight Product image 2000x1572px

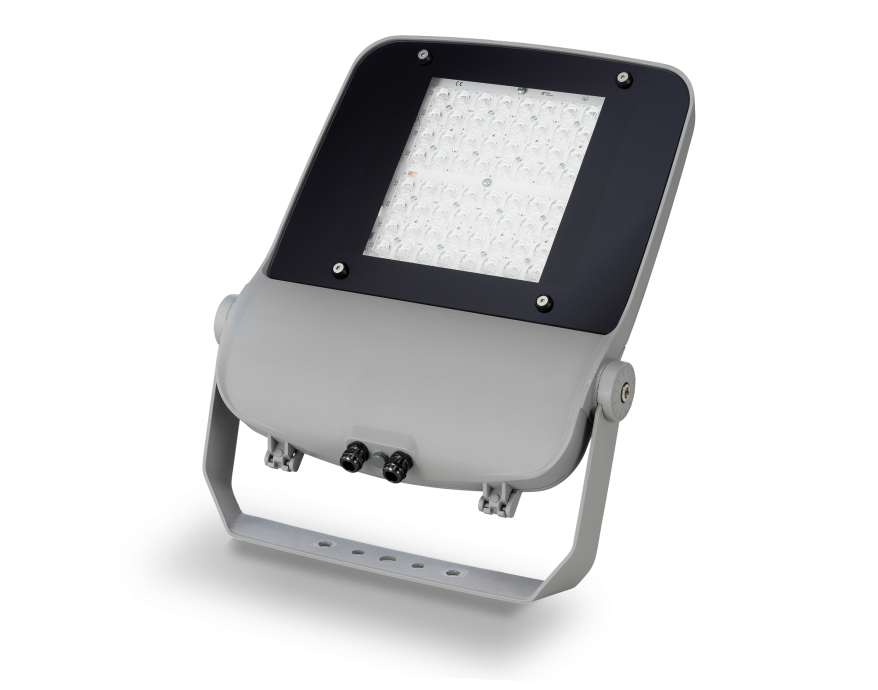

Sabre Flood Floodlight Product image 2000x1572px Alt1
Sabre
Sabre
/ Sabre
Sabre brochure
Sabre Product Performance Matrix
Sabre 1 product datasheet
Sabre 2 product datasheet
Sabre 3 product datasheet
Sabre product codes
Sabre LED installation instructions
Sabre LED photometry
Sabre BIM files
Contact

Performance flood

A slim, low glare range of floods with integral CMS and market-leading efficacy. Sabre's ultra-efficient optics offer flexibility across a wide range of applications, from general purpose area illumination to architectural grazing.

  • Fast payback - reduce energy by more than 65%
  • Choice of control options, including integral CMS and bluetooth
  • 3 sizes with lumen outputs up to 24,300lm

Request a quote

Options in this range

Name Mounting Height (m) Lumen Range (lumens) LED qty Colour Temperature (CCT)
Sabre 1 4-6 1600-5900 16 2700K, 3000K, 4000K
Sabre 2 5-8 2350-12300 24, 32 2700K, 3000K, 4000K
Sabre 3 8+ 6100-24300 64 2700K, 3000K, 4000K

Check out our brochure

Contact us to find out more

Three sizes

Sabre comes in three sizes, offering one for one replacement up to 250W

  • Sabre 1 (16 LED)
  • Sabre 2 (24/32 LED)
  • Sabre 3 (64 LED)

Mounting options

Sabre's flexible mounting options, suitable for exterior or interior applications:

  • Wall mounted (stirrup bracket)
  • Surface mounted (façade)
  • Column mounted (post top)

Optical performance

Performance optics

Choice of five high performance, application specific optical distributions - featuring Diamond+

Assymetric narrow optic B1 548x340px
Asymmetric - narrow
 Asymmetric narrow optic 548x340px
Asymmetric - medium
 Asymmetric wide optic 548x340px
Asymmetric - wide
 Symmetric optic 548x340px
Symmetric
Wide flood optic 548x340px
Wide flood

Integral CMS

From simple factory-set dimming to full CMS: add value to your luminaire through intelligent, connected sensors and control systems.

Sabre uniquely features integral CMS: for connected, Smart asset management and optimal flexibility. Control a single luminaire or group switch remotely.

Benefits
  • Reduced energy consumption
  • Reduced carbon footprint
  • Longer luminaire life
  • Lower capital, maintenance and energy costs

Optical control accessories

For projects that are environmentally sensitive or where a defined cut-off is required front and rear mechanical glare shields are available (pictured above) - preventing light spill. Please advise at time of quotation that this is a required option.

0% ULOR

The Upper Light Output Ratio of Sabre (the proportion of light that is emitted at or above the horizontal when a luminaire is mounted in its installed position), is 0% (at 0º inclination)

Standard colour

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid grey

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP66
IK rating:
IK09
Certifications:
UKCA, CE
Mounting Height (m):
4-8+
Applications:
Area lighting
Buildings
Rail
Car parks

Lighting

Light source:
High power LED
Lumen Range (lumens):
1600-24300
LED qty:
16-64
Distribution:
Asymmetric Narrow
Asymmetric Medium
Asymmetric Wide
Symmetric
Wide flood
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (4000K)
80Ra (2700K / 3000K)
Max efficacy (luminaire lumens):
up to 155lm/W
L80 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Controls:
Pre-programmed dimming
Part night photocell (Sabre 2 & 3 only)
Miniature photocell (Sabre 2 & 3 only)
NEMA (Sabre 2 & 3 only)
Zhaga (Sabre 2 & 3 only)
Integral CMS (Sabre 2 & 3 only)
Surge protection:
10kV

Mechanical and installation

Tilt / inclination:
-45° to 45° (5° increments)
Materials:
Body: Die-cast aluminium
Glazing: Glass
Seals: Silicone
Finish:
Textured polyester powder coat
Product colours:
RAL 7046 Mid grey
Operating temp (°C):
-25°C to +40°C
Mounting:
Stirrup Bracket
Post Top: Ø60-76mm

Downloads and dimensions

Sabre brochure

Format: Adobe Acrobat PDF file, (2.6 MB)

Download

Sabre Product Performance Matrix

Format: Adobe Acrobat PDF file, (128 KB)

Download

Sabre 1 product datasheet

Format: Adobe Acrobat PDF file, (98 KB)

Download

Sabre 2 product datasheet

Format: Adobe Acrobat PDF file, (107 KB)

Download

Sabre 3 product datasheet

Format: Adobe Acrobat PDF file, (118 KB)

Download

Sabre product codes

Format: Adobe Acrobat PDF file, (72 KB)

Download

Sabre LED installation instructions

Format: Adobe Acrobat PDF file, (736 KB)

Download

Sabre LED photometry

Format: ZIP compressed file, (2.2 MB)

Download

Sabre BIM files

Format: ZIP compressed file, (1.7 MB)

Download
Sabre 1 dimension drawing W573px
Dimensions (mm):
  • A 283
  • B 390
  • C 73
Weight (kg):
3.8
Windage (m2):
0.016
Sabre 2 dimension drawing W573px
Dimensions (mm):
  • A 386
  • B 488
  • C 81
Weight (kg):
7.8
Windage (m2):
0.029
Sabre 3 dimension drawing W573px
Dimensions (mm):
  • A 460
  • B 595
  • C 94
Weight (kg):
13.1
Windage (m2):
0.045
