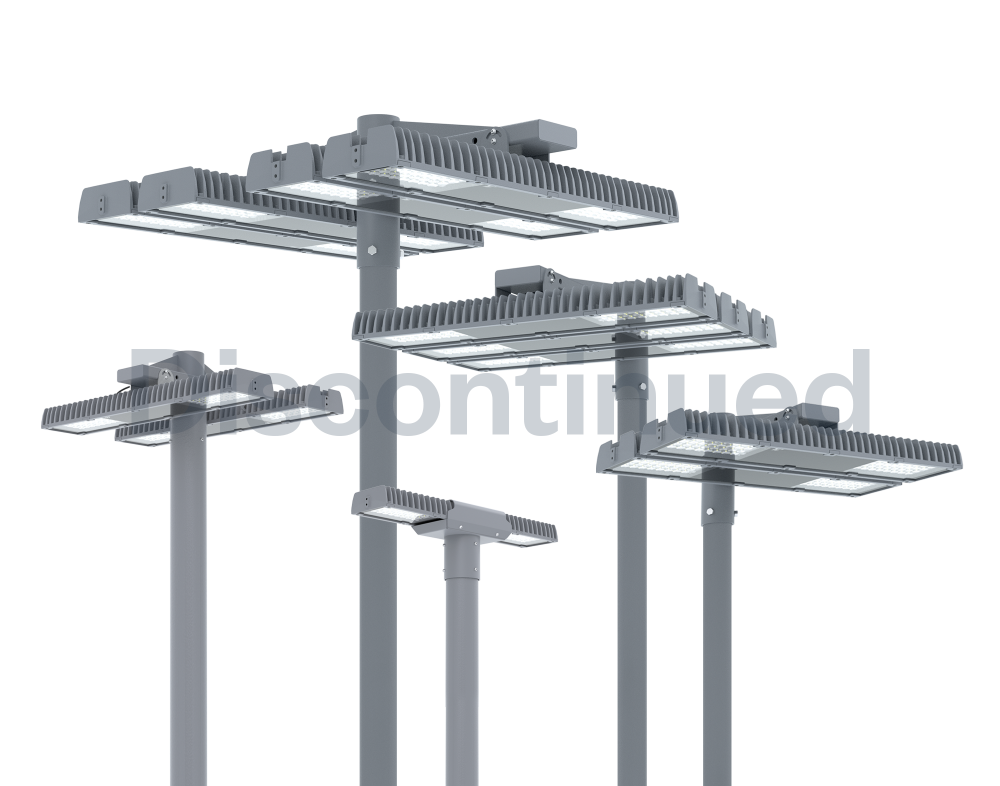

katana industrail product slider product image lighting 2000x1572px

Downloads

Katana Industrial brochure

Format: Adobe Acrobat PDF file, (1.7 MB)

Katana product codes

Format: Adobe Acrobat PDF file, (31 KB)

Katana Industrial installation instructions

Format: Adobe Acrobat PDF file, (11 MB)

Katana Industrial
Products
/ Katana Industrial
Katana Industrial brochure
Katana product codes
Katana Industrial installation instructions
Katana product datasheet
Contact

Large area lighting. Re-imagined.

For large areas, high output illumination without the need to compromise on design. The Katana lighting system offers
today’s creative designer is the ultimate in flexibility, form and function.

  • High-lumen output with 24 flexible optical solutions
  • Modular and flexible mounting
  • Low weight. Suitable for retrofit onto existing columns
  • Range of controls and smart city ready

Contact us

Products in this range

Post Top 1

Weight: 13kg

Windage: 0.01m2

Post Top 2

Weight: 30kg

Windage: 0.07m2

Post Top 4

Weight: 56kg

Windage: 0.12m2

Direct Top 2

Weight: 30kg

Windage: 0.07m2

Direct Top 3

Weight: 43kg

Windage: 0.09m2

Wall 1

Weight: 13kg

Wall 2

Weight: 26kg

Contact us to find out more

Katana Industrial

Diamond+ optics

An evolution of our award-winning and patented Diamond Optic® reflector technology, Diamond+ gives you the ability to create widely different lighting distributions from a single luminaire.

Ultimate flexibility

Katana modules can be individually adjusted for ultimate optical flexibility and multi-use scheme design. Optional obtrusive light shields can be installed to prevent upward light.

Cooling technology

Katana is designed with air vents between LED modules to facilitate airflow and manage thermal temperature. This benefits the luminaire's L90 lifetime estimate of 100,000 hours.

Powerful and efficient

With seven standard configurations and offering up to 130lm/w, you can save energy and costs in any application, making Katana the only large-area lighting system you’ll need.

More on Diamond+ Optics

Contact us

Our functional lighting

Check out our brochure

View our brochures

Standard Colours

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP67
IK rating:
IK09
Certifications:
CE
Mounting Height (m):
6-20
Applications:
High street & road lighting
Car parks
Rail
Area lighting
Buildings

Lighting

Light source:
High power LED
Lumen Range (lumens):
4639-87720
LED qty:
64-256
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra
Max efficacy (luminaire lumens):
Up to 130lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
NEMA photocell
CMS compatible
Sensor ready
Surge protection:
10kV
Driver:
Philips Xi Lite

Mechanical and installation

Tilt / inclination:
Each module individually adjustable (5° increments)
Materials:
Body: High pressure die-cast aluminum
Glazing: Low iron toughened glass
Bracketry: Galvanised steel
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 7035 Light grey
RAL 7046 Mid grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C

Downloads and dimensions

Katana Industrial brochure

Format: Adobe Acrobat PDF file, (1.7 MB)

Download

Katana product codes

Format: Adobe Acrobat PDF file, (31 KB)

Download

Katana Industrial installation instructions

Format: Adobe Acrobat PDF file, (11 MB)

Download

Katana product datasheet

Format: Adobe Acrobat PDF file, (123 KB)

Download
Katana Industrial Direct Post 2 Modules product dimension drawing W573px
Dimensions (mm):
  • A 570
  • B 860
  • C 311.5
Weight (kg):
30
Windage (m2):
0.07
Katana Industrial Direct Post 3 Modules product dimension drawing W573px
Dimensions (mm):
  • A 770
  • B 860
  • C 311.5
Weight (kg):
43
Windage (m2):
0.09
Katana Industrial Sigular Module product dimension drawing W573px
Dimensions (mm):
  • A 860
  • B 221
  • C 311.5
Weight (kg):
13
Windage (m2):
0.01
Katana Industrial Post Top 2 Modules product dimension drawing W573px
Dimensions (mm):
  • A 503
  • B 860
  • C 311.5
Weight (kg):
30
Windage (m2):
0.07
Katana Industrial Post Top 4 Modules product dimension drawing W573px
Dimensions (mm):
  • A 923
  • B 860
  • C 311.5
Weight (kg):
56
Windage (m2):
0.12
Katana Industrial Wall Mount 1 Module product dimension drawing W573px
Dimensions (mm):
  • A 221
  • B 860
  • C 160
Weight (kg):
13
Katana Industrial Wall Mount 2 Modules product dimension drawing W573px
Dimensions (mm):
  • A 421
  • B 860
  • C 195
Weight (kg):
26
