Kirium Bollard

Change view:

Kirium Bollard Product image 2000x1572px

Downloads

Kirium Bollard brochure

Format: Adobe Acrobat PDF file, (2.5 MB)

Kirium Bollard Product Performance Matrix

Format: Adobe Acrobat PDF file, (115 KB)

Kirium bollard 160 product datasheet

Format: Adobe Acrobat PDF file, (791 KB)

More views

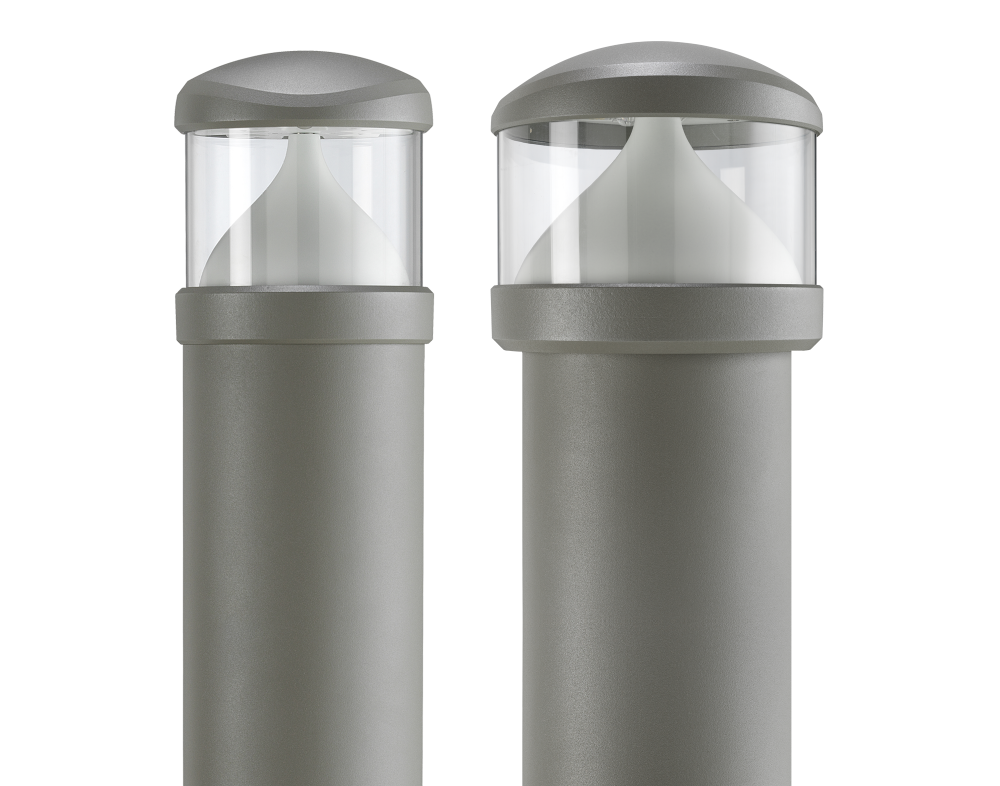

Kirium Bollard Product image 2000x1572px

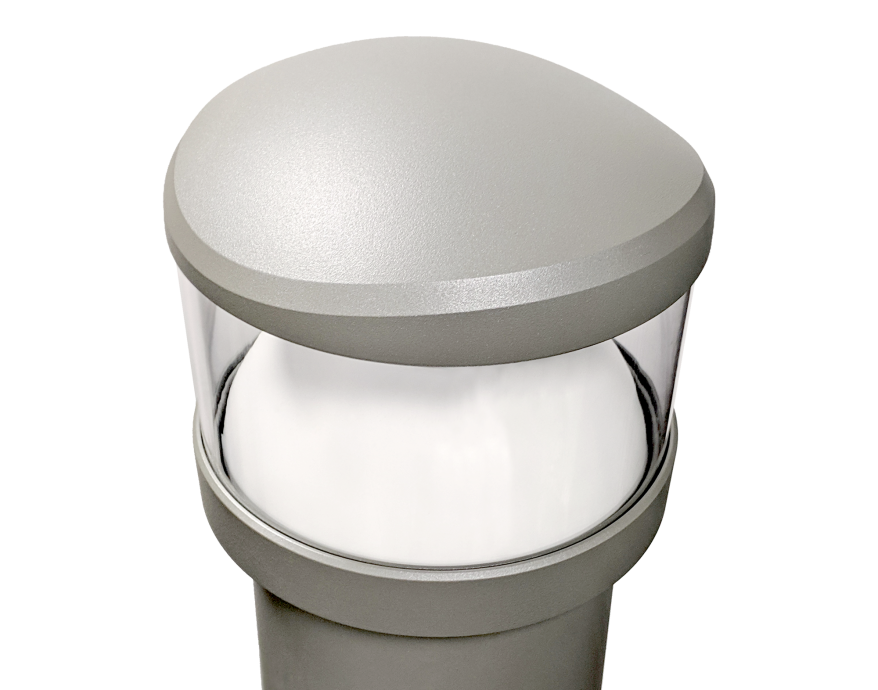

Kirium Bollard Curved Product image 2000x1572px

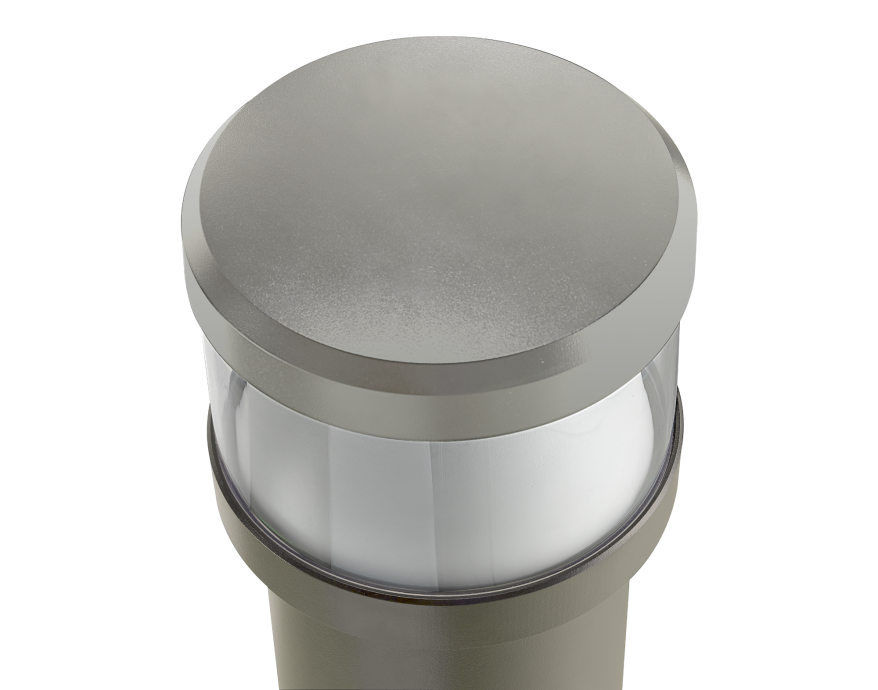

Kirium Bollard Angular Product image 2000x1572px
Kirium Bollard Product image 2000x1572px Alt1

Market-leading optical performance

A range of classically styled, vandal-resistant IK10 bollards with market-leading performance. For purpose illumination: promoting safe navigation through campuses, car parks and public spaces.

Complementary to our Kirium Pro range of street lighting and wall luminaires.

  • Smart City ready
  • Integral presence detector and emergency option available
  • GRP option available
  • BREEAM compliant

Request a quote

Options in this range

Name Lumen Range (lumens) Power Range LED qty Colour Temperature (CCT) Dimensions (mm)
Kirium Bollard 160 1200 12 3, 6 2700K, 3000K, 4000K Head diameter: 162, Base diameter: 152, Height: 1000
Kirium Bollard 200 2000 20 8 3000K, 4000K Head diameter: 208, Base diameter: 168, Height: 1000

Check out our brochure

Contact us to find out more



Two styles

Kirium bollard offers two different aesthetic styles:

  • Curved
  • Angular
  • Kirium Bollard Style 1 Curved image 150x120px

    Curved

  • Kirium Bollard Style 2 Angular image 150x120px

    Angular

Two diameters

Kirium bollard comes in two diameters, suitable for a range of applications:

  • 160mm
  • 200mm

160 vs 200: the differences

160

  • 3 or 6 LEDs
  • Best in class uniformity
  • Even spread of light with no visible hotspot
  • 2 distributions: Asymmetric and Symmetric

200

  • 8 LEDs
  • Performance spread for large area illumination
  • Provides optimal spacing for pathways up to 3m in width
  • 4 distributions: Asymmetric - narrow, medium and wide or Symmetric

Optical performance


Kirium 160

Class leading uniformity, with no visible hotspot.

Asymmetric medium optic Kirium bollard 160 548x340px
Asymmetric - medium
 Asymmetric medium optic with backshield Kirium bollard 160 548x340px
Asymmetric - with backshield
 Symmetric optic Kirium bollard 160 548x340px
Symmetric

Kirium 200

Performance spread for area illumination, providing optimal spacing for pathways up to 3m in width.

 Asymmetric narrow optic 548x340px  Asymmetric medium optic 548x340px
Asymmetric - narrow Asymmetric - medium
Asymmetric wide optic 548x340px   Symmetric optic 548x340px
Asymmetric - wide Symmetric

Example lighting levels

Our results at 12m spacing, on a 3m wide path - designed to achieve P lighting classes.

  Lighting Class P2
  Path width 3m
  Eav 10.0  - 15.0lx
  Emin 2.0lx

Features




A family solution

Kirium Pro range of street lighting, wall luminaires and bollards: a complete family solution for your project needs.

Content banner image Kirium family solution 2340x800px

Detailed Specification

Product specification

Electrical Class:
I, II
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Car parks
Public realm
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
1200-2000
LED qty:
3-8
L80 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
110V, 220-240V
Drive Current Range:
200mA-700mA
Dimming:
1-10V, DALI
Controls:
Pre-programmed dimming
DALI
1-10V
Integral CMS
Emergency battery backup
Presence detector (200 diameter only)

Mechanical and installation

Materials:
Base: Galvanised steel or GRP Head: Die-cast aluminium
Plascoat finish (GRP option)
Glazing: Polycarbonate
Seals: Silicone
Finish:
Textured polyester powder coat
Painted (GRP option)
Product colours:
RAL 7035 Light grey
RAL 7046 Mid grey
RAL 9005 Black
Other RAL colours on request
Mounting:
Root mounted
Flange plate
Flange Base

Downloads and dimensions

Kirium Bollard brochure

Format: Adobe Acrobat PDF file, (2.5 MB)

Kirium Bollard Product Performance Matrix

Format: Adobe Acrobat PDF file, (115 KB)

Kirium bollard 160 product datasheet

Format: Adobe Acrobat PDF file, (791 KB)

Kirium bollard 200 product datasheet

Format: Adobe Acrobat PDF file, (78 KB)

Kirium Bollard GRP Datasheet

Format: Adobe Acrobat PDF file, (55 KB)

Kirium Bollard product codes

Format: Adobe Acrobat PDF file, (69 KB)

Kirium Bollard Installation Guide

Format: Adobe Acrobat PDF file, (792 KB)

Kirium Bollard photometry

Format: ZIP compressed file, (616 KB)

Kirium Bollard BIM files

Format: ZIP compressed file, (4.5 MB)

Kirium Bollard 160 Angular dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 162
  • Ø C 152
  • D 300
Weight (kg):
19.6 (flange), 23.6 (rooted)
Kirium Bollard 160 Curved dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 162
  • Ø C 152
  • D 300
Weight (kg):
19.6 (flange), 23.6 (rooted)
Kirium Bollard 200 Angular dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 208
  • Ø C 168
  • D 300
Weight (kg):
20.5 (flange), 24.5 (rooted)
Kirium Bollard 200 Curved dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 208
  • Ø C 168
  • D 300
Weight (kg):
20.5 (flange), 24.5 (rooted)

Standard Colours

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light Grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request
