Family of architectural luminaires

The Pharola range is a versatile, virtually maintenance-free family of architectural LED luminaires, available as a bollard or wall bracket. The Pharola family consists of the original Pharola bollard, Pharola Max bollard, Pharola DS, which is possibly the slimmest LED bollard on the market, and the Pharola Wall.

  • Three styles of bollards available
  • Pharola Wall available in two contemporary styles

Request a quote

Products in this range

(4 in total)

Change view:

Name Lumen Range (lumens) Power Range LED qty
Pharola 494-785 12 4
Pharola DS 1730 20 9
Pharola Max 920-1560 20 9
Pharola Wall 365 15 4
Contact us about this product
494-785
12
4
1730
20
9
920-1560
20
9
365
15
4

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Downloads and resources

Downloads

Pharola photometry

Format: ZIP compressed file, (16 KB)

Pharola DS photometry

Format: ZIP compressed file, (4.2 KB)

Pharola Max photometry

Format: ZIP compressed file, (38 KB)

Pharola Wall photometry

Format: ZIP compressed file, (7 KB)

Pharola product codes

Format: Adobe Acrobat PDF file, (75 KB)

Dimensions

Pharola 600 product dimension drawing W573px
Dimensions (mm):
  • A 600
  • Ø B 89
  • C 300
Weight (kg):
9
Pharola 1000 product dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 89
  • C 500
Weight (kg):
13
Pharola 2000 product dimension drawing W573px
Dimensions (mm):
  • A 2200
  • Ø B 89
  • C 500
Weight (kg):
21
Pharola DS 1000 product dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 89
  • C 500
Weight (kg):
15
Pharola DS 2200 product dimension drawing W573px
Dimensions (mm):
  • A 2200
  • Ø B 89
  • C 500
Weight (kg):
23
Pharola Max 1 900 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 900
  • C 150
  • D 300
Weight (kg):
17

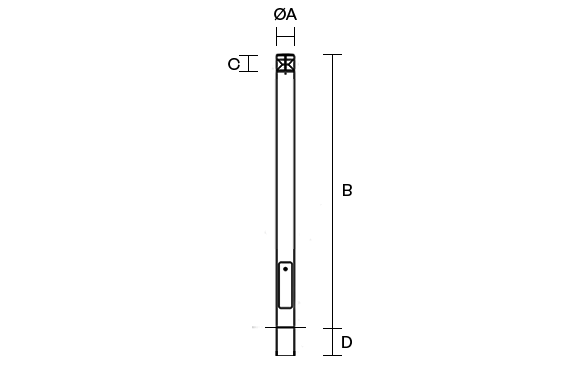

Pharola Max 1 3000 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 3000
  • C 150
  • D 300
Weight (kg):
32
Pharola Max 2 1000 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 1000
  • C 250
  • D 300
Weight (kg):
18
Pharola Max 2 3000 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 3000
  • C 250
  • D 300
Weight (kg):
33

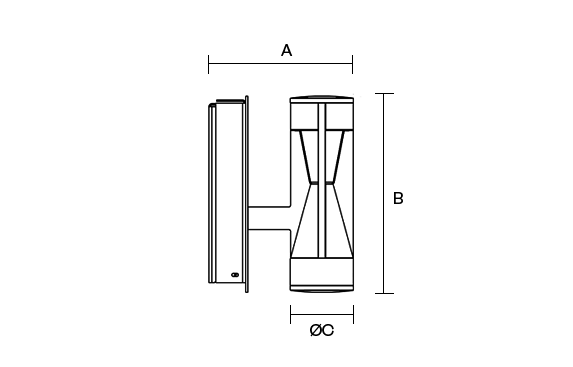

Pharola Wall Flat product dimension drawing W573px
Dimensions (mm):
  • A 210
  • B 275
  • Ø C 89
Weight (kg):
7.3
Pharola Wall Angled product dimension drawing W573px
Dimensions (mm):
  • A 300
  • B 600
  • C 178
Weight (kg):
8
