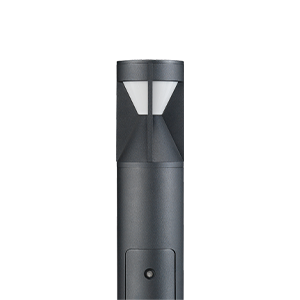

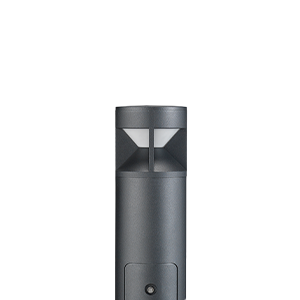

Illumination for sophisticated landscapes



Pharola Max offers specifiers an increased diameter on the original luminaire, styled to blend into a wide range of urban environments effortlessly while providing a high-performance white light, and promoting a feeling of safety after dark..

Product features

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE
Applications:
Public realm
Paths & walkways
Rail

Lighting

Light source:
High power LED
Lumen Range (lumens):
1550 lm
Power Range:
20 W
LED qty:
9
Distribution:
Symmetric
180° Backshield (on request)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
>70Ra

Power and control

Voltage:
220 - 240V
Drive Current Range:
700mA
Controls:
Remote switch

Mechanical and installation

Materials:
Head: Die-cast aluminium
Body: Galvanised steel
Seals: Silicone
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Operating temp (°C):
-20°C to +40°C
Mounting:
Root mounted
Flange plate

Dimensions

Pharola Max 2 1000 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 1000
  • C 250
  • D 300
Weight (kg):
18
Pharola Max 2 3000 product dimension drawing W573px
Dimensions (mm):
  • Ø A 152
  • B 3000
  • C 250
  • D 300
Weight (kg):
33
