Iffley

Change view:

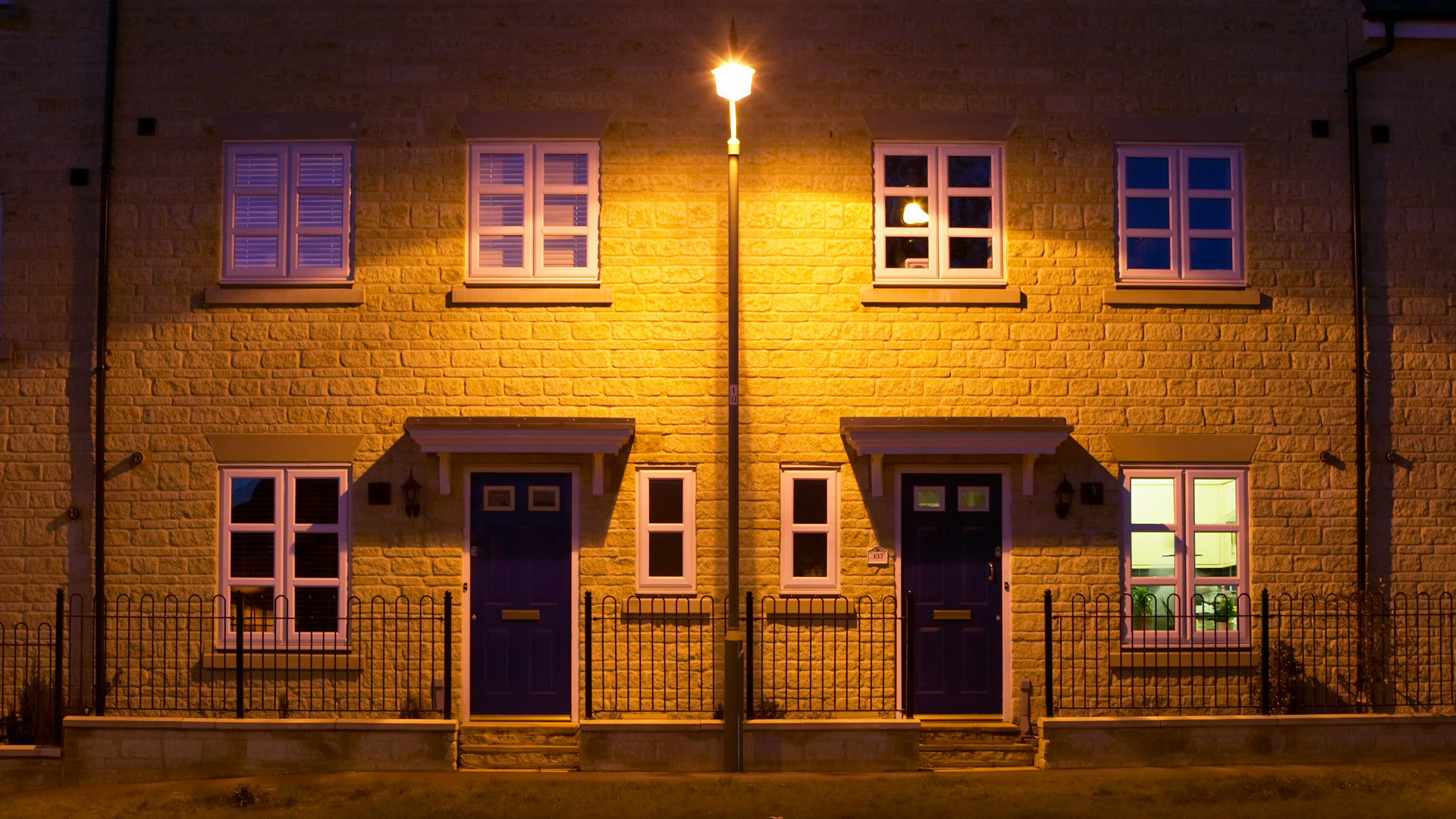

Iffley Heritage Street Lighting Location image 1920x1080px

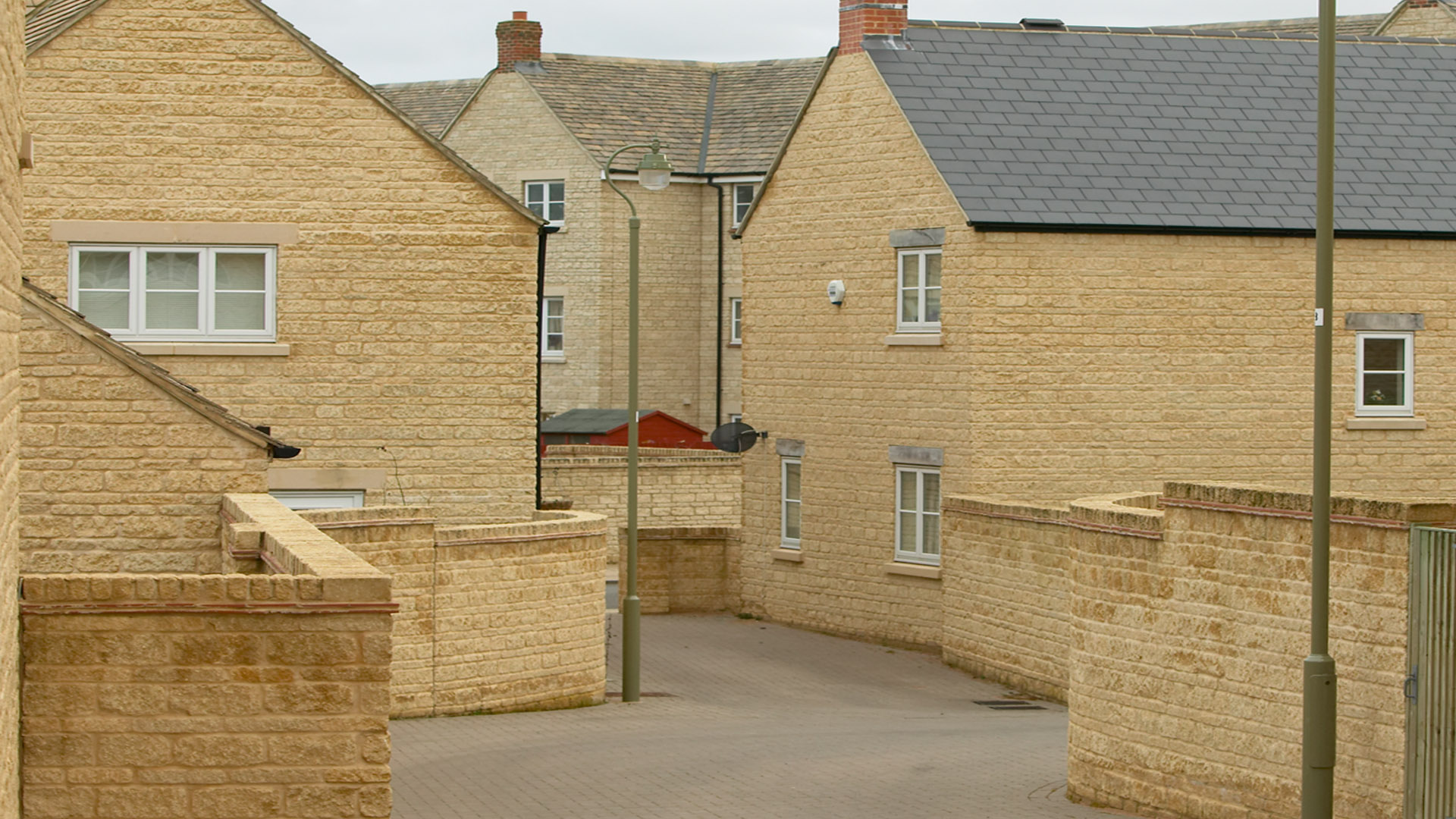

Iffley Heritage Street Lighting Location image 1920x1080px Alt2
Iffley Heritage Street Lighting Product image 2000x1572px

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Iffley photometry

Format: ZIP compressed file, (4.2 MB)

More views

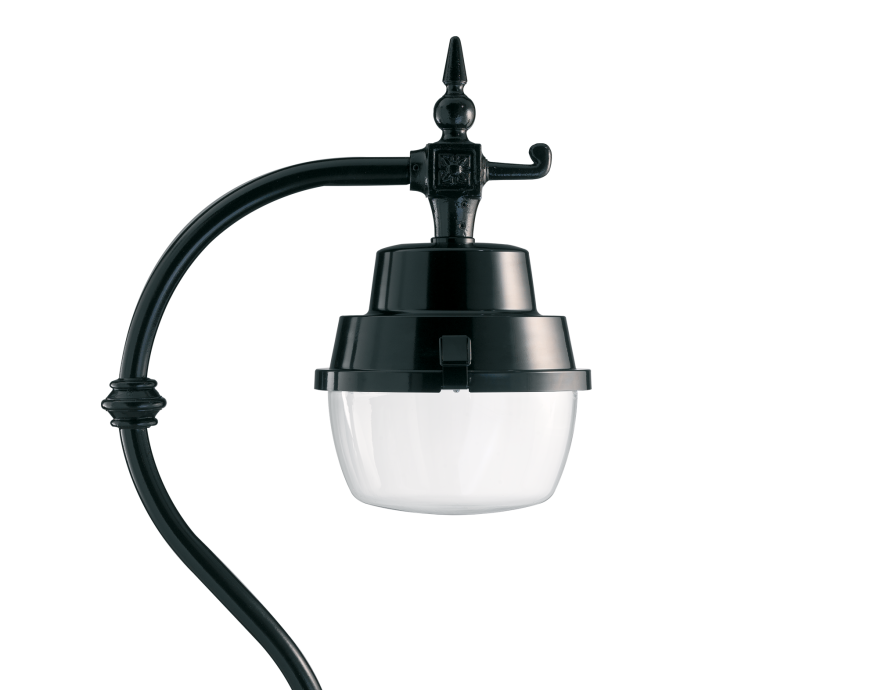

Iffley Heritage Street Lighting Product image 2000x1572px

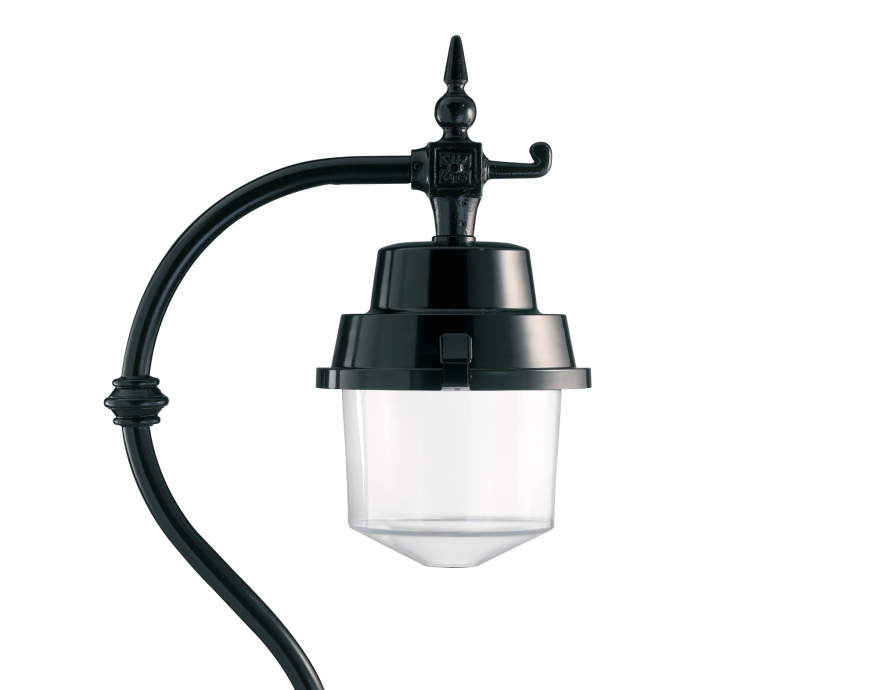

Iffley Straight Glazing Bowl Heritage Street Lighting Product image 2000x1572px

Visualising traditional style in a modern setting

Iffley's design is our rendering of the post-war era, modified to create an exceptionally effective luminaire that's at home in rural or suburban settings.

  • Recommended for mounting at 4-6 metres
  • Available in both lamped light sources or LED
  • Exceptional ease of maintenance via stainless steel over-centre latches

Request a quote

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 1546-6252 12-55 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 3526-8337 22-55 2700K, 3000K, 4000K
Comfort CoB Chip on Board (CoB) Glass bowl refractor 953-3811 8-40 2700K, 3000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K
CosmoPolis Lamp Diamond Optic® 45, 60
SON-T Lamp Diamond Optic® 50, 70
CDO-TT Lamp Diamond Optic® 50, 70

Pendant mounting options


 Offered with either a threaded entry or our Easy-fit™ entry.

LED Light engines

Designed to fit effortlessly within the majority of our exterior lighting luminaires, the LED Light Engine is available in new luminaires or as a retrofit option.

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
953-8337
LED qty:
1-16

Power and control

Controls:
Miniature photocell
Part-night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Pendant Easy-fit™: Ø42.4mm
Pendant Threaded: 1" BSP

Downloads and dimensions

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Iffley photometry

Format: ZIP compressed file, (4.2 MB)

Iffley product codes

Format: Adobe Acrobat PDF file, (41 KB)

Iffley product dimension drawing W573px
Dimensions (mm):
  • A 320
  • Ø B 324
Weight (kg):
4.9
Windage (m2):
0.09
