Ely
Specification
Dimensions
Downloads (12)
Enquire now

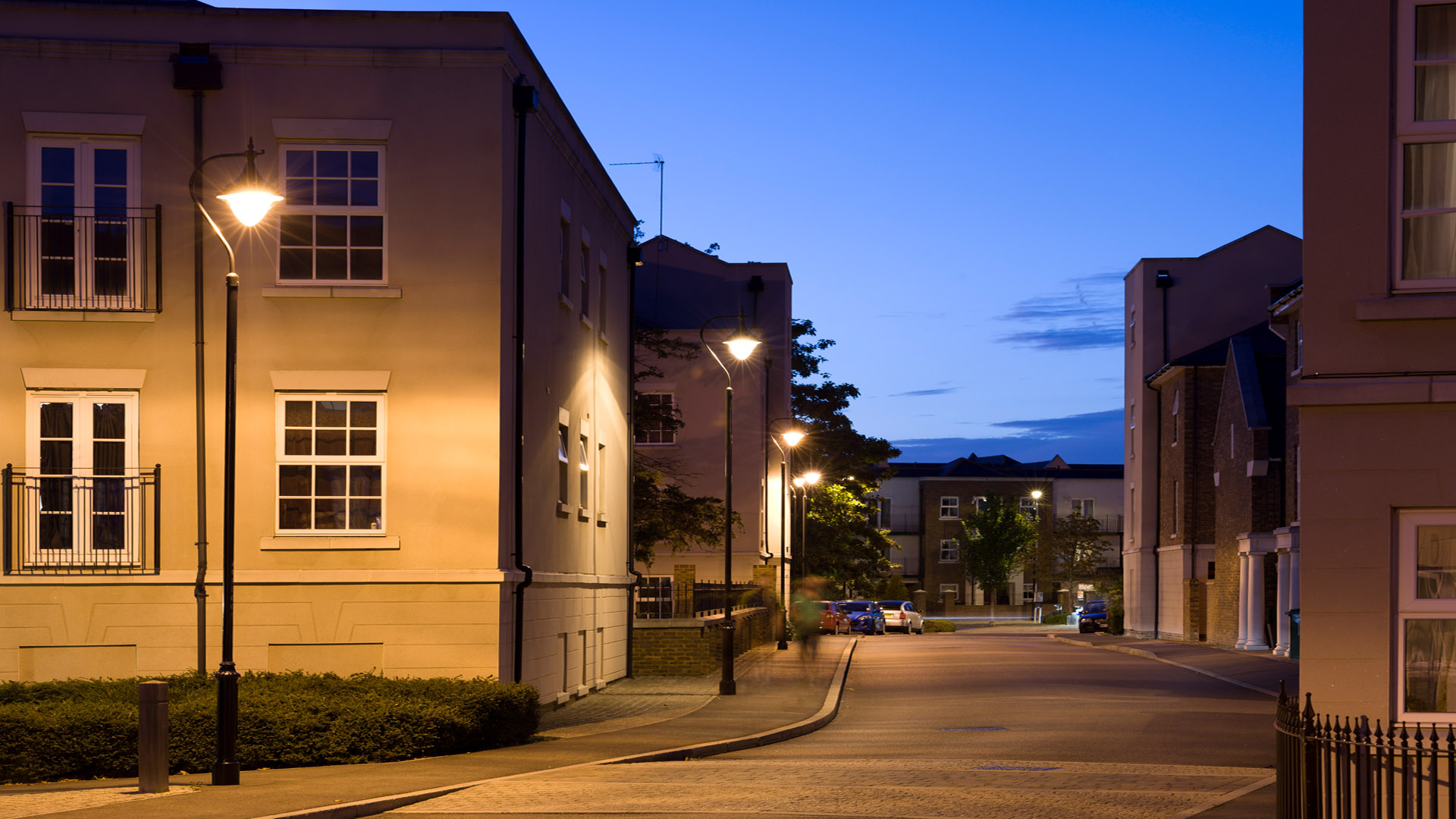

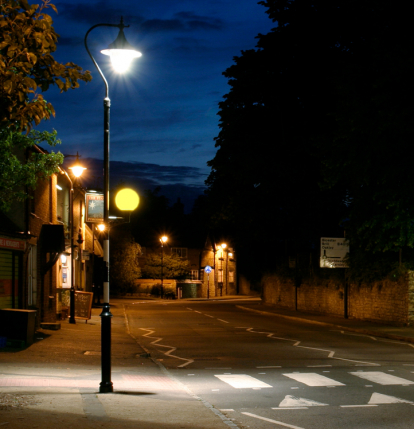

Ely Heritage Street Lighting Product image 2000x1572px Alt1

A contemporary classic



A traditionally proportioned lantern with a clean profile and elegant canopy design, Ely is designed
to sit comfortably within a broad range of architectural locations and applications.

Product features

Classic design, modern technology

Advances in LED technology mean that in addition to higher quality light, you can also reduce costs and make greater energy sayings.

U bracket entry

Ely B and C lanterns can be specified with a teardrop U bracket mounting option designed to mirror the shape of Ely's glazing bowl.

Easy-fit™

Our Easy-Fit™ entry simplifies alignment and eliminates the problem of twisted cabling associated with threaded entries.

Diamond+ Optics

Ely is available with a wide range of optical distributions for ultimate flexibility while ensuring light is only placed where needed.

Products in this range

Ely C



Lumen Output 1,200 - 6,900lm
 Power 7 - 52W
 Weight 5.5kg
 Windage 0.10m2

Ely B



Lumen Output 1,200 - 12,500lm
 Power 7 - 81W
 Weight 8.5kg
 Windage 0.14m2

Ely A



Lumen Output 4,300 - 20,700lm
 Power 23 - 141W
 Weight 11.5kg
 Windage 0.17m2

Lumen output and power values based on Performance LED data

dww website banner dark sky ely ds

Ely DS

DarkSky Approved lighting designed to combat
light pollution and protect the night sky.



View Ely DS

Heritage LED light engines

Designed to fit effortlessly within the majority of our exterior lighting luminaires, the LED Light Engine is available in new luminaires or as a retrofit option.

Performance LED

Best for applications where performance and flexibility are key

Performance CoB

Best for applications which require a single, high performance light source

Comfort CoB®

Best for applications where a more traditional appearance is needed

Gas effect

Best for applications that demand the ultimate authentic heritage aesthetic

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK08
Certifications:
UKCA, CE
Mounting Height (m):
3 - 10 m
Applications:
Public realm
Roads
Footpaths
Car parks
Rail

Lighting

Light source:
Performance LED, Performance CoB, Comfort CoB
Lumen Range (lumens):
1,200 - 20,700 lm
Power Range:
7 - 141 W
LED qty:
8 - 64
Distribution:
Performance LED: 14 Diamond+ Optics
Performance CoB: 4 Optics
Comfort CoB: 1 Optic
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
70Ra / 80Ra (light source dependant)
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Controls:
Miniature photocell
Part-night switching
Pre-programmed dimming
Zhaga Book 18 socket
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Marine-grade coating
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Mounting:
Pendant
U bracket
Wall bracket

Dimensions

Ely A product dimension drawing W573px
Dimensions (mm):
  • A 638
  • Ø B 670
Weight (kg):
11.5
Windage (m2):
0.17
Ely B product dimension drawing W573px
Dimensions (mm):
  • A 575
  • Ø B 585
Weight (kg):
8.5
Windage (m2):
0.14
Ely C product dimension drawing W573px
Dimensions (mm):
  • A 489
  • Ø B 480
Weight (kg):
5.5
Windage (m2):
0.1
