Ren

Change view:

Ren Bollard Product image 2000x1572px

Downloads

Ren brochure

Format: Adobe Acrobat PDF file, (3 MB)

Ren photometry

Format: ZIP compressed file, (36 KB)

Ren product codes

Format: Adobe Acrobat PDF file, (23 KB)

More views

Ren Bollard Product image 2000x1572px
Ren Bollards Bollard Product image 2000x1572px
Ren Waymarkers Bollard Product image 2000x1572px
Ren
Ren
/ Ren
Ren brochure
Ren photometry
Ren product codes
Contact

Discretely proportioned, yet deceptively powerful

A sleek and sophisticated range of bollards and waymarkers, Ren offers functional lighting for wayfinding alongside comfortable, ambient lighting for enhanced vertical illumination. Defined by clean lines and performance, Ren comes in two widths and an array of heights to suit your application.

  • Unique optical system
  • Performance and Performance Plus lighting distributions
  • 2700-4000K

Product Selector

Dimensions (mm)

Choose

Options in this range

Name Light source Lumen Range (lumens) Power Range
Ren 90 Performance High power LED 160 2
Ren 90 Performance Plus High power and mid power LED combination 525 8
Ren 160 Performance High power LED 160 2
Ren 160 Performance Plus High power and mid power LED combination 525 8

Request a quote

Download brochure

Two widths

Ren comes in two widths, suitable for a range of applications:

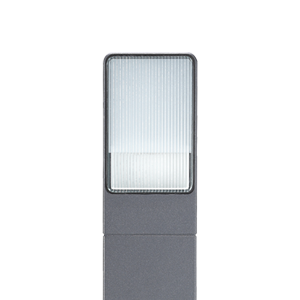

  • 90mm

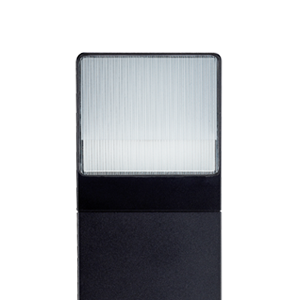

  • 160mm

Mounting heights

Ren's flexible range of mounting heights, in 3 sizes:

  • 1000mm
  • 600mm
  • 400mm

Request a demo

Performance vs Performance Plus

Despite its compact dimensions, Ren offers impressive lighting performance with the ability to achieve P5 lighting classes at a 6m spacing (on a 2m wide pathway). Choose from Performance or Performance Plus lighting distributions.

Performance

Provides functional illumination and waymarking.

Total luminaire lumens: 160lm (2W)

Performance Plus

Provides the same functional illumination and waymarking as the performance lighting but with the addition of improved volumetric vertical illumination for facial recognition and increased ambient lighting.

Total luminaire lumens: 525lm (8W)

Design features

Reeded diffusing glass

Improves lateral distribution.

High quality design

Sustainable, high pressure die cast aluminium body.

Discrete fixing

Lighting distributions

Performance and Performance Plus available.

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

Corten Brown colour swatch 548x548px

Corten Brown



To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Lumen Range (lumens):
160-525
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80Ra

Power and control

Voltage:
240V

Mechanical and installation

Materials:
Base: Extruded aluminium
Head: Die-cast aluminium
Glazing: Reeded toughened glass
Reflector: Optical grade polycarbonate
Finish:
Textured polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Mounting:
Root mounted
Flange plate
Bolt-on root

Downloads and resources

Downloads

Ren brochure

Format: Adobe Acrobat PDF file, (3 MB)

Download

Ren photometry

Format: ZIP compressed file, (36 KB)

Download

Ren product codes

Format: Adobe Acrobat PDF file, (23 KB)

Download

Dimensions

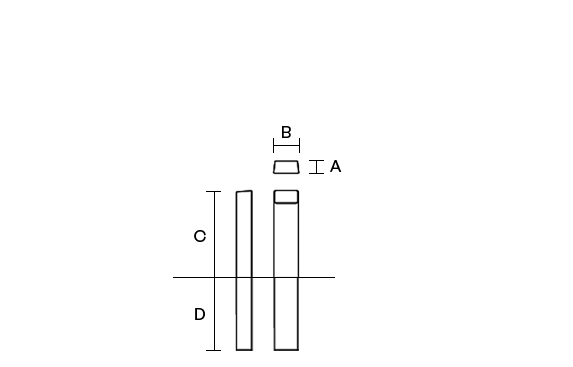

Ren 90 400 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 90
  • C 400
  • D 300
Weight (kg):
3.5

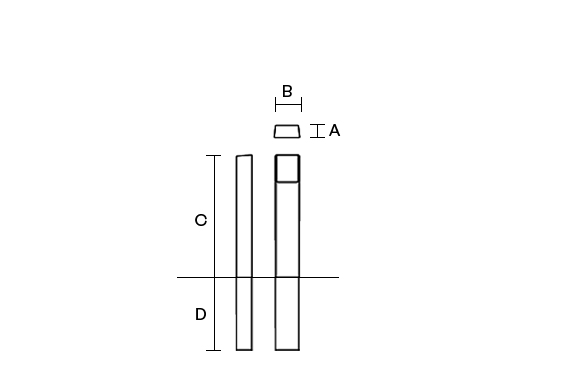

Ren 90 600 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 90
  • C 600
  • D 300
Weight (kg):
3.75

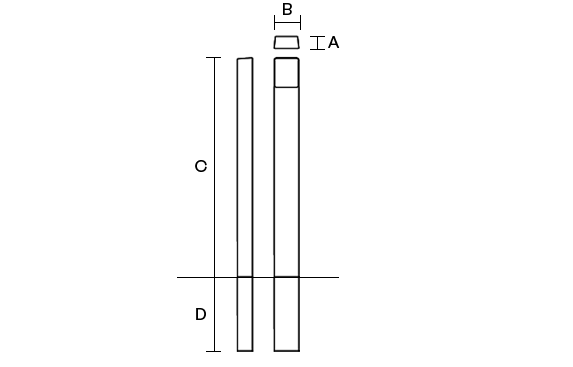

Ren 90 1000 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 90
  • C 1000
  • D 300
Weight (kg):
4

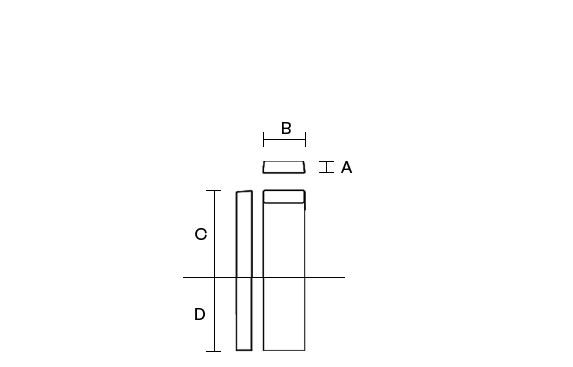

Ren 160 400 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 160
  • C 400
  • D 300
Weight (kg):
4.5

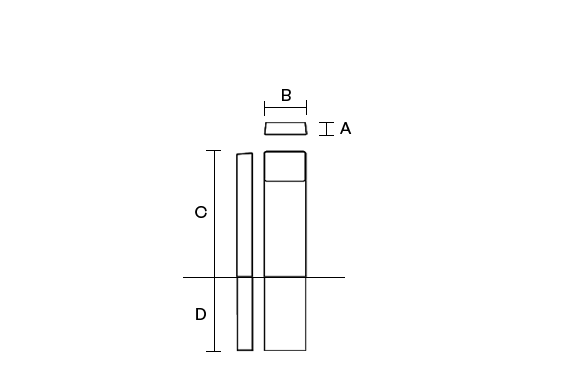

Ren 160 600 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 160
  • C 600
  • D 300
Weight (kg):
4.75

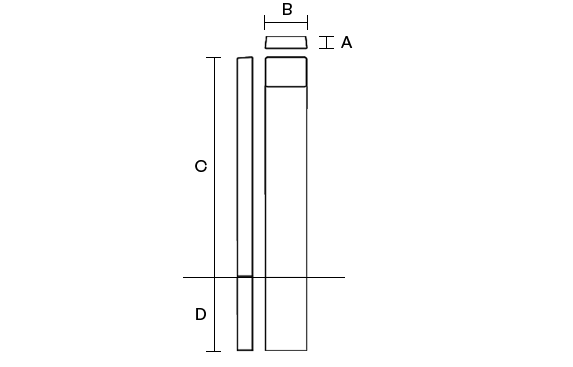

Ren 160 1000 Bollard dimension drawing W573px
Dimensions (mm):
  • A 55
  • B 160
  • C 1000
  • D 300
Weight (kg):
5
