Downloads
Trebem photometry
Format: ZIP compressed file, (6.6 KB)
Trebem Installation Instructions
Format: Adobe Acrobat PDF file, (202 KB)
More views

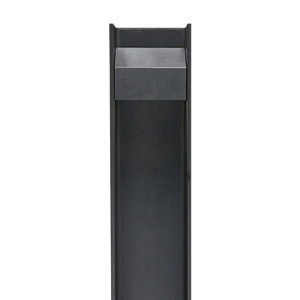

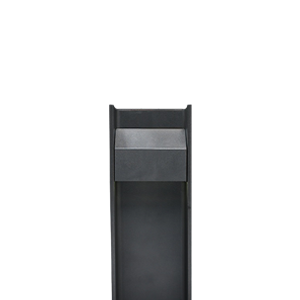

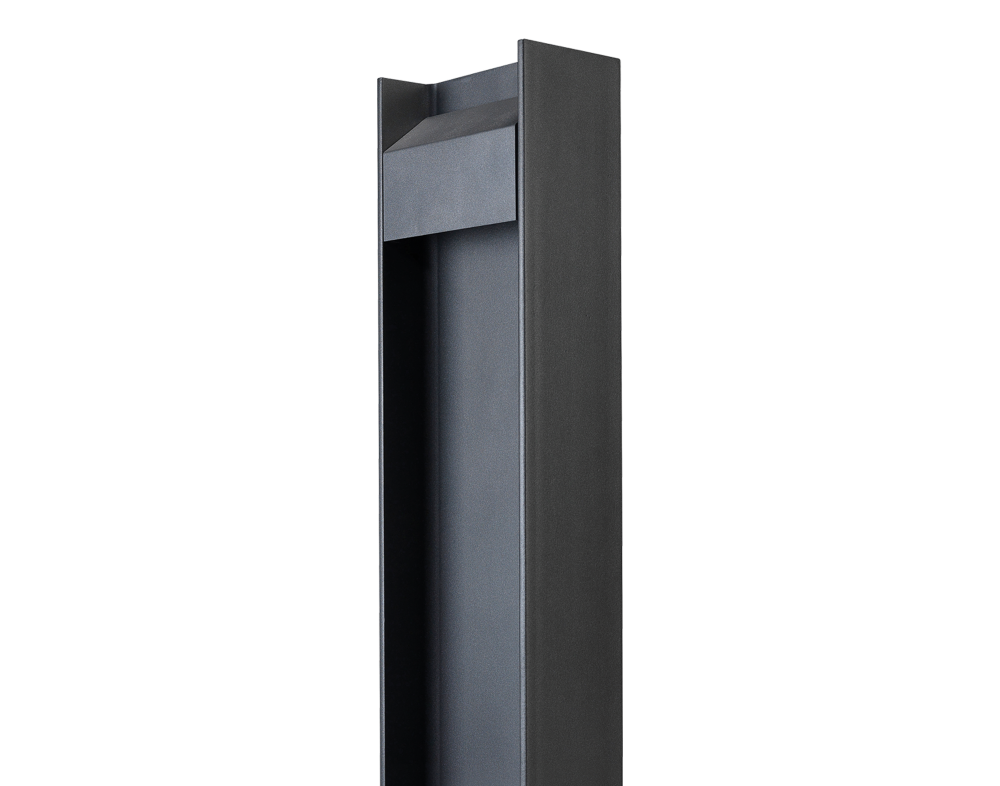

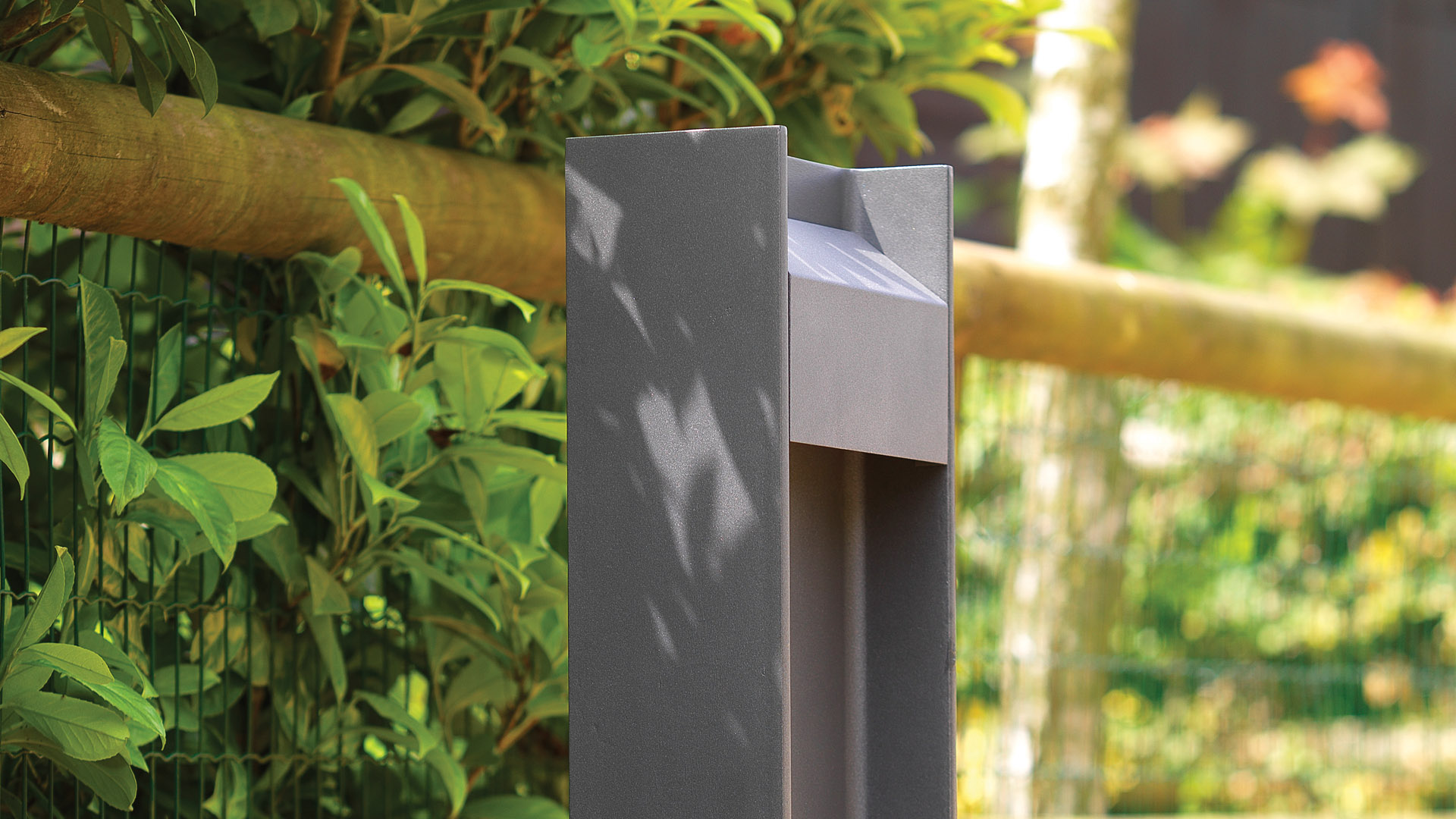

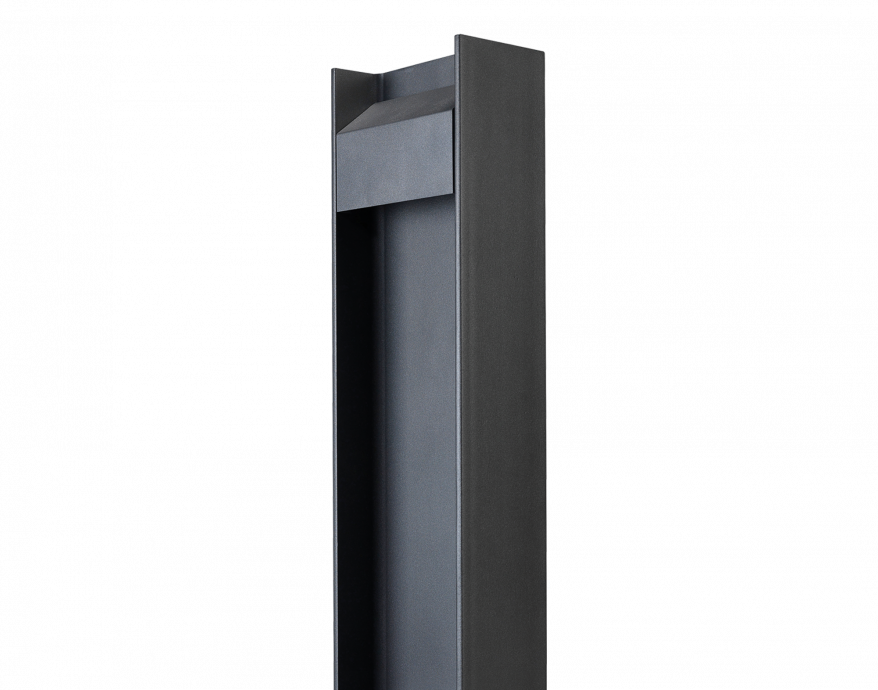

A simple, robust i-beam bollard to suit many architectural applications. Fabricated from steel with root or flange plate mounting.
Request a quote
Request a quote
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Lighting
Light source:
Performance LED Array
LED qty:
3, 6 (for a 2 way)
Distribution:
Symmetric
Colour Temperature (CCT):
3000K
4000K
6000K
4000K
6000K
Colour rendering (CRI):
70Ra
Power and control
Voltage:
220-240V
Mechanical and installation
Materials:
Body: Stainless steel
Finish:
Two-pack acrylic wet spray-paint
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Root mounted
Flange plate
Flange plate
Downloads and dimensions
Trebem photometry
Format: ZIP compressed file, (6.6 KB)
Trebem installation instructions
Format: Adobe Acrobat PDF file, (2.5 MB)
Dimensions (mm):
- A 260
- B 1000
- C 150
Weight (kg):
35
35
Dimensions (mm):
- A 260
- B 2200
- C 150
Weight (kg):
75
75
