Kirium Pro Mini

Change view:

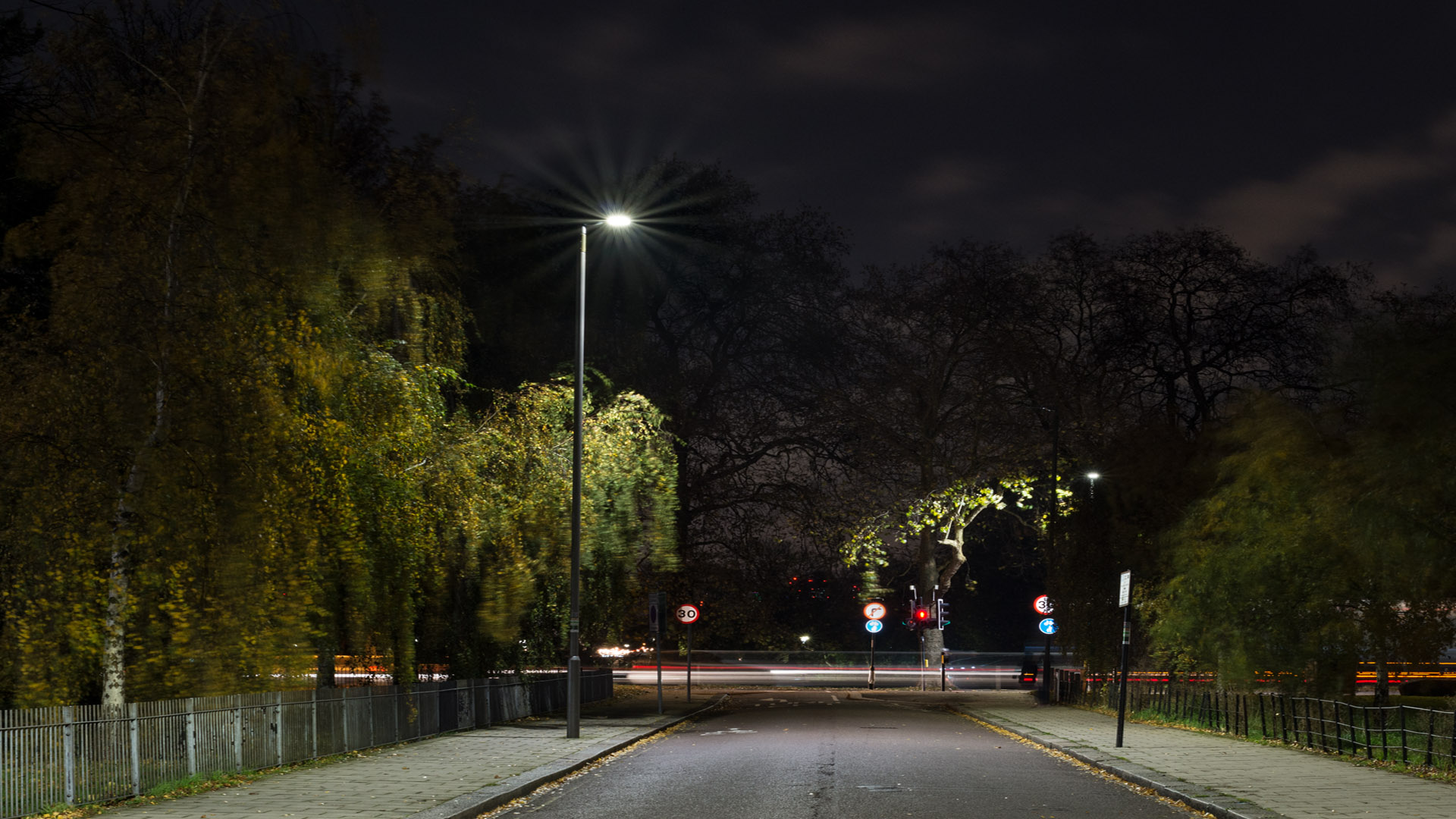

Kirium Pro Mini Street Lighting Location image 1920x1080px

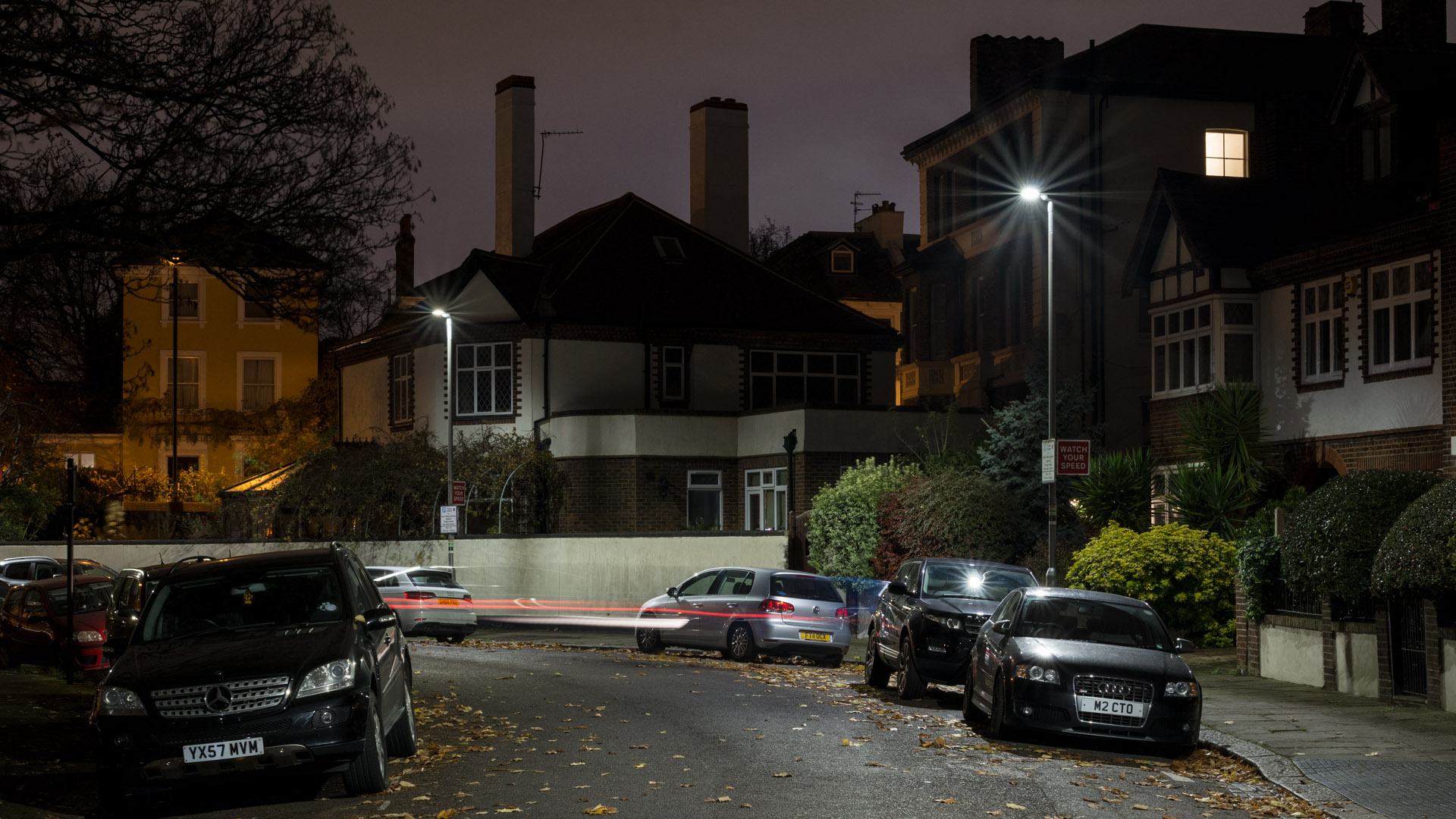

Kirium Pro Mini Street Lighting Location image 1920x1080px Alt1

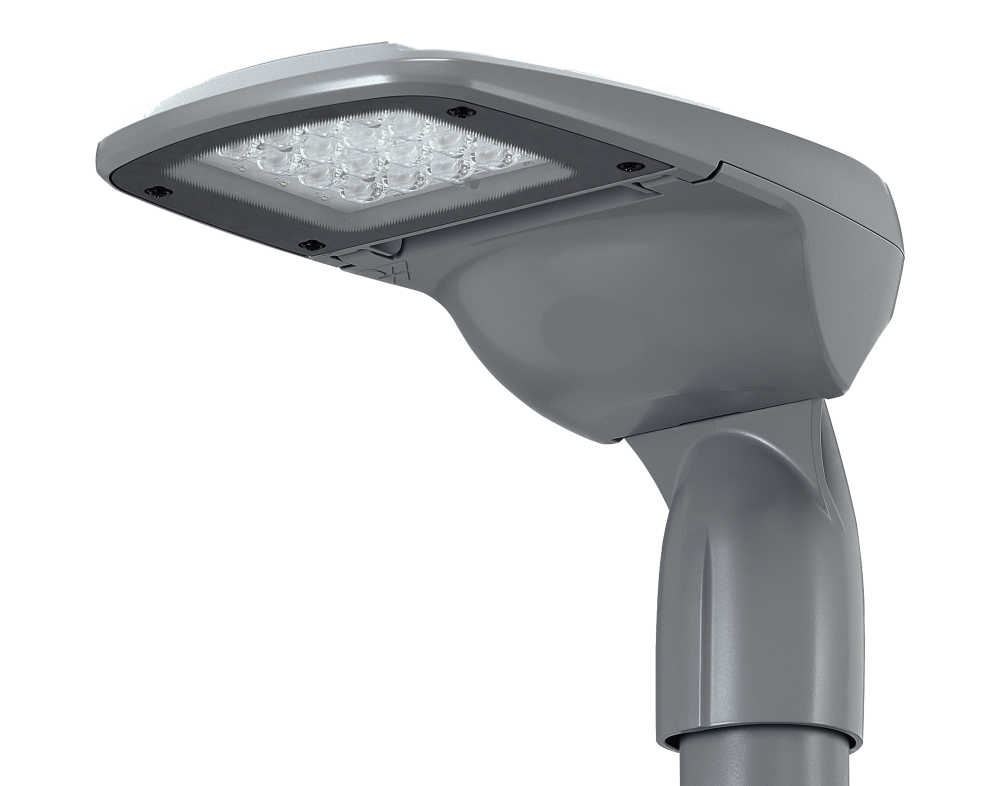

Kirium Pro Mini Street Lighting Product image 2000x1572px Alt1

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (6.5 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (4.3 MB)

Kirium Pro Mini photometry

Format: ZIP compressed file, (12 MB)

More views

Kirium Pro Mini Street Lighting Product image 2000x1572px Alt1
Kirium Pro Mini Side Street Lighting Product image 2000x1572px Alt1

Smallest and lightest product in the Kirium Pro range

Kirium Pro Mini is a compact, extremely efficient LED lantern suitable for footpaths, cycleways and minor residential roads.

  • Recommended for mounting at 4-6 metres
  • Available in 4, 8 or 16 LEDs
  • From 350 to 5958lm
  • Weighs just 3.6kg

  Request a quote

Product Selector

Lumen Range (lumens)320-5734

LED qty4-16

Options in this range

Name Lumen Range (lumens) Power Range Colour Temperature (CCT)
4 LED 320-1640 3-15 2700K, 3000K, 3500K, 4000K
8 LED 639-3295 6-26 2700K, 3000K, 3500K, 4000K
16 LED 1252-5734 10-40 2700K, 3000K, 3500K, 4000K

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE, ENEC
Mounting Height (m):
4-6
Applications:
High street & road lighting
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
320-5734
LED qty:
4-16
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
3500K
4000K
Colour rendering (CRI):
70Ra (4000K / 3500K / 3000K)
80Ra (3000K / 2700K)
Max efficacy (luminaire lumens):
Up to 174lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
NEMA
Zhaga
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Philips Xi

Mechanical and installation

Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7046 Mid grey
RAL 7035 Light grey
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm

Downloads and resources

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (6.5 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (4.3 MB)

Kirium Pro Mini photometry

Format: ZIP compressed file, (12 MB)

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (37 KB)

Kirium Pro Mini installation instructions

Format: Adobe Acrobat PDF file, (2.4 MB)

Dimensions

Kirium Pro Mini product dimension drawing W573px
Dimensions (mm):
  • A 390
  • B 110
  • C 227
Weight (kg):
3.6
Windage (m2):
0.020
