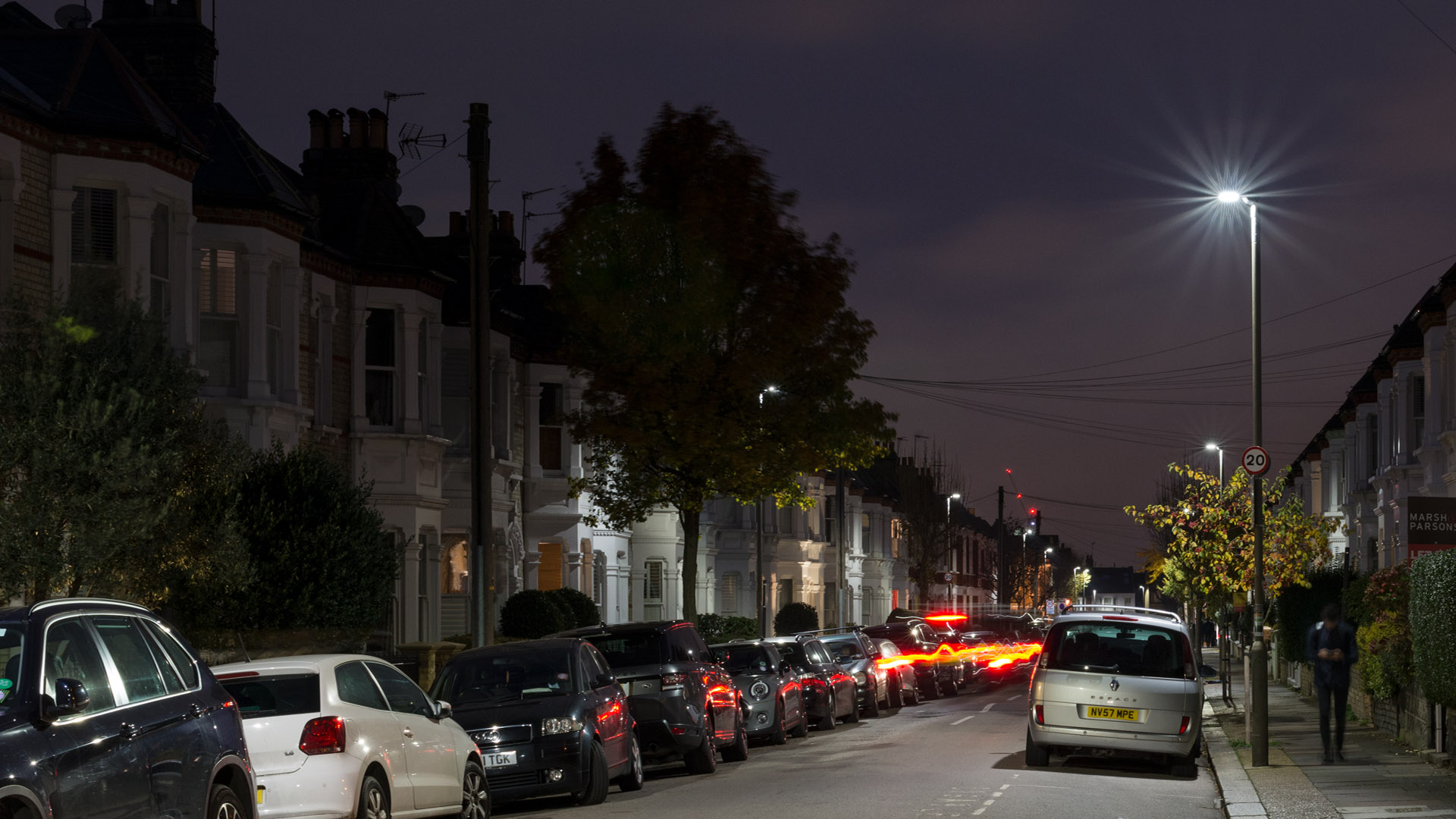

Kirium Pro Street Lighting Location image 1920x1080px Alt1

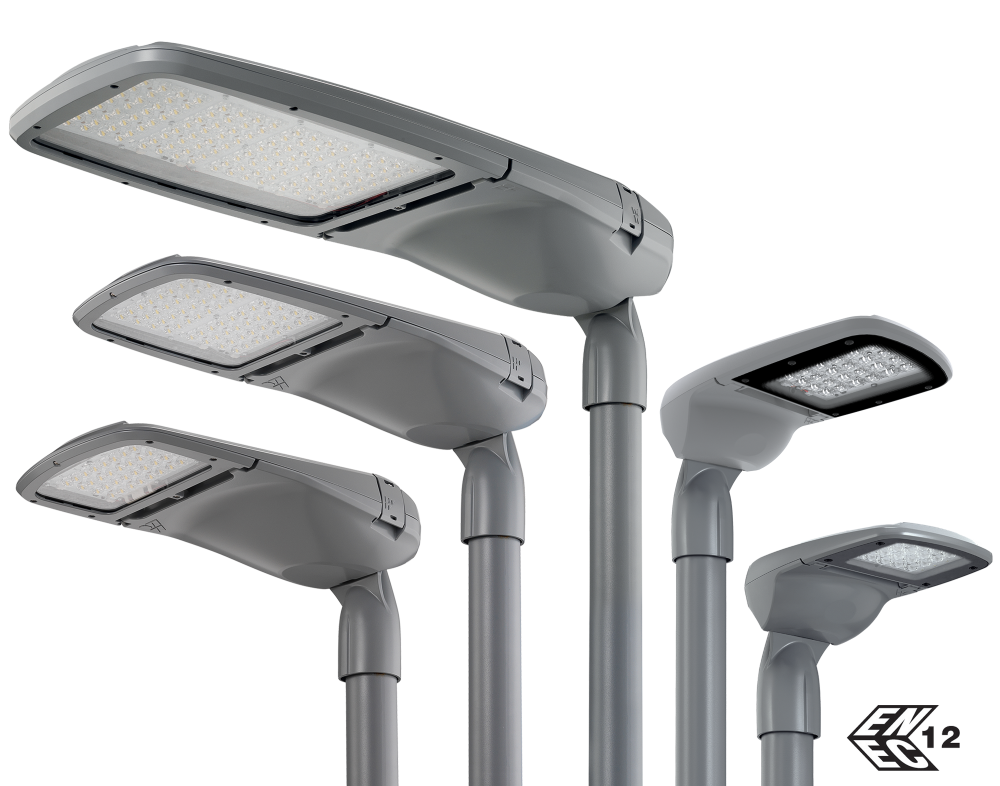

Kirium Pro Group Functional street lighting Product image 2000x1572px

Downloads

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.5 MB)

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (5 MB)

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (41 KB)

Kirium Pro
Kirium Pro
/ Kirium Pro
Kirium Pro brochure
Kirium Pro design guide
Kirium Pro product codes
Kirium Pro installation instructions
Kirium Pro 1 2 3 photometry
Kirium Pro Midi photometry
Kirium Pro Mini photometry
Contact

Unequalled performance. Unequalled choice.

Kirium Pro is our most comprehensive, flexible and future-proof range of street lighting luminaires, for residential roads to motorways.

  • Available in five sizes
  • From 400 to 46000lm
  • With 23 different optical distributions

Request a quote

Product Selector

Mounting Height (m)4-15

Choose

Lumen Range (lumens)320-46109

Choose

Weight (kg)

Choose

Products in this range

(5 in total)

Change view:

Product

Kirium Pro Mini

Product

Kirium Pro Midi

Product

Kirium Pro 1

Product

Kirium Pro 2

Product

Kirium Pro 3
Name Mounting Height (m) Lumen Range (lumens) Weight (kg) Windage (m2)
Kirium Pro Mini 4-6 320-5734 3.6 0.032 (CxS = 0.021)
Kirium Pro Midi 4-8 2314-9642 5 0.034 (CxS = 0.026)
Kirium Pro 1 5-8 639-12284 8.5 0.054 (CxS = 0.029)
Kirium Pro 2 6-10 2372-24315 9.8 0.059 (CxS = 0.034)
Kirium Pro 3 8-15 4762-46109 17.1 0.094 (CxS = 0.056)
Contact us about this product
4-6
320-5734
3.6
0.032 (CxS = 0.021)
4-8
2314-9642
5
0.034 (CxS = 0.026)
5-8
639-12284
8.5
0.054 (CxS = 0.029)
6-10
2372-24315
9.8
0.059 (CxS = 0.034)
8-15
4762-46109
17.1
0.094 (CxS = 0.056)
ResImages(4824, 0, 'desktop').Title

24 standard optical distributions for ultimate flexibility and precise lighting control.

Learn more

Pain-free installation and maintenance

Tool-less access and an automatic electrical disconnect safety feature maximise productivity during expensive road closures. With quick-release latches, hinged opening and lift-off head all designed to make life a whole lot easier.



Featuring Cool-zone technology™

An air void and thermal barrier between the LEDs and gear enclosure protects temperature sensitive electronics and extends product life.

A family solution

Kirium Pro range of street lighting, wall luminaires and bollards: a complete family solution for your project needs.

Content banner image Kirium family solution 2340x800px

Product

Kirium Pro

Product

Kirium Bollard

Product

Kirium Wall

Standard Colours

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light Grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE, ENEC
Mounting Height (m):
4-15

Lighting

Light source:
High power LED
Lumen Range (lumens):
LED qty:
4-128
Distribution:
Diamond+
Colour Temperature (CCT):
2700K
3000K
3500K
4000K
Colour rendering (CRI):
70Ra (4000K / 3500K / 3000K)
80Ra (3000K / 2700K)
Max efficacy (luminaire lumens):
Up to 174lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Drive Current Range:
200mA-1000mA (in 50mA increments)
Controls:
Photocell
Part-night switching
Pre-programmed dimming
NEMA
Zhaga
Integral CMS
Sensor ready
Surge protection:
10kV
Driver:
Philips Xi

Mechanical and installation

Tilt / inclination:
-15° to +15° (5° increments)
Materials:
Bodies: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate for IK10
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7046 Mid grey
RAL 7035 Light grey
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø60mm / Ø60mm - Ø76mm

Downloads and dimensions

Kirium Pro brochure

Format: Adobe Acrobat PDF file, (3.5 MB)

Download

Kirium Pro design guide

Format: Adobe Acrobat PDF file, (5 MB)

Download

Kirium Pro product codes

Format: Adobe Acrobat PDF file, (41 KB)

Download

Kirium Pro installation instructions

Format: ZIP compressed file, (11 MB)

Download

Kirium Pro 1 2 3 photometry

Format: ZIP compressed file, (39 MB)

Download

Kirium Pro Midi photometry

Format: ZIP compressed file, (20 MB)

Download

Kirium Pro Mini photometry

Format: ZIP compressed file, (12 MB)

Download
Kirium Pro Mini product dimension drawing W573px
Dimensions (mm):
  • A 390
  • B 110
  • C 227
Weight (kg):
3.6
Windage (m2):
0.032 (CxS = 0.021)
Kirium Pro Midi product dimension drawing W573px
Dimensions (mm):
  • A 451
  • B 119
  • C 227
Weight (kg):
5
Windage (m2):
0.034 (CxS = 0.026)
Kirium Pro 1 product dimension drawing W573px
Dimensions (mm):
  • A 610
  • B 140
  • C 350
Weight (kg):
8.5
Windage (m2):
0.054 (CxS = 0.029)
Kirium Pro 2 product dimension drawing W573px
Dimensions (mm):
  • A 720
  • B 140
  • C 350
Weight (kg):
9.8
Windage (m2):
0.059 (CxS = 0.034)
Kirium Pro 3 product dimension drawing W573px
Dimensions (mm):
  • A 1010
  • B 167
  • C 415
Weight (kg):
17.1
Windage (m2):
0.094 (CxS = 0.056)
