Kirium Eco Mini

Change view:

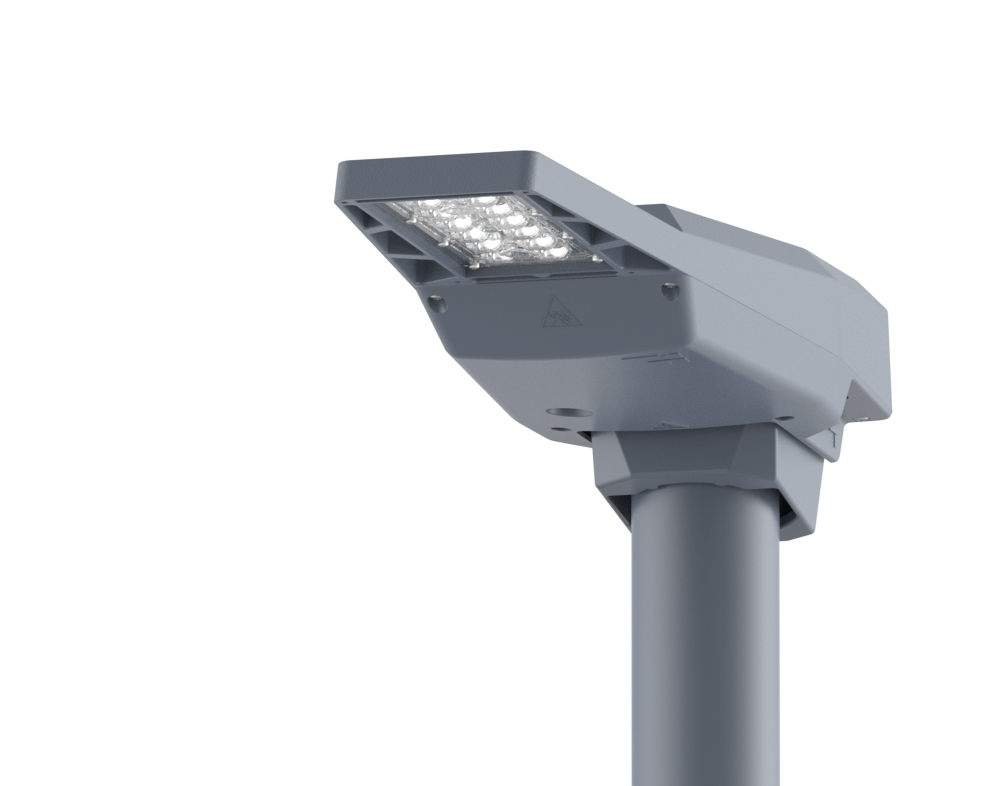

Kirium Eco Mini Product slider Product image Lighting 2000x1572px

Downloads

Kirium Eco brochure

Format: Adobe Acrobat PDF file, (2.2 MB)

Kirium Eco spec datasheet

Format: Adobe Acrobat PDF file, (858 KB)

Kirium Eco Mini photometry

Format: ZIP compressed file, (29 MB)

Our most competitive range of street lighting yet

Kirium Eco is our most competitive range of LED luminaires to date.

  • Low total cost of ownership
  • Universal mounting block allows on-site switching from side entry to post top
  • Optically enhanced for residential lighting
  • Smart-City ready

Request a quote

Detailed Specification

Product specification

Electrical Class:
I or II
IP rating:
IP66
IK rating:
IK08
Certifications:
CE
Mounting Height (m):
4-6
Applications:
High street & road lighting
Car parks
Area lighting
Buildings
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
1377-5830
Power Range:
9-43
LED qty:
12
Distribution:
Narrow Road (Type 1 / Type 2)
Medium Road (Type 1 / Type 2)
Wide Road (Type 1 / Type 2)
Symmetric Area
Asymmetric Area
Zebra Crossing (Left / Right)
Colour Temperature (CCT):
2200K
2700K
3000K
4000K
Colour rendering (CRI):
70Ra (80Ra on request)
Max efficacy (luminaire lumens):
up to 185lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Controls:
Miniature photocell
NEMA photocell
Part night switching
Pre-programmed dimming
NEMA photocell
Integral CMS
3/5/7 pin NEMA socket
4 pin Zhaga Book 18 socket
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Tilt / inclination:
Post top: -5° to +15° (5° increments)
Side entry: -15° to +10° (5° increments)
Materials:
Body (standard): Full LM6 die-cast aluminium
Body (hybrid): LM6 die-cast aluminium upper and UV-stabilised polypropylene polymer lower
Lenses: PMMA (polycarbonate on request)
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 7046 Mid Grey
RAL 7035 Light Grey
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-20°C to +25°C (please contact us for lifetime information at higher ambient temperatures)
Mounting:
Post Top: Ø60-76mm
Side Entry: Ø34-60mm

Downloads and dimensions

Kirium Eco brochure

Format: Adobe Acrobat PDF file, (2.2 MB)

Kirium Eco spec datasheet

Format: Adobe Acrobat PDF file, (858 KB)

Kirium Eco Mini photometry

Format: ZIP compressed file, (29 MB)

Kirium Eco Mini BIM files

Format: ZIP compressed file, (488 KB)

Kirium Eco product codes

Format: Adobe Acrobat PDF file, (56 KB)

Kirium Eco installation guide 27 02 20

Format: Adobe Acrobat PDF file, (2.1 MB)

Kirium Eco Mini product dimensions drawing W573px
Dimensions (mm):
  • A 588
  • B 135
  • C 180
  • D 97
Weight (kg):
4.3 (standard) 3.8 (hybrid)
Windage (m2):
0.039 (CxS = 0.028)
