Sephora Wall

Change view:

Sephora Wall Wall mounted lighting Product image 2000x1572px

Downloads

Sephora wall brochure

Format: Adobe Acrobat PDF file, (3.6 MB)

Sephora wall photometry

Format: ZIP compressed file, (362 KB)

Sephora wall product codes

Format: Adobe Acrobat PDF file, (33 KB)

More views

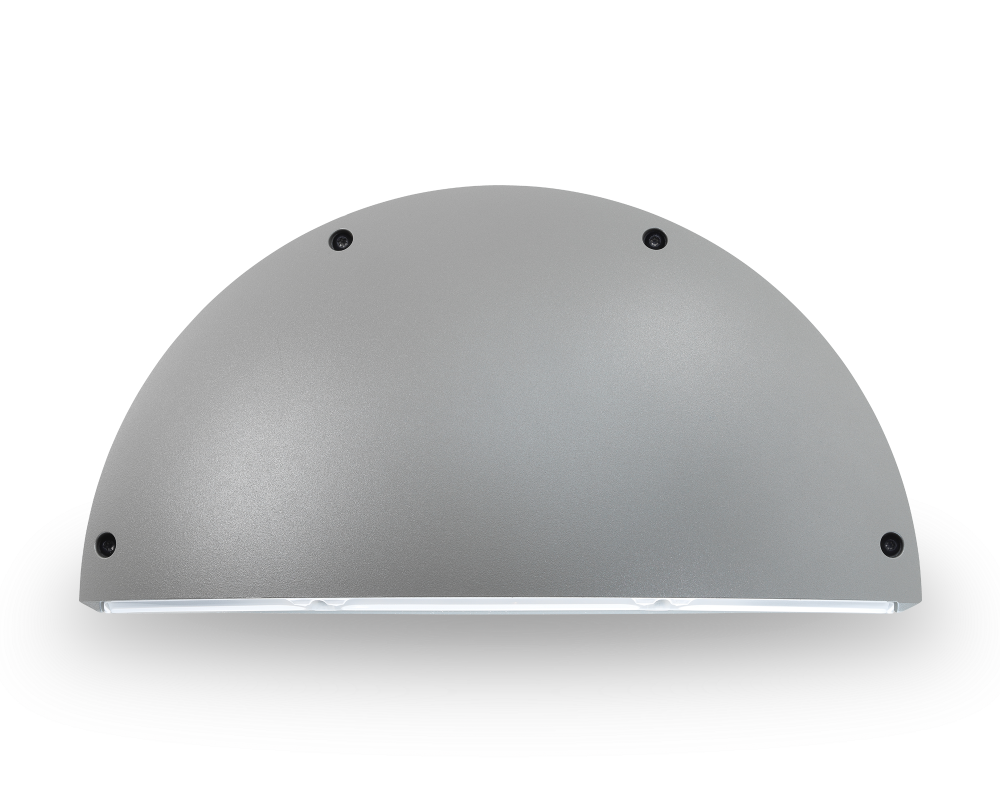

Sephora Wall Wall mounted lighting Product image 2000x1572px

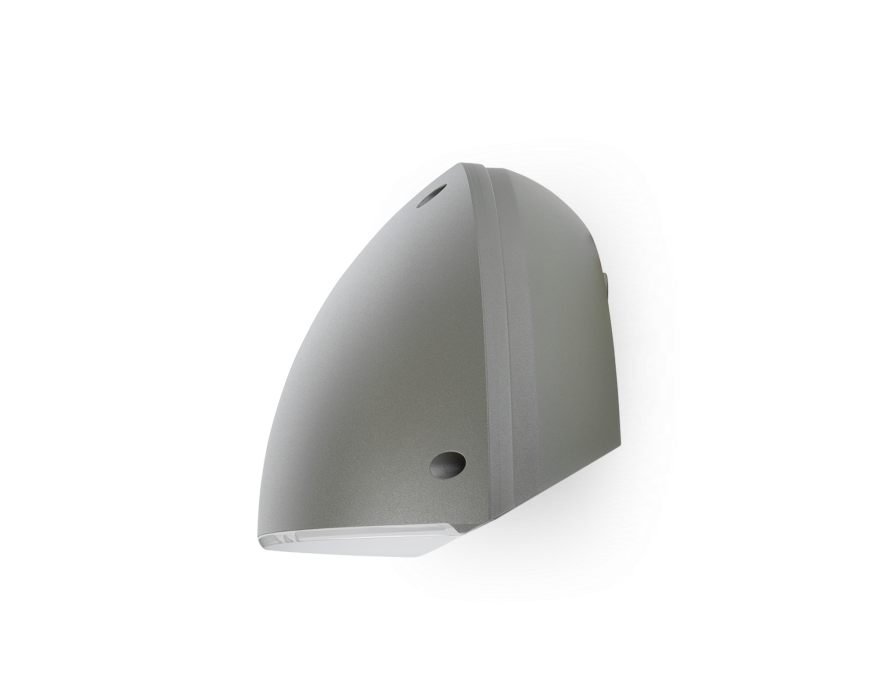

Sephora Wall Wall mounted lighting Product image 2000x1572px Alt1

High performance wall luminaire

Market-leading wall luminaire offering superior optical performance and control, simple installation and significant energy savings.  BREEAM compliant Sephora wall is available in 2700K, 3000K and 4000K as standard: however, for schemes where light for comfort and well-being are paramount, consider SunLike™: a NEW award-winning technology which closely matches the spectrum of natural sunlight.

  • Superior functionality at an economical price point
  • Integral CMS and emergency options available
  • Wide spacings of 20m+ achievable

Request a quote

Introducing SunLike™ LED

In partnership with Seoul, we're excited to introduce this new award-winning, human-centric solution which mimics the spectral power distribution (SPD) of natural daylight.

Benefits of SunLike™ LED

  • Closely matches the spectrum of natural sunlight
  • Enhanced colour clarity, for visual recognition
  • High CRI: 95Ra
  • SP ratio: 1.8
  • Reduced blue light peak
  • Reduced glare
  • Increased visual comfort – proven to reduce eyestrain
  • LUX Award Winner 2018: Enabling Technology of the Year >

Find out more

Optical performance


 Suitable for a wide range of applications, choose from our three application-specific distributions - featuring Diamond+



 Asymmetric narrow optic 548x340px

Narrow (A1) - for pathways

 Asymmetric medium optic 548x340px

Medium (A5) - wider paths and area lighting

 Asymmetric wide optic 548x340px

Wide (C2) - for service yards and carparks

Features




Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid grey

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

Corten Brown colour swatch 548x548px

Corten Brown



 To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
3-6
Applications:
Buildings
Area lighting
Paths & walkways

Lighting

Light source:
High power LED
Optical control (lookup):
Diamond+
Lumen Range (lumens):
up to 5500lm
LED qty:
16
Distribution:
Narrow (Diamond+ A1)
Medium (Diamond+ A5)
Wide (Diamond+ C2)
Colour Temperature (CCT):
2700K
3000K
4000K
4000K SUNLIKE
Colour rendering (CRI):
70Ra (3000K / 4000K)
80Ra (2700K)
95Ra (4000K SUNLIKE)
Max efficacy (luminaire lumens):
up to 122lm/W
L80 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
300mA-1000mA
Dimming:
1-10V, DALI
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Integral CMS
Presence detector
Emergency version
Surge protection:
10kV
Driver:
Philips Xi FP

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Clear or frosted polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 7035 Light grey
RAL 7046 Mid grey
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Operating temp (°C):
-25°C to +40°C
Mounting:
Wall Mount

Downloads and resources

Downloads

Sephora wall brochure

Format: Adobe Acrobat PDF file, (3.6 MB)

Sephora wall photometry

Format: ZIP compressed file, (362 KB)

Sephora wall product codes

Format: Adobe Acrobat PDF file, (33 KB)

Sephora Wall installation instructions

Format: Adobe Acrobat PDF file, (972 KB)

Dimensions

Sephora Wall product dimension drawing W573px
Dimensions (mm):
  • A 380
  • B 195
  • C 165
Weight (kg):
3
