Pharola

Change view:

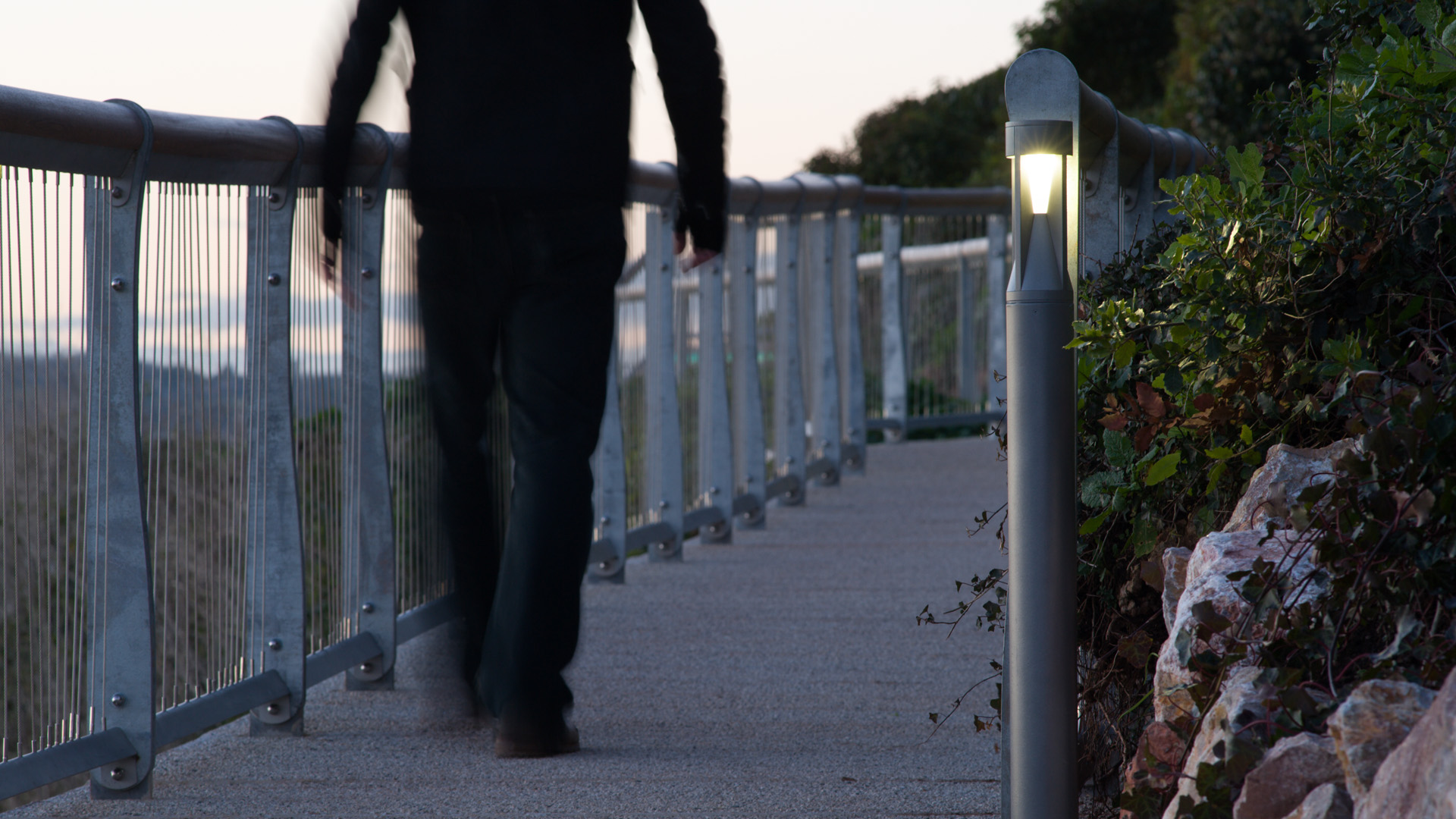

Pharola Bollard Location image 1920x1080px Alt1

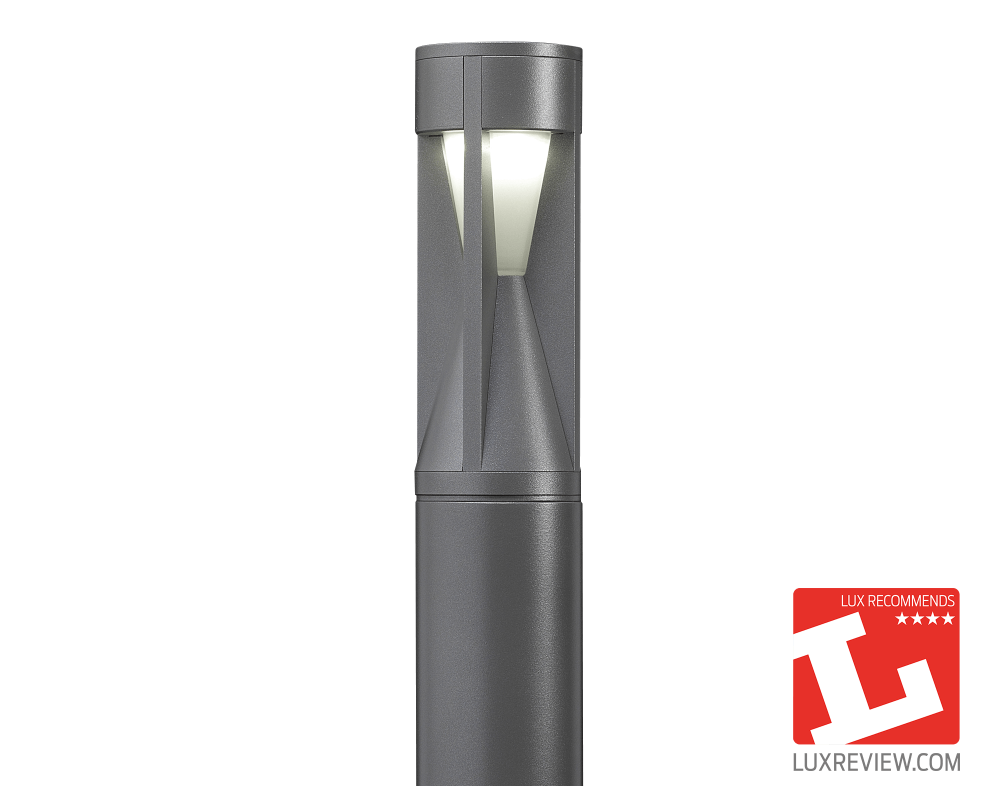

Pharola Bollard Lux Review 4 stars Product image 2000x1572px

Downloads

Pharola photometry

Format: ZIP compressed file, (16 KB)

Pharola product codes

Format: Adobe Acrobat PDF file, (42 KB)

More views

Pharola Bollard Lux Review 4 stars Product image 2000x1572px

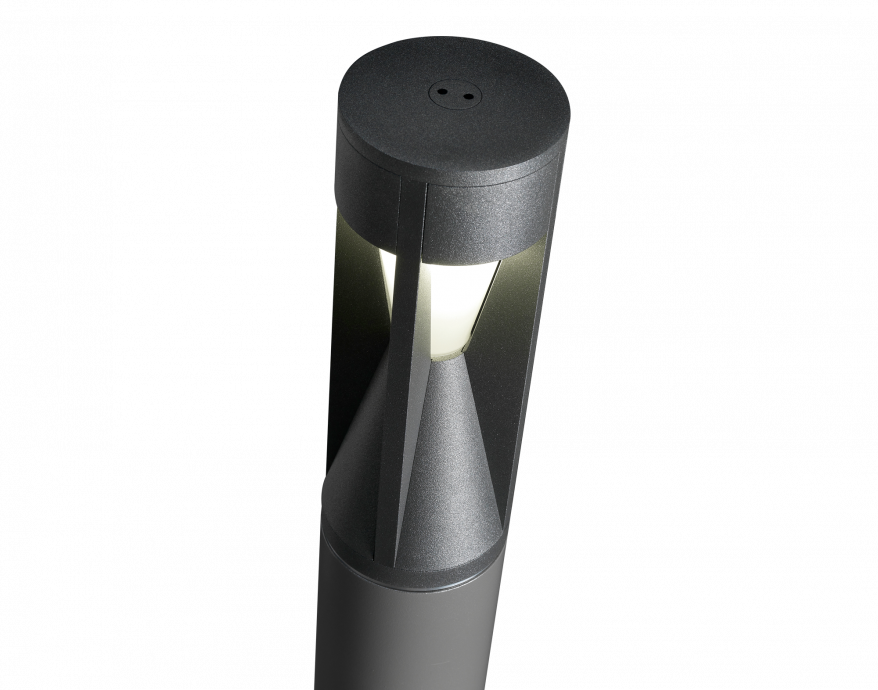

Pharola Bollard Product image 2000x1572px Alt4

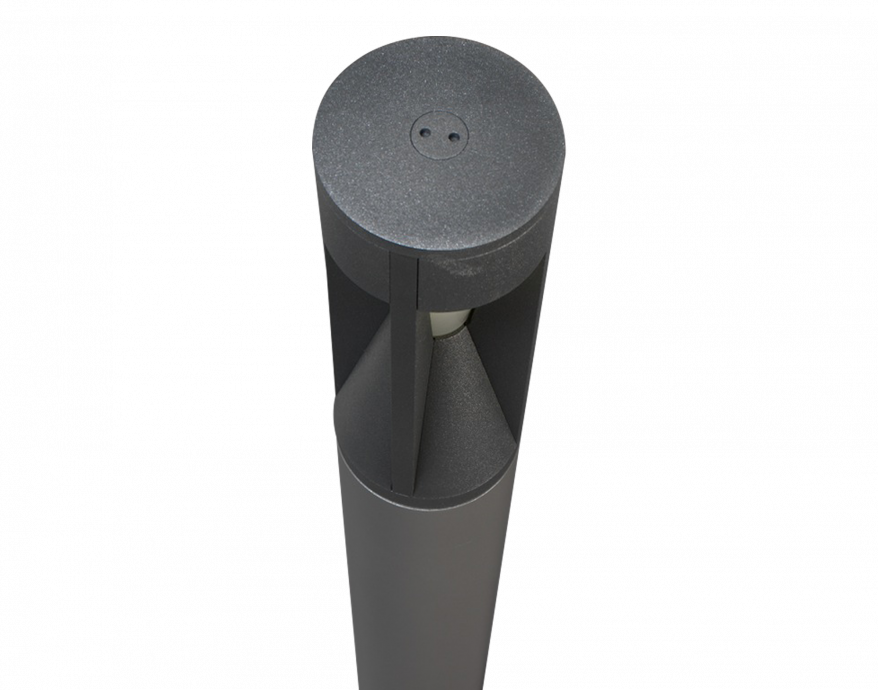

Pharola Bollard Product image 2000x1572px Alt6

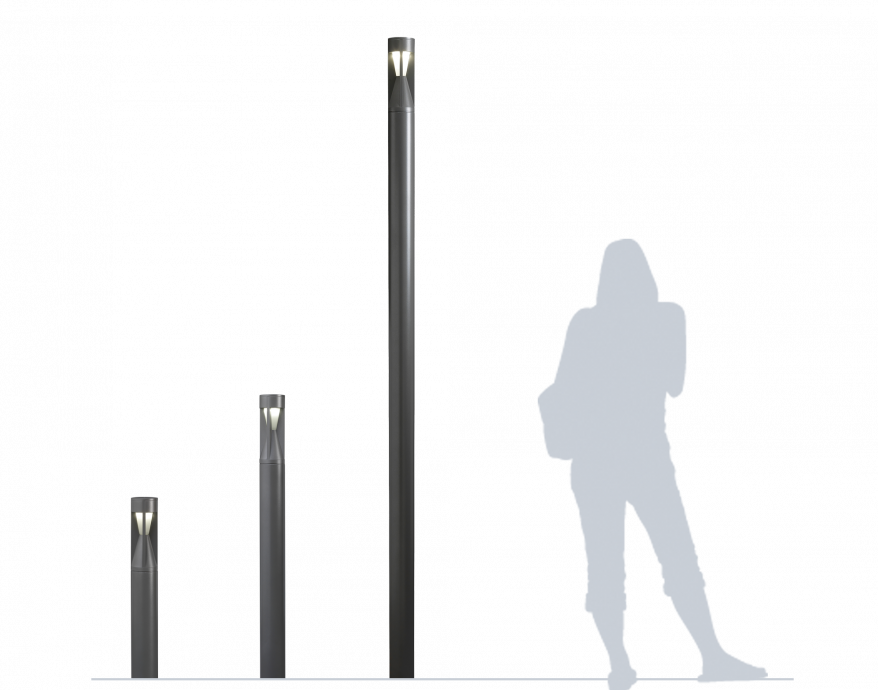

Pharola Bollard Product image 2000x1572px Alt7

Slim, elegant styling

Pharola is a versatile, virtually maintenance-free architectural LED bollard, which provides a high-performance white light, aiding navigation and promoting a feeling of safety after dark.

  • Uniform 360° lighting distribution
  • Three bollard heights
  • High lumen output and long LED life

Request a quote

Options in this range

Name Dimensions (mm) Weight (kg)
Pharola 600 Height: 600 9
Pharola 1m Height: 1000 13
Pharola 2m Height: 2200 21

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
494-785
Power Range:
12
LED qty:
4
Distribution:
Symmetric
180° Backshield (on request)
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>70Ra

Power and control

Drive Current Range:
700mA
Controls:
Remote switch
Driver:
Tridonic

Mechanical and installation

Materials:
Head: Die-cast aluminium
Body: Galvanised steel
Seals: Silicone
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Root mounted
Flange plate
1st Fix root

Downloads and resources

Downloads

Pharola photometry

Format: ZIP compressed file, (16 KB)

Pharola product codes

Format: Adobe Acrobat PDF file, (42 KB)

Dimensions

Pharola 600 product dimension drawing W573px
Dimensions (mm):
  • A 600
  • Ø B 89
  • C 300
Weight (kg):
9
Pharola 1000 product dimension drawing W573px
Dimensions (mm):
  • A 1000
  • Ø B 89
  • C 500
Weight (kg):
13
Pharola 2000 product dimension drawing W573px
Dimensions (mm):
  • A 2200
  • Ø B 89
  • C 500
Weight (kg):
21
