Kova

Change view:

Kova Corner Underpass and Anti Vandal Location image 1920x1080px Alt1

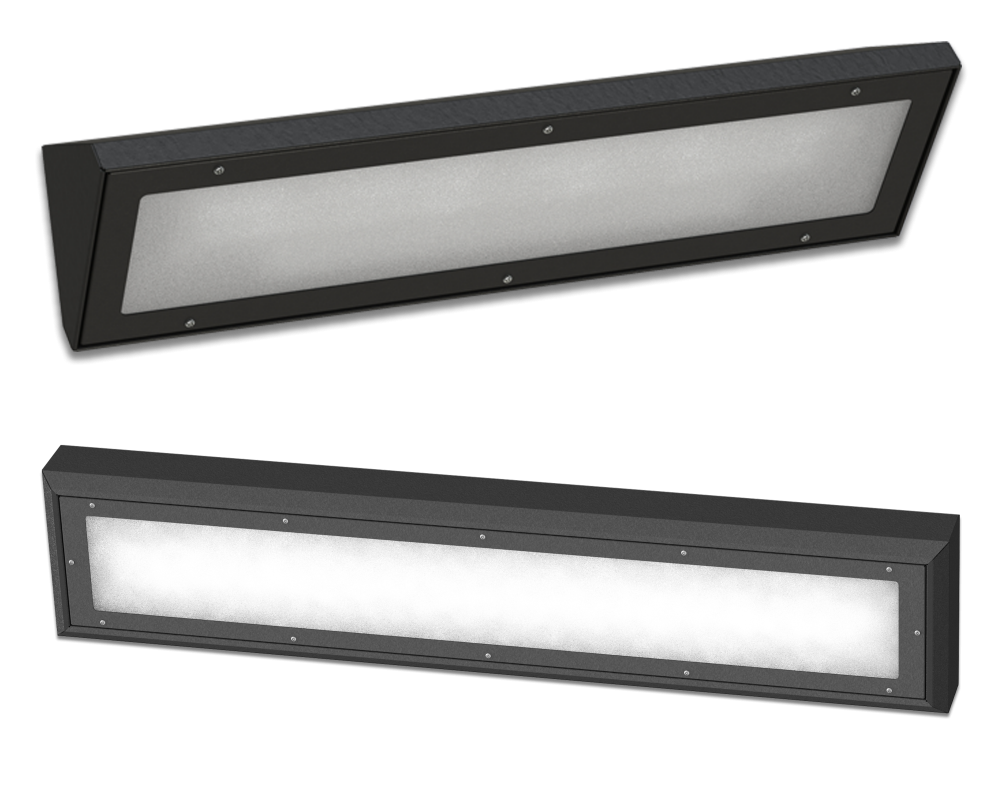

Kova Underpass and Anti Vandal Product image 2000x1572px

Downloads

Kova brochure

Format: Adobe Acrobat PDF file, (645 KB)

Kova product codes

Format: Adobe Acrobat PDF file, (40 KB)

Kova photometry

Format: ZIP compressed file, (118 KB)

Extreme performance in tough situations

The Kova family of highly efficient anti-vandal luminaires are fabricated in stainless steel and thick polycarbonate to provide an IK rating of 10+ Available with a range of extras to offer further energy savings and increased vandal resistance, the Kova family offers extreme performance for tough applications.

  • Corner, Surface and Recessed (on request) versions available
  • Each version is supplied in three sizes; 600, 1200 and 1500mm
  • Certified IK10+ and tested against impact to 150J for extreme performance

Request a quote

Products in this range

(2 in total)

Change view:

Contact us about this product

Features




ResImages(5821, 0, 'desktop').Title

Standard colour

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK10+
Certifications:
CE
Applications:
Rail

Lighting

Light source:
Linear mid power LED
Distribution:
Asymmetric
Colour Temperature (CCT):
4000K
Colour rendering (CRI):
80Ra
Max efficacy (luminaire lumens):
125lm/W
L90 Lifetime Estimate:
>50,000hrs

Power and control

Dimming:
1-10V, DALI
Controls:
1-10V
DALI
Emergency battery backup
Driver:
Tridonic

Mechanical and installation

Materials:
Body: Fabricated stainless steel
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
Other RAL colours on request
Operating temp (°C):
-30°C to +45°C
Mounting:
Surface Mount
Wall Mount

Downloads and dimensions

Kova brochure

Format: Adobe Acrobat PDF file, (645 KB)

Kova product codes

Format: Adobe Acrobat PDF file, (40 KB)

Kova photometry

Format: ZIP compressed file, (118 KB)

Kova Corner product datasheet

Format: Adobe Acrobat PDF file, (126 KB)

Kova Surface product datasheet

Format: Adobe Acrobat PDF file, (149 KB)

Kova Recessed product datasheet

Format: Adobe Acrobat PDF file, (136 KB)

Kova Corner 600 product dimension drawing W573px
Dimensions (mm):
  • A 760
  • B 170
  • C 170
Weight (kg):
10
Kova Corner 1200 product dimension drawing W573px
Dimensions (mm):
  • A 1370
  • B 170
  • C 170
Weight (kg):
16
Kova Corner 1500 product dimension drawing W573px
Dimensions (mm):
  • A 1670
  • B 170
  • C 170
Weight (kg):
20
Kova Surface 600 product dimension drawing W573px
Dimensions (mm):
  • A 760
  • B 280
  • C 110
Weight (kg):
12
Kova Surface 1200 product dimension drawing W573px
Dimensions (mm):
  • A 1370
  • B 280
  • C 110
Weight (kg):
20
Kova Surface 1500 product dimension drawing W573px
Dimensions (mm):
  • A 1670
  • B 280
  • C 110
Weight (kg):
27
