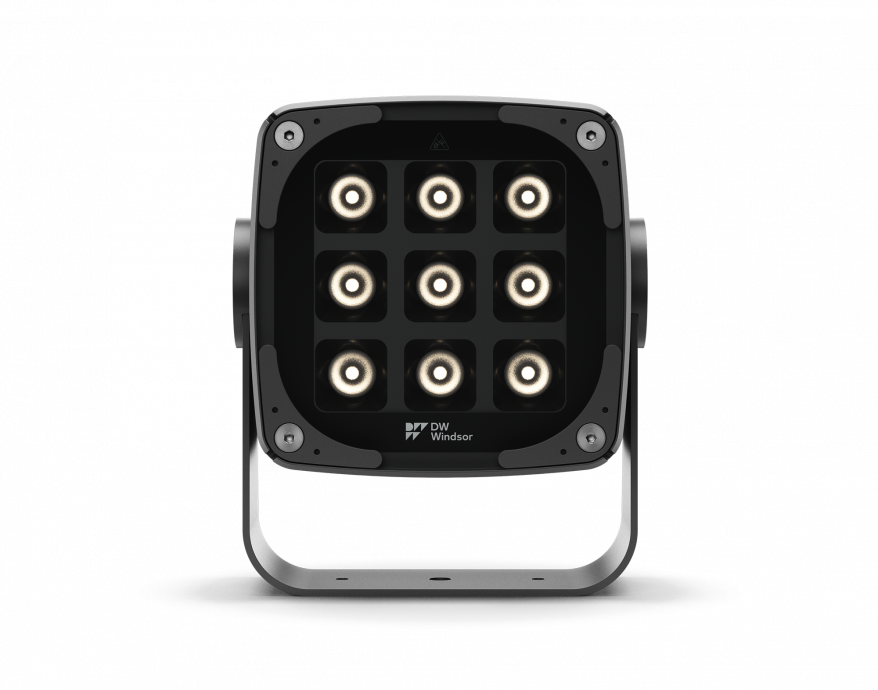

The small but powerful projector.

With its elegant, geometric form and compact size, Fira is a highly versatile architectural luminaire, designed to enhance urban environments through precise illumination.

Developed as a joint collaboration between DW Windsor and Pulsar, the high performance range is available with a choice of dynamic and monochromatic LED light sources with multiple beam options from narrow spots to wide floods.

  • Monochromatic light source: 2700K, 3000K and 4000K (Fira)
  • Dynamic light sources: RGBW, RGBA & tunable white (Fira Pro and Fira Ultra)
  • Surface or column mounting options
  • Bluetooth control available
  • 100,000 hour lifetime (L90)
  • IP66 and IK09 protection

Request a quote

ResImages(9979, 0, 'desktop').Title

Features


Optical Accessories

For flexibility and precise lighting distribution, Fira can be fitted with a choice of three optical accessories. Designed to manage light discreetly, the range of interchangeable louvres, snoots and hal-snoots help to control glare and are easily fitted on-site.

Fira Colours

Detailed Specification

Product specification

Electrical Class:
I, (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Applications:
Buildings
Public realm

Lighting

Light source:
High power LED
Lumen Range (lumens):
684-3148
Power Range:
27
LED qty:
9
Distribution:
Narrow Beam (8°)
Medium Beam (30°)
Wide Beam (65°)
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80
Max efficacy (luminaire lumens):
117lm/W
L90 Lifetime Estimate:
100,000 hours

Power and control

Voltage:
220-240V
Drive Current Range:
350mA
500mA
700mA
1050mA
Dimming:
On/off, DALI, Bluetooth

Mechanical and installation

Tilt / inclination:
45° (forward), 90° (back)
Materials:
Body: die-cast aluminium
Glazing: flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic Grey
DB 703 Metallic Dark Grey
Corten Brown
Other RAL colours on request
Operating temp (°C):
-20°C to +40°C
Mounting:
Surface
Column

Downloads and dimensions

Fira brochure

Format: Adobe Acrobat PDF file, (4.7 MB)

Fira datasheet

Format: Adobe Acrobat PDF file, (95 KB)

Fira product codes

Format: Adobe Acrobat PDF file, (27 KB)

Fira installation guide

Format: Adobe Acrobat PDF file, (1.8 MB)

Fira photometry

Format: ZIP compressed file, (738 KB)

fira straight on Product variant dimensions drawing Lighting W573px2
Dimensions (mm):
  • A 212
  • B 175
Weight (kg):
4.5

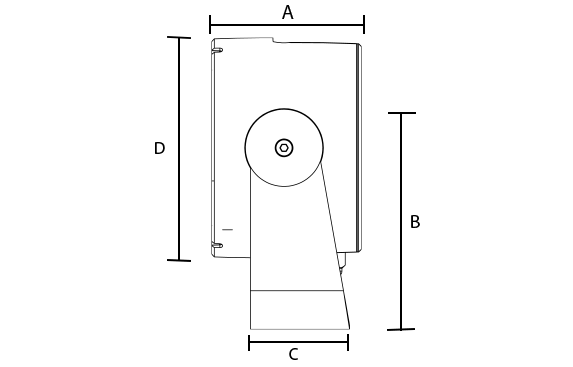

fira side on Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • A 106
  • B 132
  • C 72
  • D 160
Weight (kg):
4.5
