Excel 500

Change view:

Excel with flat glass Streetlighting Product image 2000x1572px

Downloads

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Excel product codes

Format: Adobe Acrobat PDF file, (46 KB)

Excel photometry

Format: ZIP compressed file, (3.2 MB)

Truly versatile lighting solution

Excel is our most versatile luminaire - classically styled with finishes and glazing options suitable for a wide range of requirements, from car parks to street lighting, providing a truly versatile and stylish solution whatever the application.

  • Performance LED light engine available for excellent energy savings
  • For mounting at 8-10 metres
  • Flat glass glazing for zero light pollution

Request a quote

Options in this range

Name Light source Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED 5632-22515 41-198 2700K, 3000K, 4000K

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
8-10
Applications:
High street & road lighting
Car parks
Paths & walkways

Lighting

Lumen Range (lumens):
5632-22515
LED qty:
64

Power and control

Voltage:
220-240V
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm
Pendant Easy-fit™: Ø42.4mm
Pendant Threaded: 1¼" BSP

Downloads and dimensions

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Excel product codes

Format: Adobe Acrobat PDF file, (46 KB)

Excel photometry

Format: ZIP compressed file, (3.2 MB)

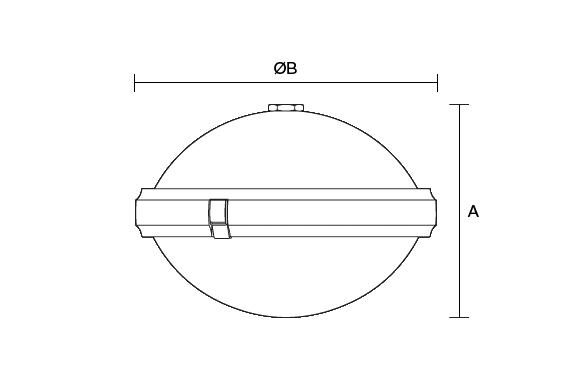

Excel 500 Flat glass product dimension drawing W573px
Dimensions (mm):
  • A 265
  • Ø B 550
Weight (kg):
16.1
Windage (m2):
0.11
