Polar
Overview
Specification
Dimensions
Downloads (4)
Enquire now

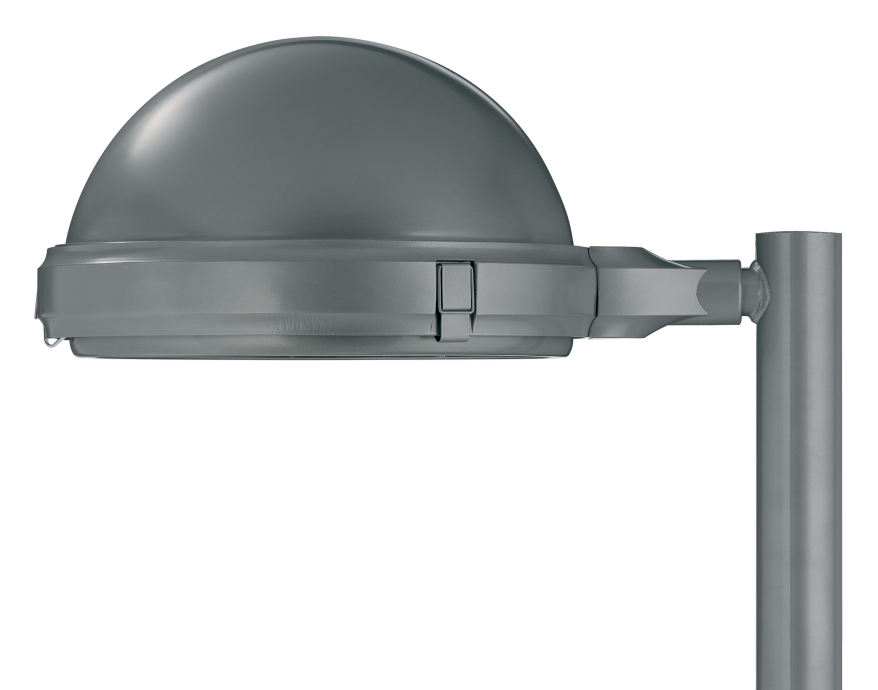

Polar Decorative Street Lighting Product image 2000x1572px

Simplicity for car parks and street lighting

Polar's appealing spherical form offers unparalleled performance at mounting heights of 4-12 metres, making it ideal for applications from car parks to street lighting.

  • Available in two sizes: 450 and 500
  • Performance LED light engine available for excellent energy savings
  • For mounting at 4-12 metres
  • Flat glass glazing is available for zero light pollution

Request a quote

Products in this range

polar 300x300px

Polar 450

Weight: 13.2-13.7kg

Windage: 0.17-0.12m2

polar 300x300px

Polar 500

Weight: 14.6-16.1kg

Windage: 0.14-0.21m2

Contact us to find out more

Polar

Diamond+ Optics

Polar is available with a wide range of standard optical distributions for ultimate flexibility while ensuring light is only placed where needed.

Easy-fit™

Our Easy-Fit™ entry simplifies alignment and eliminates the problem of twisted cabling with threaded entries.

Glazing

Polar is available in flat glass and polycarbonate bowl options to specify the appropriate luminaire for you scheme.

Classic design, modern technology

Advances in LED technology mean that you can reduce costs and make energy sayings in addition to higher quality light.

More on Diamond+ Optics

Contact us

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey



RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-10
Applications:
High street & road lighting
Car parks
Paths & walkways

Lighting

Lumen Range (lumens):
2872-22515
LED qty:
16-64

Power and control

Voltage:
220-240V
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Polycarbonate bowl or Flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm
Pendant Easy-fit™: Ø42.4mm
Pendant Threaded: 1¼" BSP

Dimensions

Polar 450 flat glass product dimension drawing W573px
Dimensions (mm):
  • A 280
  • Ø B 500
Weight (kg):
13.7
Windage (m2):
0.12
Polar 450 product dimension drawing W573px
Dimensions (mm):
  • A 450
  • Ø B 500
Weight (kg):
13.2
Windage (m2):
0.17
Polar 500 flat glass product dimension drawing W573px
Dimensions (mm):
  • A 305
  • Ø B 550
Weight (kg):
16.1
Windage (m2):
0.14
Polar 500 product dimension drawing W573px
Dimensions (mm):
  • A 500
  • Ø B 550
Weight (kg):
14.6
Windage (m2):
0.21
