Crieff

Change view:

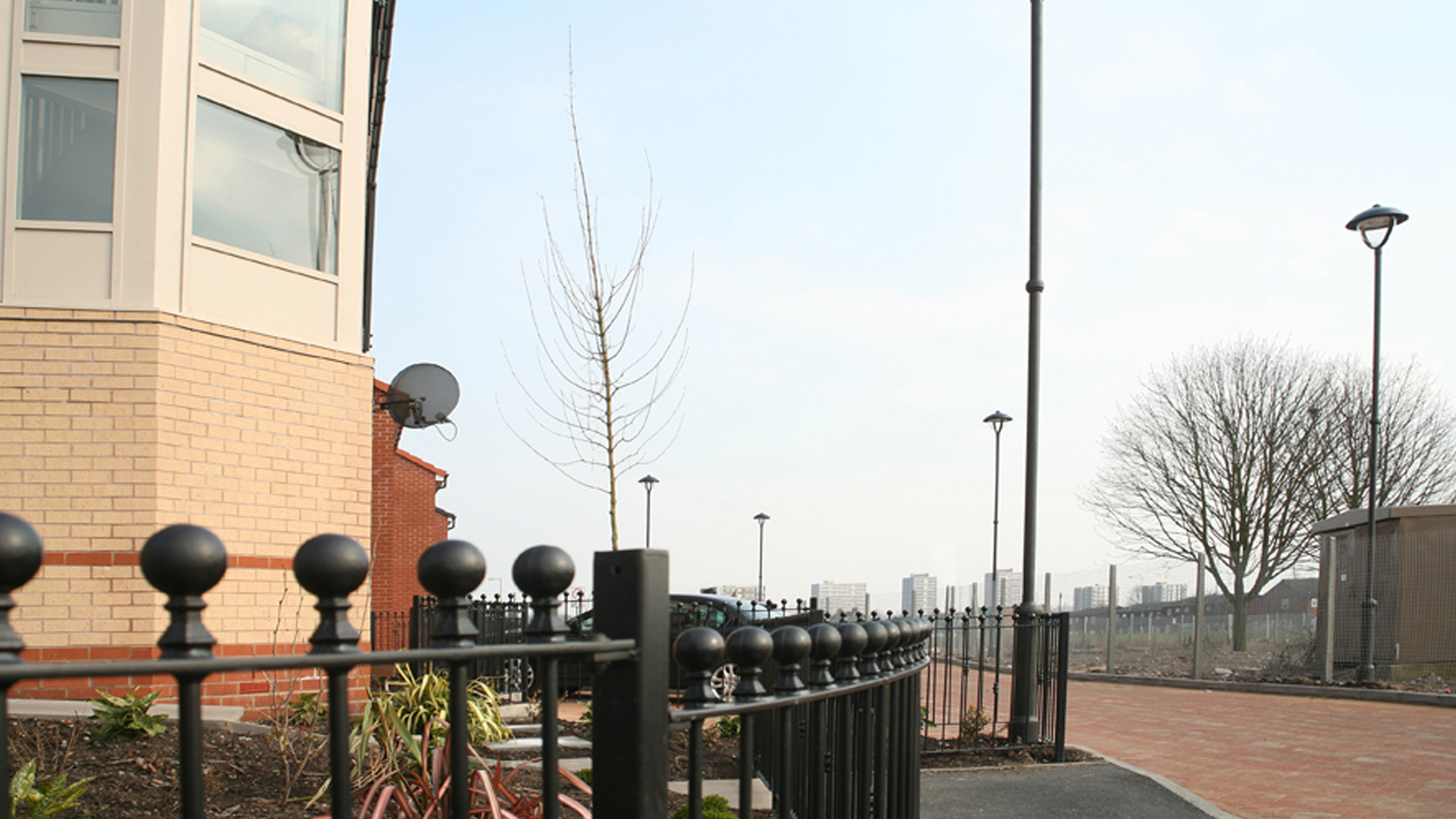

Crieff Street Lighting Location image 1920x1080px
Crieff Street Lighting Product image 2000x1572px

Downloads

Crieff photometry

Format: ZIP compressed file, (1.7 MB)

Crieff product codes

Format: Adobe Acrobat PDF file, (33 KB)

Developed in association with Brian Snell Architects

Inspired by the success of our Dundee luminaire, Crieff was designed with the same basic style but with the addition of an extended brim. First installed in a development in the golfing town of Crieff: hence the name.

  • Performance LED light engine available for excellent energy savings
  • For mounting at 4-6 metres

Request a quote

Options in this range

Name Light source Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED 2872-15224 22-117 2700K, 3000K, 4000K
CosmoPolis Lamp 45, 60, 90
SON-T Lamp 50, 70, 100, 150
CDO-TT Lamp 50, 70, 100, 150

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

PAN 7621 Metallic silver colour swatch 548x548px

PAN 7621

Metallic silver

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP66
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-6
Applications:
High street & road lighting
Car parks
Paths & walkways

Lighting

Lumen Range (lumens):
2872-15224
LED qty:
16-64

Power and control

Voltage:
220-240V
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Polycarbonate bowl
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
PAN 7621 Metallic silver
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Post Top: Ø76mm

Downloads and resources

Downloads

Crieff photometry

Format: ZIP compressed file, (1.7 MB)

Crieff product codes

Format: Adobe Acrobat PDF file, (33 KB)

Dimensions

Crieff product dimension drawing W573px
Dimensions (mm):
  • A 690
  • Ø B 700
  • Ø C 76
Weight (kg):
16.3
Windage (m2):
0.23
