Rado

Change view:

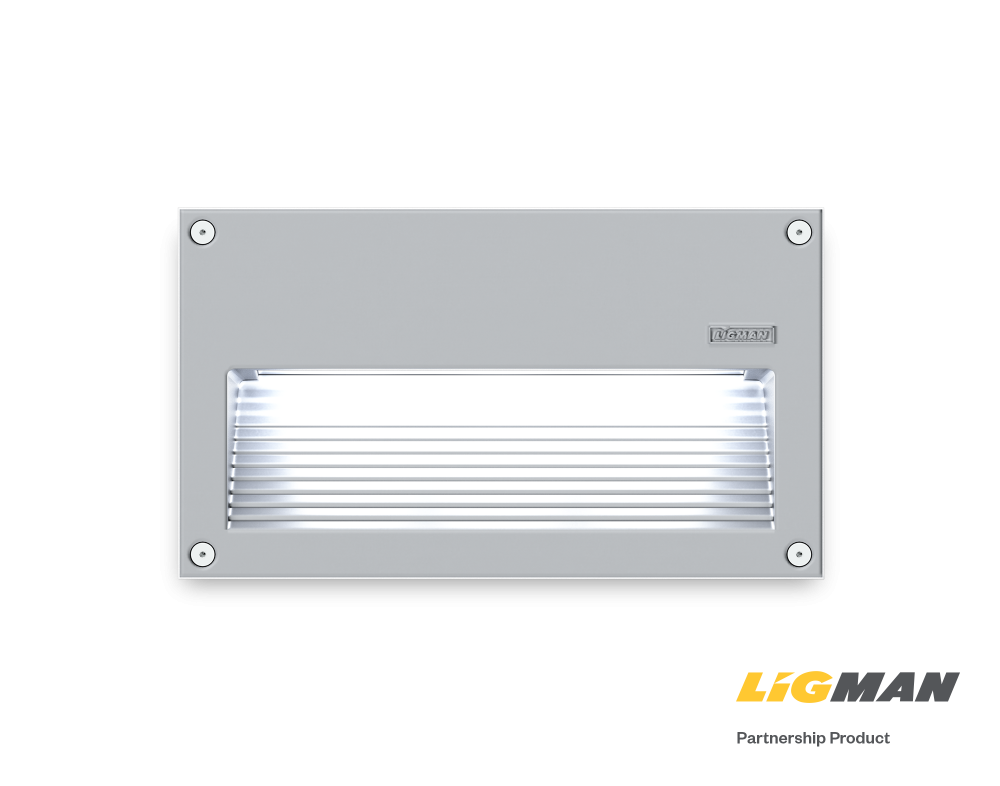

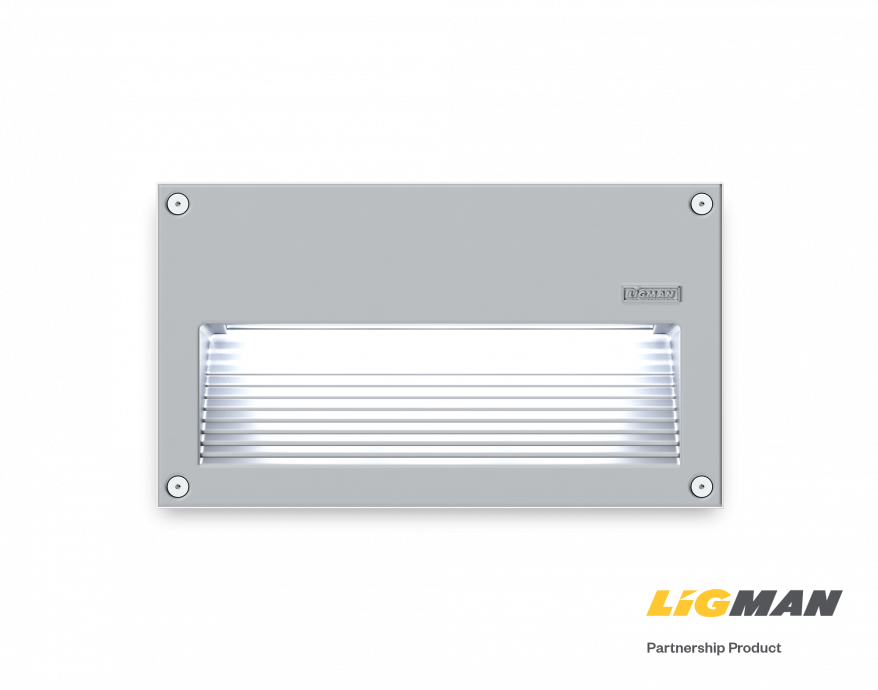

rado 4 product slider product image LIGMAN 2000x1572px

Downloads

RADO family datasheet

Format: Adobe Acrobat PDF file, (1.4 MB)

Rado 1 installation sheet

Format: Adobe Acrobat PDF file, (4.5 MB)

Rado 2 installation sheet

Format: Adobe Acrobat PDF file, (5.6 MB)

Rado
Products
/ Rado
RADO family datasheet
Rado 1 installation sheet
Rado 2 installation sheet
Rado 3 installation sheet
Rado 4 installation sheet
Rado 5 installation sheet
Rado 6 installation sheet
Rado 7 installation sheet
Contact

Recessed luminaires by LIGMAN

Sturdy classic wall-recessed luminaire. Simple, pleasing aesthetic, perfect for retrofit applications with its multiple sizes offered.

  • Die-cast aluminium housing
  • Two cable entries for through wiring
  • Stainless steel fasteners in grade 316
  • Integral control gear

Request a quote

Find out more

Products in this range

Rado 1

Lumens: 124-133lm

Weight: 1.0kg

Rado 2

Lumens: 558-620lm

Weight: 1.2kg

Rado 3

Lumens: 502-540lm

Weight: 2.0kg

Rado 4

Lumens: 768-853lm

Weight: 4.0kg

Rado 5

Lumens: 402-447lm

Weight: 1.4kg

Rado 6

Lumens: 124-133lm

Weight: 2.5kg

Rado 7

Lumens: 1382-2192lm

Weight: 6.5kg

Contact us to find out more

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK09
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways
Bridges & footbridges

Lighting

Lumen Range (lumens):
124-1399
LED qty:
1-4 x 12
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
L80 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall recessed

Downloads and dimensions

RADO family datasheet

Format: Adobe Acrobat PDF file, (1.4 MB)

Download

Rado 1 installation sheet

Format: Adobe Acrobat PDF file, (4.5 MB)

Download

Rado 2 installation sheet

Format: Adobe Acrobat PDF file, (5.6 MB)

Download

Rado 3 installation sheet

Format: Adobe Acrobat PDF file, (4.7 MB)

Download

Rado 4 installation sheet

Format: Adobe Acrobat PDF file, (4.9 MB)

Download

Rado 5 installation sheet

Format: Adobe Acrobat PDF file, (6.6 MB)

Download

Rado 6 installation sheet

Format: Adobe Acrobat PDF file, (4.6 MB)

Download

Rado 7 installation sheet

Format: Adobe Acrobat PDF file, (4.1 MB)

Download
Completed Rado 1 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 100
  • B 155
Weight (kg):
1.0
Completed Rado 2 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 260
  • B 150
Weight (kg):
1.2
Completed Rado 3 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 242
  • B 242
Weight (kg):
2.0
Completed Rado 4 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 280
  • B 326
Weight (kg):
4.0
Completed Rado 5 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 260
  • B 100
Weight (kg):
1.4
Completed Rado 6 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 330
  • B 100
Weight (kg):
2.5
Completed Rado 7 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 245
  • B 245
Weight (kg):
6.5
