In-ground luminaires by LIGMAN

Professional technical in-ground lighting solutions. Sophisticated and expansive; white and RGBW DMX, with 7 beam types.

  • Die-cast aluminium housing
  • Stainless steel fasteners in grade 316
  • Clear or frosted toughened glass
  • Suitable for drive-over with a maximum load of 2000 kg



Request a quote

Products in this range

kios 1 300x300px

Kios 1

Lumens: 89-317lm

Weight: 4.3kg

kios 5 300x300px6

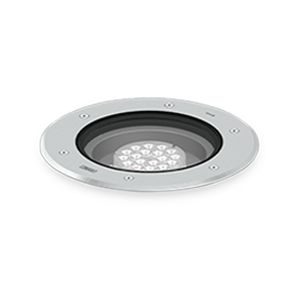

Kios 5

Lumens: 1063-1299lm

Weight: 6.7kg

kios 9 300x300px8

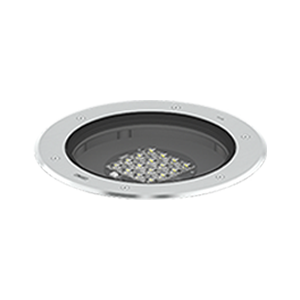

Kios 9

Lumens: 2426-2739lm

Weight: 9.2kg

Contact us to find out more

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP67
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Paths & walkways

Lighting

Light source:
Surface Mounted Device LED (SMD)
Lumen Range (lumens):
89-3320
LED qty:
7-18
Colour rendering (CRI):
>80Ra
L80 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Frame: Stainless steel
Glazing: Glass
Finish:
Powder coat
Product colours:
Stainless steel
Mounting:
Ground recessed

Dimensions

Completed Kios 1 Flat Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 305
  • B 220
  • C 145
Weight (kg):
4.4
Completed Kios 1 Emboss Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 305
  • B 220
  • C 145
Weight (kg):
4.4
Completed Kios 5 Emboss Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 375
  • B 290
  • C 145
Weight (kg):
7.2
Completed Kios 5 Flat Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 375
  • B 290
  • C 145
Weight (kg):
6.7
Completed Kios 9 Emboss Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 445
  • B 360
  • C 145
Weight (kg):
9.2
Completed Kios 9 Flat Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 445
  • B 360
  • C 145
Weight (kg):
9.2
