Cylindrical light stack

Contemporary style light stack, with slim profile and integral optics for exterior architectural lighting.

  • Available in three sizes, from 5m to 9m in height
  • With performance micro road lighting optic
  • Optional secondary window for LED pathway lighting

Request a quote

Options in this range

Name Dimensions (mm) Weight (kg)
Forza 1 Height: 5000 135
Forza 2 Height: 7000 190
Forza 3 Height: 9000 245

Features




Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

PAN 7621 Metallic silver colour swatch 548x548px

PAN 7621

Metallic silver

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Public realm

Lighting

Light source:
CosmoPolis
Distribution:
Performance Micro Road
Pathway (optional)

Power and control

Controls:
Photocell

Mechanical and installation

Materials:
Column: Galvanised steel
Glazing: Flat glass
Finish:
Two-pack acrylic wet spray-paint
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
PAN 7621 Metallic silver
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Root mounted
Flange plate

Downloads and dimensions

Forza LED pathway light photometry

Format: ZIP compressed file, (21 KB)

Forza product codes

Format: Adobe Acrobat PDF file, (26 KB)

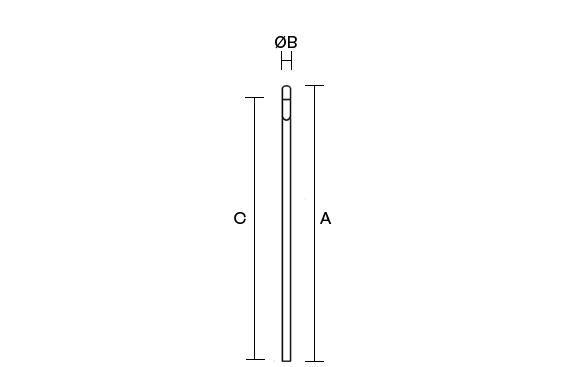

Forza 1 product dimension drawing W573px
Dimensions (mm):
  • A 5000
  • Ø B 245
  • C 4500
Weight (kg):
135
Forza 2 product dimension drawing W573px
Dimensions (mm):
  • A 7000
  • Ø B 245
  • C 6400
Weight (kg):
190

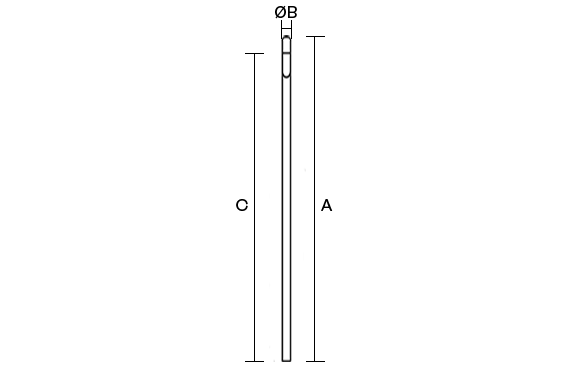

Forza 3 product dimension drawing W573px
Dimensions (mm):
  • A 9000
  • Ø B 245
  • C 8500
Weight (kg):
245
