Precision light, seamless design
Sky Wall by Focus Lighting delivers clean, contemporary illumination in a compact wall-mounted form. Its minimalist design and durable construction make it ideal for accenting and enhancing exterior surfaces.
Product features
Products in this range
Standard colours
|
YW355FGraphite Grey |
Y2370ISilver Grey |
YX355FCorten Brown |
SN351FBlack |
To personalise your scheme, other RAL colours available on request
Detailed Specification
Product specification
Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
3 - 4 m
Applications:
Buildings
Lighting
Light source:
High power LED
Lumen Range (lumens):
300 - 7000 lm
Power Range:
24 - 40 W
LED qty:
1
Distribution:
Asymmetric
Symmetric
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
3000K
4000K
Colour rendering (CRI):
80 Ra / 90Ra
Max efficacy (luminaire lumens):
175 lm/W
L90 Lifetime Estimate:
>100,000hrs
Power and control
Voltage:
220 - 240V
Drive Current Range:
608mA / 720mA
Dimming:
DALI, Programmable
Surge protection:
6 kV - 10kV
Mechanical and installation
Materials:
Body: High pressure die-cast aluminium
Lid: Spun aluminium
Glazing: Clear polycarbonate with UV-resistant acrylate
Lid: Spun aluminium
Glazing: Clear polycarbonate with UV-resistant acrylate
Finish:
Polyester powder coat
Product colours:
Graphite grey (YW355F)
Silver grey (Y2370I)
Black (Noir 900 Sablé SN351F)
Corten brown (YX355F Azko Nobel)
Silver grey (Y2370I)
Black (Noir 900 Sablé SN351F)
Corten brown (YX355F Azko Nobel)
Mounting:
Wall mount

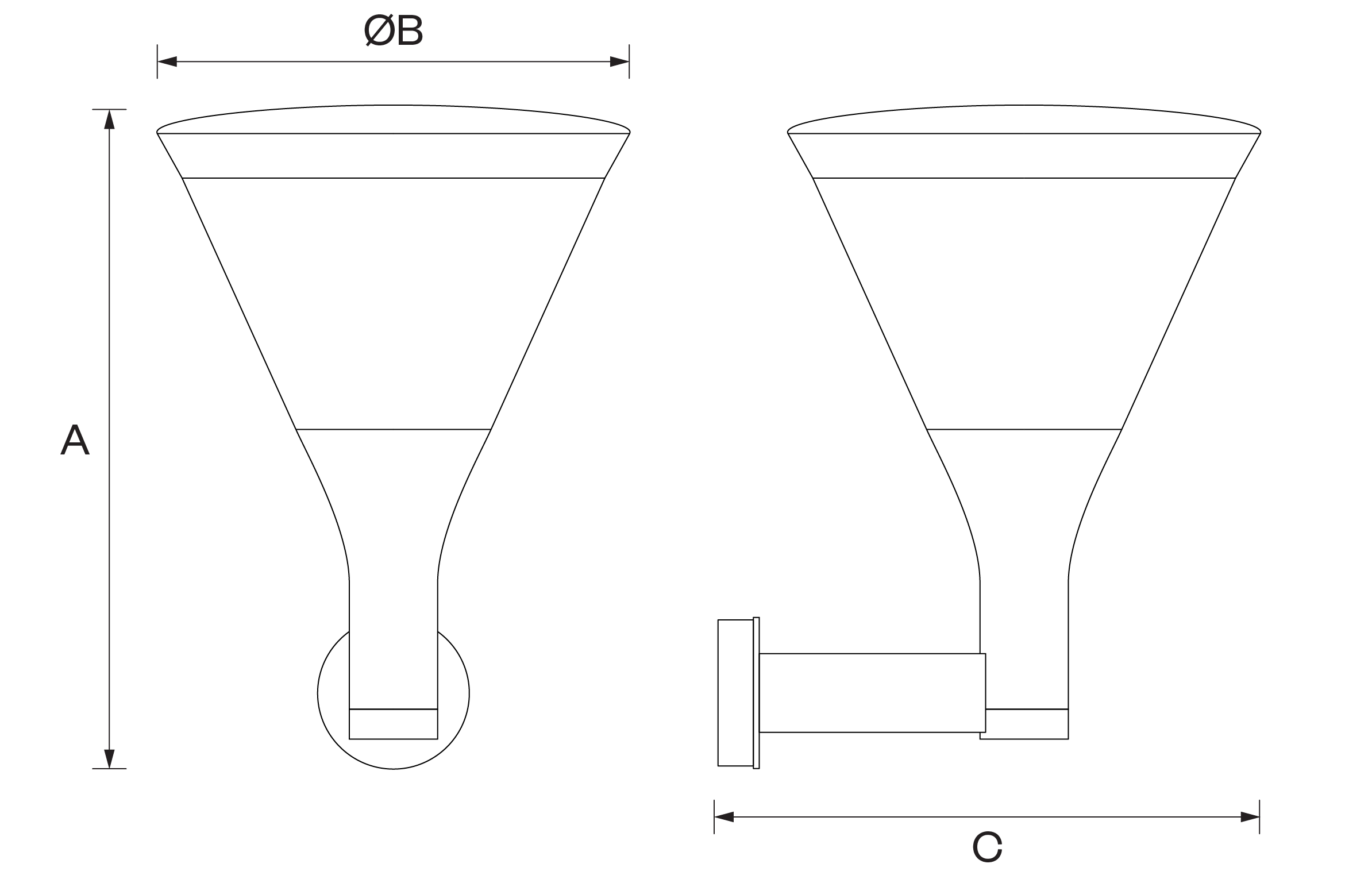

Dimensions
Dimensions (mm):
- A 670
- Ø B 480
- C 553
Weight (kg):
8.4 kg
8.4 kg
Windage (m2):
0.143 m2
0.143 m2
