Sky Park
Specification
Dimensions
Downloads (2)
Enquire now
website image product main banner 2000x1572px2

Elevating light, enhancing space



Sky Park by Focus Lighting combines sleek, minimalist design with powerful, ambient illumination. Built for both performance and durability, it enhances outdoor and public spaces with timeless elegance.

Product features

Elegant design and high-quality materials

The Sky Park luminaire features an elegant design crafted from high-quality materials, offering a refined lighting solution that enhances any contemporary outdoor space.

Contemporary lighting

The Sky Park luminaire complements contemporary lighting design with its streamlined form, premium materials, and effortless integration into modern outdoor spaces.

Products in this range

Sky Park



Sky Wall



Sky Bollard



Standard colours

RAL 7035 Light grey colour swatch 548x548px

YW355F

Graphite Grey

RAL 7046 Textured grey colour swatch 548x548px

Y2370I

Silver Grey

RAL 7046 Textured grey colour swatch 548x548px

YX355F

Corten Brown

RAL 9005 Fine textured black colour swatch 548x548px

SN351F

Black

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Mounting Height (m):
3 - 4 m
Applications:
Public realm
High street & road lighting
Car parks
Buildings

Lighting

Light source:
High power LED
Lumen Range (lumens):
300 - 7000 lm
Power Range:
24 - 40 W
LED qty:
1
Distribution:
Symmetric
Asymmetric
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80 Ra / 90Ra
Max efficacy (luminaire lumens):
175 lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
608mA / 720mA
Dimming:
DALI, Programmable
Surge protection:
6 kV - 10kV

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Lid: Spun aluminium
Glazing: Clear polycarbonate with UV-resistant acrylate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
Graphite grey (YW355F)
Silver grey (Y2370I)
Black (Noir 900 Sablé SN351F)
Corten brown (YX355F Azko Nobel)
Mounting:
Post Top: Ø60mm / Ø76mm (Ø90mm using accessory on Ø60mm spigot)

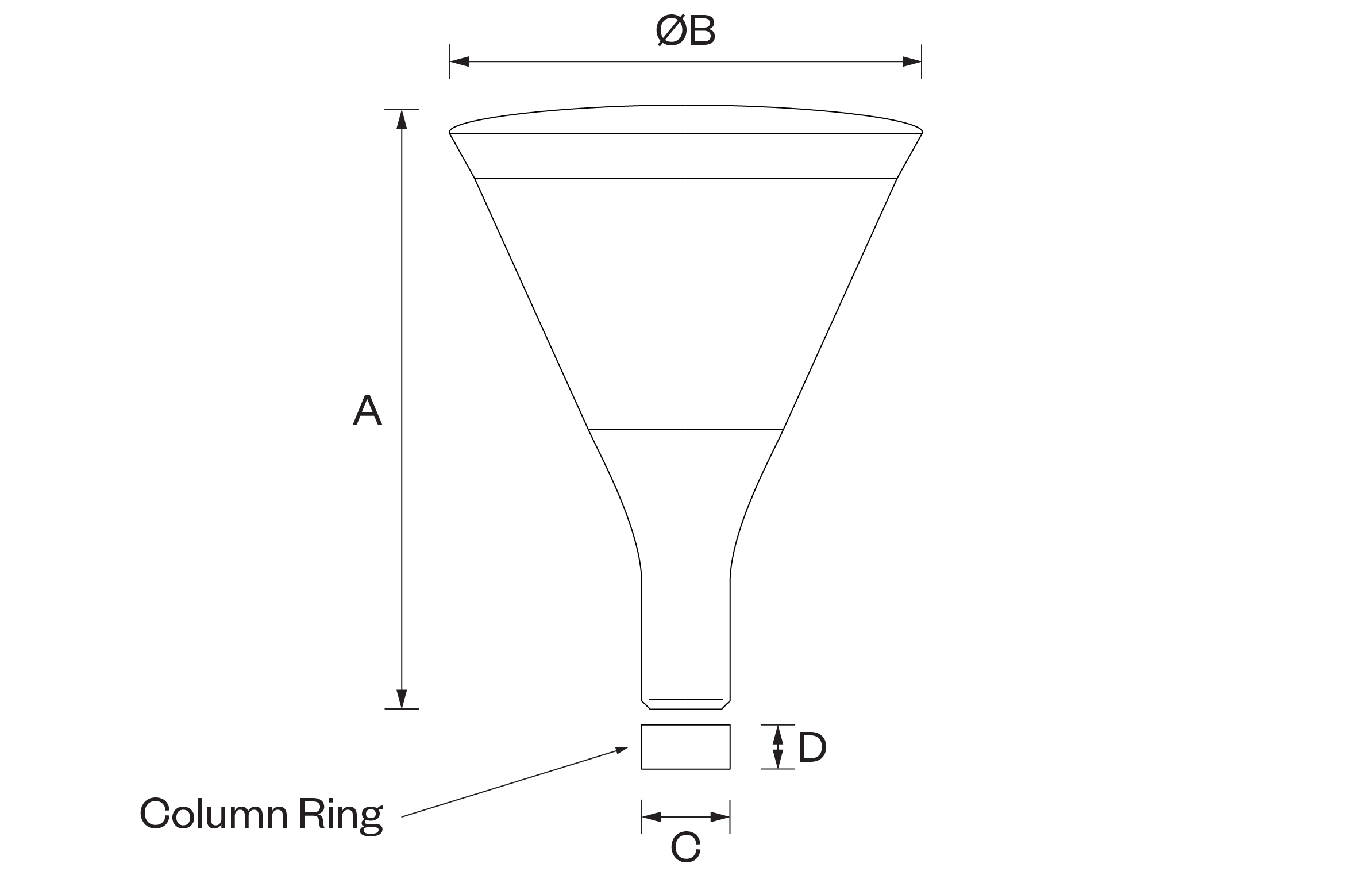

Dimensions

dww website dimensioned drawings sky park
Dimensions (mm):
  • A 618
  • Ø B 480
  • Ø C 90
  • D 47
Weight (kg):
8.4 kg
Windage (m2):
0.143 m2
