Jet 34

Change view:

Jet 32 Product slider Product image LIGMAN 2000x1572px

Downloads

Jet Wall family datasheet

Format: Adobe Acrobat PDF file, (4.4 MB)

Jet 33 34 37 38 installation instructions

Format: Adobe Acrobat PDF file, (262 KB)

Jet 34 datasheet

Format: Adobe Acrobat PDF file, (749 KB)

Surface facade luminaire

Rectangular form surface wall-mounted downlight. High performance, high output and numerous options ensure JET can be configured for any application.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Two cable entries for through wiring for JE-30393, JE-30413, JE-30383, JE-30403
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • High-efficiency optical reflector
  • Clear toughened glass
  • Integral control gear

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Light source:
Chip on Board LED (CoB)
Lumen Range (lumens):
2735-3494
Power Range:
39
LED qty:
1
Distribution:
Direct - Narrow 13°
Medium 20°
Wide 40°
Very wide 61°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 90lm/W
L90 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
900mA
Dimming:
On/Off, 1-10V, DALI

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Reflector: Aluminium
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface

Downloads and dimensions

Jet Wall family datasheet

Format: Adobe Acrobat PDF file, (4.4 MB)

Jet 33 34 37 38 installation instructions

Format: Adobe Acrobat PDF file, (262 KB)

Jet 34 datasheet

Format: Adobe Acrobat PDF file, (749 KB)

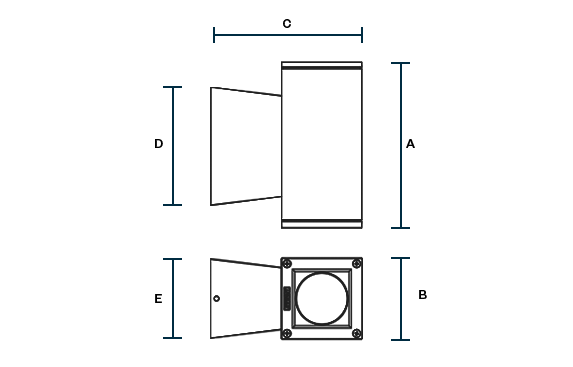

Completed Jet 34 Square Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 263
  • B 160
  • C 267
  • D 205
  • E 135
Weight (kg):
5.1
