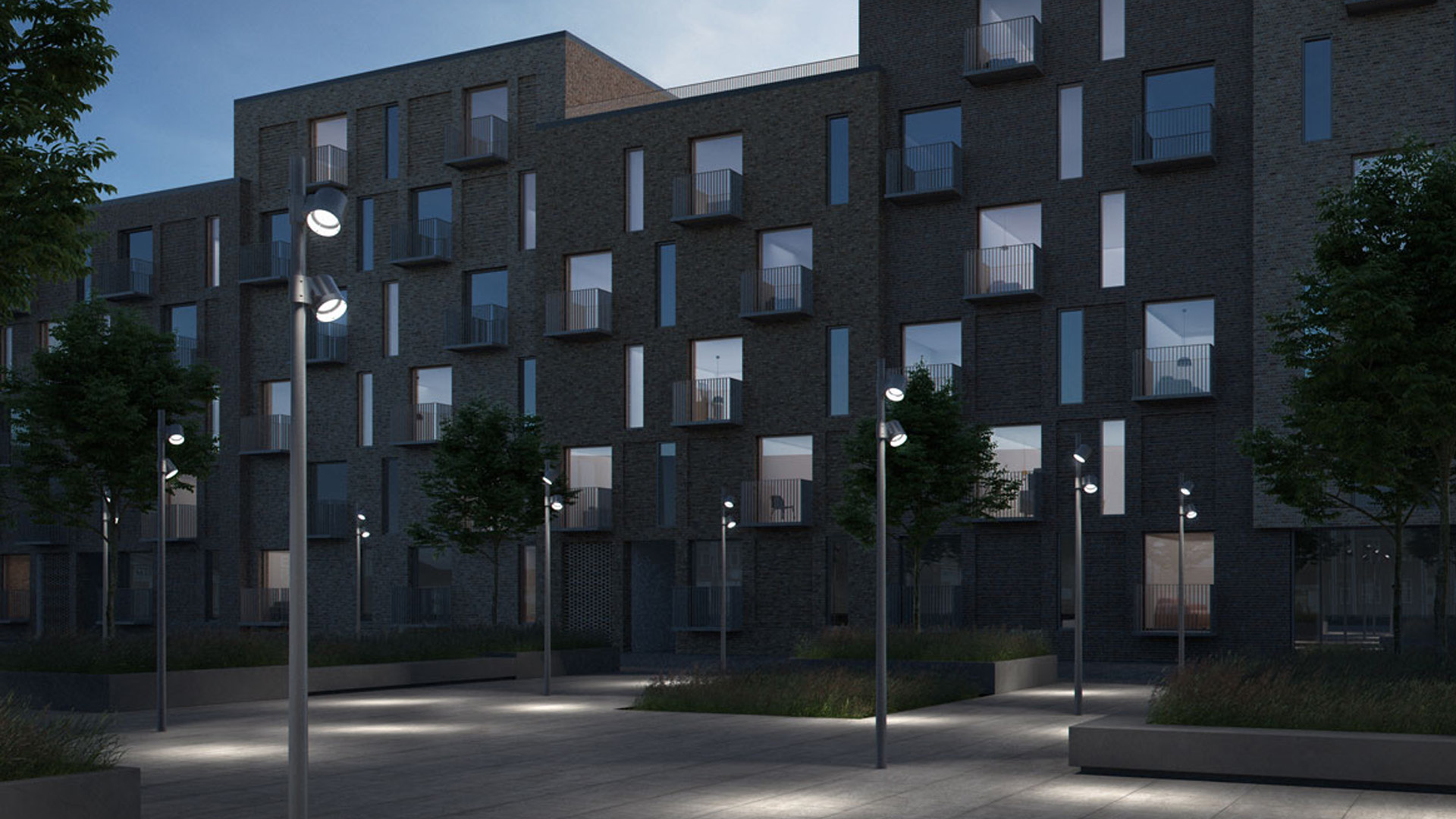

Turn Projectors and Floodlights Location image 1920x1080px Alt1

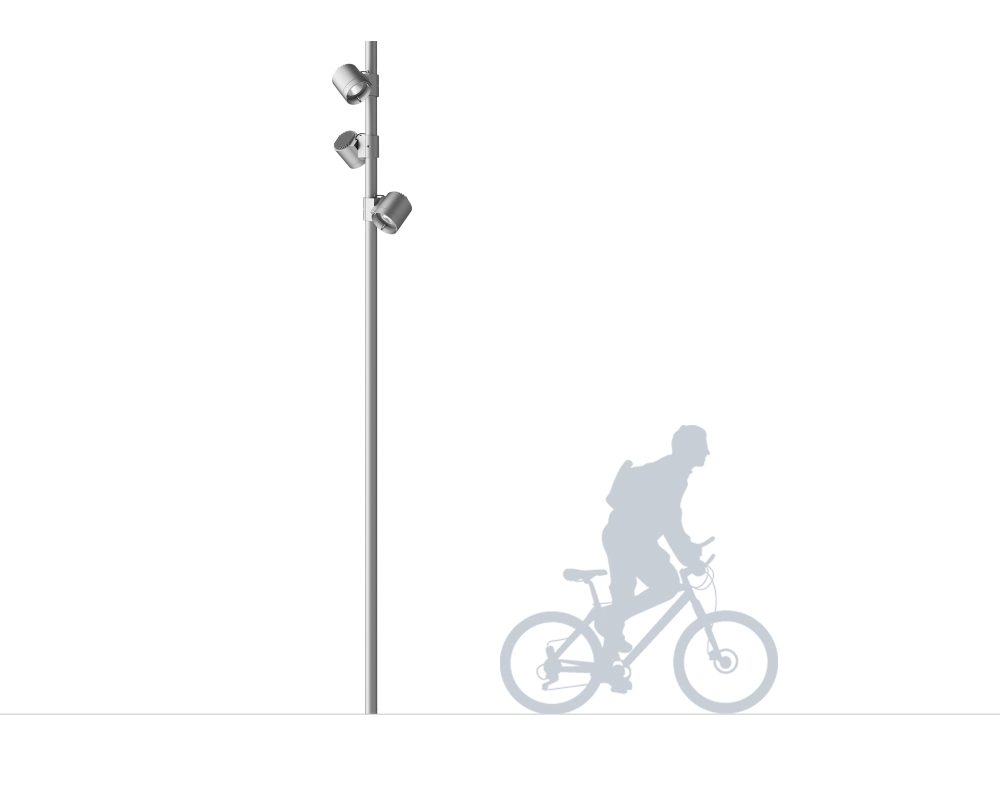

Turn Group Projector and Floodlights Product image 2000x1572px Alt1

Downloads

Turn brochure

Format: Adobe Acrobat PDF file, (8.3 MB)

Turn installation instructions

Format: Adobe Acrobat PDF file, (266 KB)

More views

Turn Group Projector and Floodlights Product image 2000x1572px Alt1

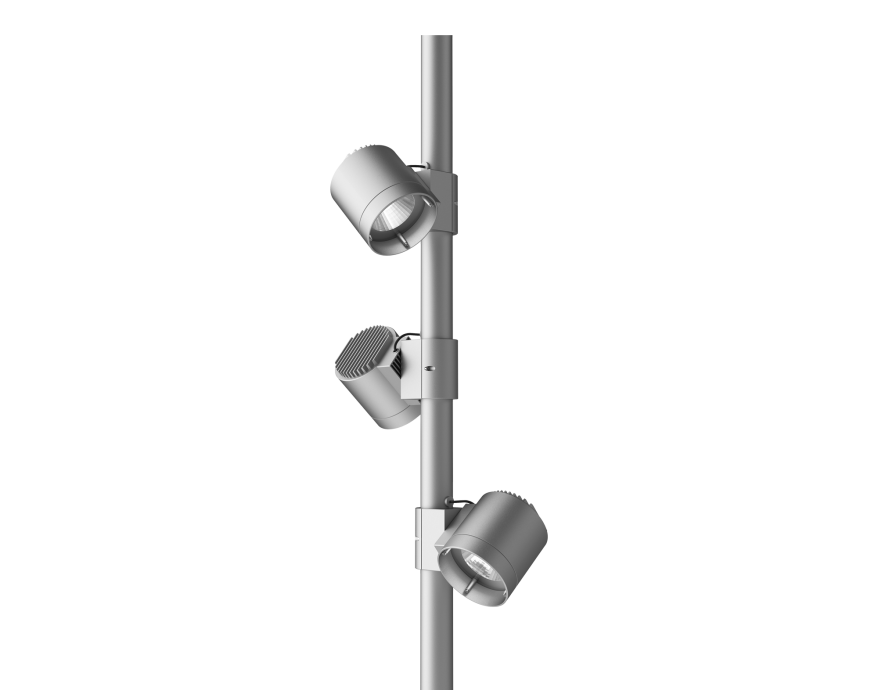

Turn Projector and Floodlights Product image 2000x1572px

Spot light luminaire, from Focus by DW Windsor

Turn is a spot light luminaire, in a minimalist, cylindrical design, designed by Danish Architects Fris & Moltke Design, to provide high quality lighting for public spaces.

  • Flexible bracket allows Turn to be adjusted in any direction
  • 3 lighting distributions available
  • From 1550 to 4700lm

Request a quote

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
CE
Applications:
Public realm
Buildings

Lighting

Light source:
Bridgelux V18
Lumen Range (lumens):
1520-4700
Power Range:
up to 35
LED qty:
1
Distribution:
Narrow Beam
Medium Beam
Wide Beam
Colour Temperature (CCT):
2700K
3000K
4000K
Colour rendering (CRI):
80Ra
90Ra (optional)
Max efficacy (luminaire lumens):
135lm/W
L80 Lifetime Estimate:
>100,000hrs

Power and control

Dimming:
1-10V, DALI
Surge protection:
L/N-GND: 8kV
L-N: 6kV
Driver:
Philips Xi FP

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Glazing: Clear glass with silk coating at the edge
Finish:
Polyester powder coat
Product colours:
SW302G Graphite grey
MW300D Silver grey
SN351F Black (Noir 900 Sablé)
YX355F Corten brown (Mars 2525)
Other RAL colours on request
Mounting:
Clamp bracket for Ø76mm column shaft

Downloads and dimensions

Turn brochure

Format: Adobe Acrobat PDF file, (8.3 MB)

Turn installation instructions

Format: Adobe Acrobat PDF file, (266 KB)

Turn product dimension drawing W573px
Dimensions (mm):
  • A 195
  • B 180
  • C 140
  • D 42
  • Ø E 76
Weight (kg):
5
Windage (m2):
0.053
