More Views

Our signature luminaire

Often imitated, never bettered. Our flagship product is still made as it was in 1976 - hand-crafted from Copper, using traditional techniques.  Offering high ingress protection, easy maintenance and award-winning optical performance.

  • Recommended for mounting at 4-6 metres
  • Available with a range of lamp and LED light sources to suit both performance and comfort applications

Request a quote



Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 1083-9280 12-93 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 2950-8430 22-55 2700K, 3000K, 4000K
Comfort CoB Chip on Board (CoB) Glass bowl refractor 1649-3297 20-39 2700K, 3000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K
CosmoPolis Lamp Diamond Optic® 45, 60, 90
SON-T Lamp Diamond Optic® 50, 70, 100
CDO-TT Lamp Diamond Optic® 50, 70, 100

Light engine options

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK07
Certifications:
CE, ENEC
Mounting Height (m):
4-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
1083-9280
LED qty:
1-64

Power and control

Controls:
Remote switch
Remote dim
Pre-programmed dim
Photocell switch
Photocell dim
Full CMS

Mechanical and installation

Materials:
Body: Copper
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Natural copper
Polished and lacquered copper
Polyester powder coat
Product colours:
Natural copper finish
Polished and lacquered copper finish
RAL 3005 Wine red
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 9005 Black
Other RAL colours available on special request
Mounting:
Traditional Frog: Ø76mm
Steel Spigot Plate: Ø76mm
Wall Bracket

Downloads and resources

Downloads

Windsor Street photometry

Format: ZIP compressed file, (6 MB)

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

LED Light Engine Design Guide

Format: Adobe Acrobat PDF file, (3.5 MB)

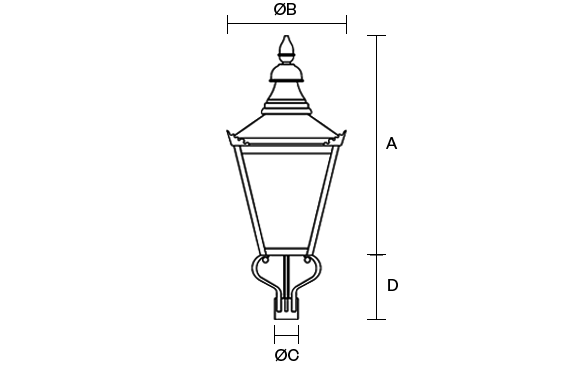

Dimensions

Dimensions (mm):
  • A 833
  • Ø B 440
  • Ø C 76
  • D 188
Weight (kg):
10.3
Windage (m2):
0.28
