Windsor Boulevard

Change view:

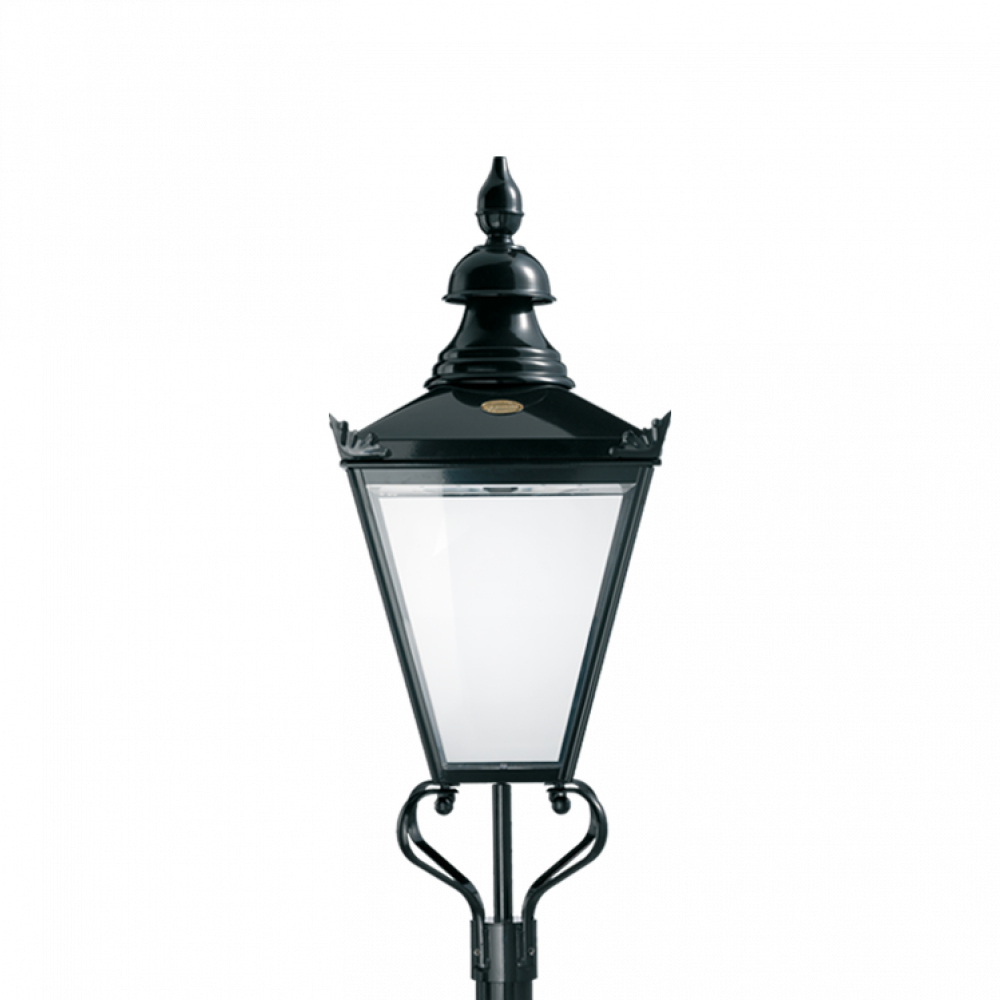

Windsor Boulevard Heritage Street Lighting Product image 748x748px Alt1

Downloads

Windsor installation instructions

Format: Adobe Acrobat PDF file, (517 KB)

Retrofit LED Solutions Brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Windsor product codes

Format: Adobe Acrobat PDF file, (43 KB)

Our signature luminaire

Often imitated, never bettered. Our flagship product is still made as it was in 1976 - hand-crafted from Copper, using traditional techniques.  Offering high ingress protection, easy maintenance and award-winning optical performance.

  • Recommended for mounting at 4-6 metres
  • Available with a range of lamp and LED light sources to suit both performance and comfort applications

Request a quote



Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 1083-9280 12-93 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 2950-8430 22-55 2700K, 3000K, 4000K
Comfort CoB Chip on Board (CoB) Glass bowl refractor 1649-3297 20-39 2700K, 3000K
Braun Gas Effect High power LED Diffuser Lumen Range Power Range 2700K, 3000K
CosmoPolis Lamp Diamond Optic® Lumen Range 45, 60, 90 Colour Temperature (CCT)
SON-T Lamp Diamond Optic® Lumen Range 50, 70, 100 Colour Temperature (CCT)
CDO-TT Lamp Diamond Optic® Lumen Range 50, 70, 100 Colour Temperature (CCT)

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK08
Mounting Height (m):
3-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
1083-9280
LED qty:
1-64

Power and control

Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Copper
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Natural copper
Polished and lacquered copper
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Natural copper finish
Polished and lacquered copper finish
Other RAL colours on request

Downloads and dimensions

Windsor installation instructions

Format: Adobe Acrobat PDF file, (517 KB)

Retrofit LED Solutions Brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Windsor product codes

Format: Adobe Acrobat PDF file, (43 KB)

Windsor Boulevard photometry

Format: ZIP compressed file, (11 MB)

Windsor Street product dimension drawing W573px
Dimensions (mm):
  • A 1005
  • Ø B 495
  • Ø C 76
  • D 188
Weight (kg):
12.3
Windage (m2):
0.34
