Stratum 450

Change view:

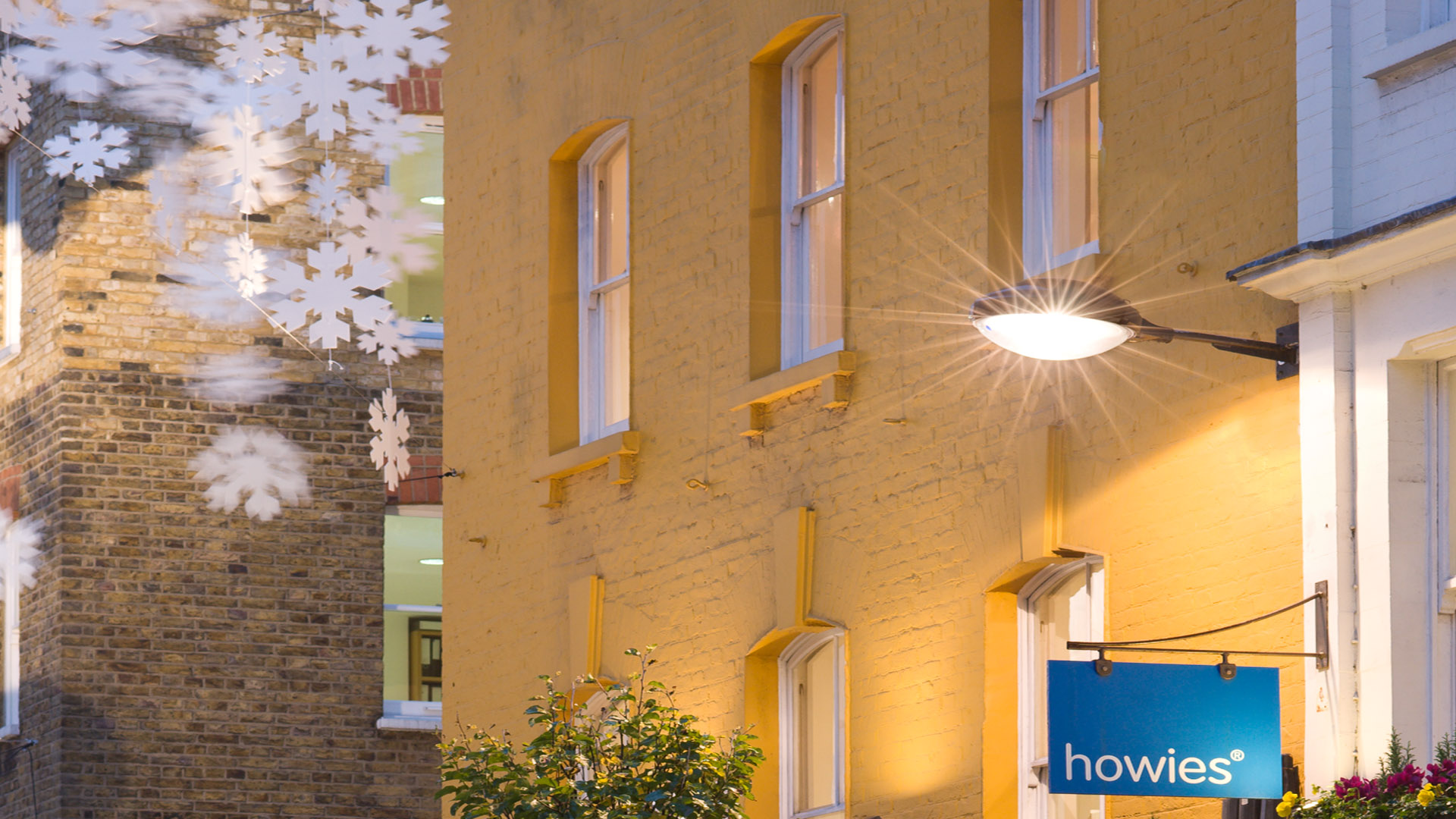

Stratum 450 Street Lighting Location image 1920x1080px
Stratum Bowl Street Lighting Product image 2000x1572px Alt2

Downloads

Stratum brochure

Format: Adobe Acrobat PDF file, (1.3 MB)

Stratum 450 photometry

Format: ZIP compressed file, (3.8 MB)

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

More views

Stratum Bowl Street Lighting Product image 2000x1572px Alt2

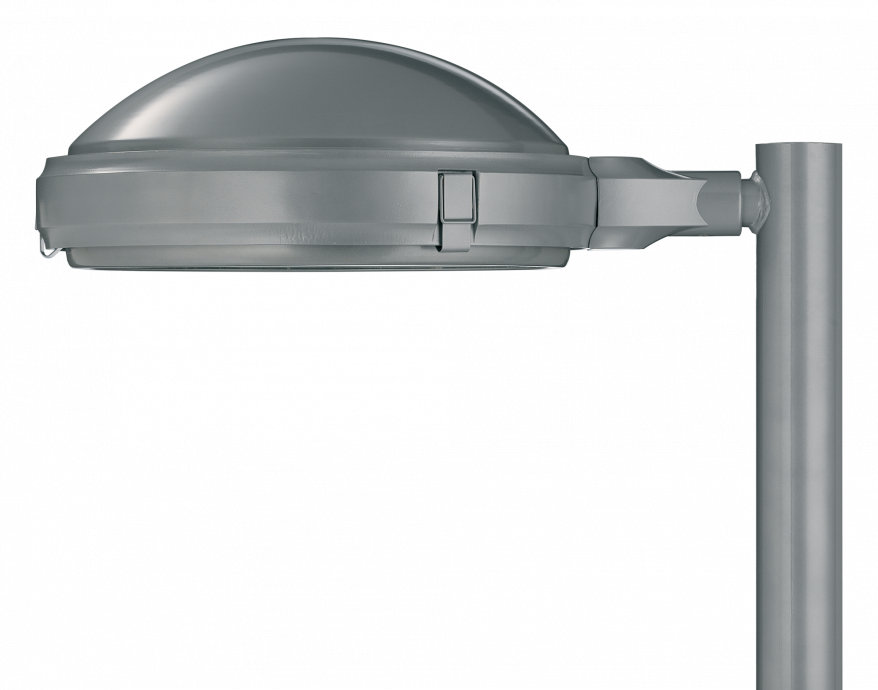

Stratum Flatglass Street Lighting Product image 2000x1572px

Elegant streamlined luminaire

Stratum is one of our most elegant luminaires - the streamlined convex canopy offers unparalleled performance, and the minimal decorative detail is complementary to any scheme.

  • Performance LED light engine available for excellent energy savings
  • For mounting at 4-8 metres
  • Flat glass glazing is available for zero light pollution

Request a quote

Options in this range

Name Light source Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED 2872-15224 22-117 2700K, 3000K, 4000K
CosmoPolis Lamp 45, 60, 90, 140
SON-T Lamp 50, 70, 100, 150
CDO-TT Lamp 50, 70, 100, 150

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-8
Applications:
High street & road lighting
Car parks
Paths & walkways

Lighting

Lumen Range (lumens):
2872-15224
LED qty:
16-64

Power and control

Voltage:
220-240V
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Polycarbonate bowl or Flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
PAN 7621 Metallic silver
RAL 9007 Metallic grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
Other RAL colours on request
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm
Pendant Easy-fit™: Ø42.4mm
Pendant Threaded: 1¼" BSP

Downloads and dimensions

Stratum brochure

Format: Adobe Acrobat PDF file, (1.3 MB)

Stratum 450 photometry

Format: ZIP compressed file, (3.8 MB)

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Stratum product codes

Format: Adobe Acrobat PDF file, (62 KB)

Stratum 450 Flat glass product dimension drawing W573px
Dimensions (mm):
  • A 202
  • Ø B 500
Weight (kg):
13.7
Windage (m2):
0.1
Stratum 450 product dimension drawing W573px2
Dimensions (mm):
  • A 285
  • Ø B 500
Weight (kg):
13.2
Windage (m2):
0.13
