Strand C

Change view:

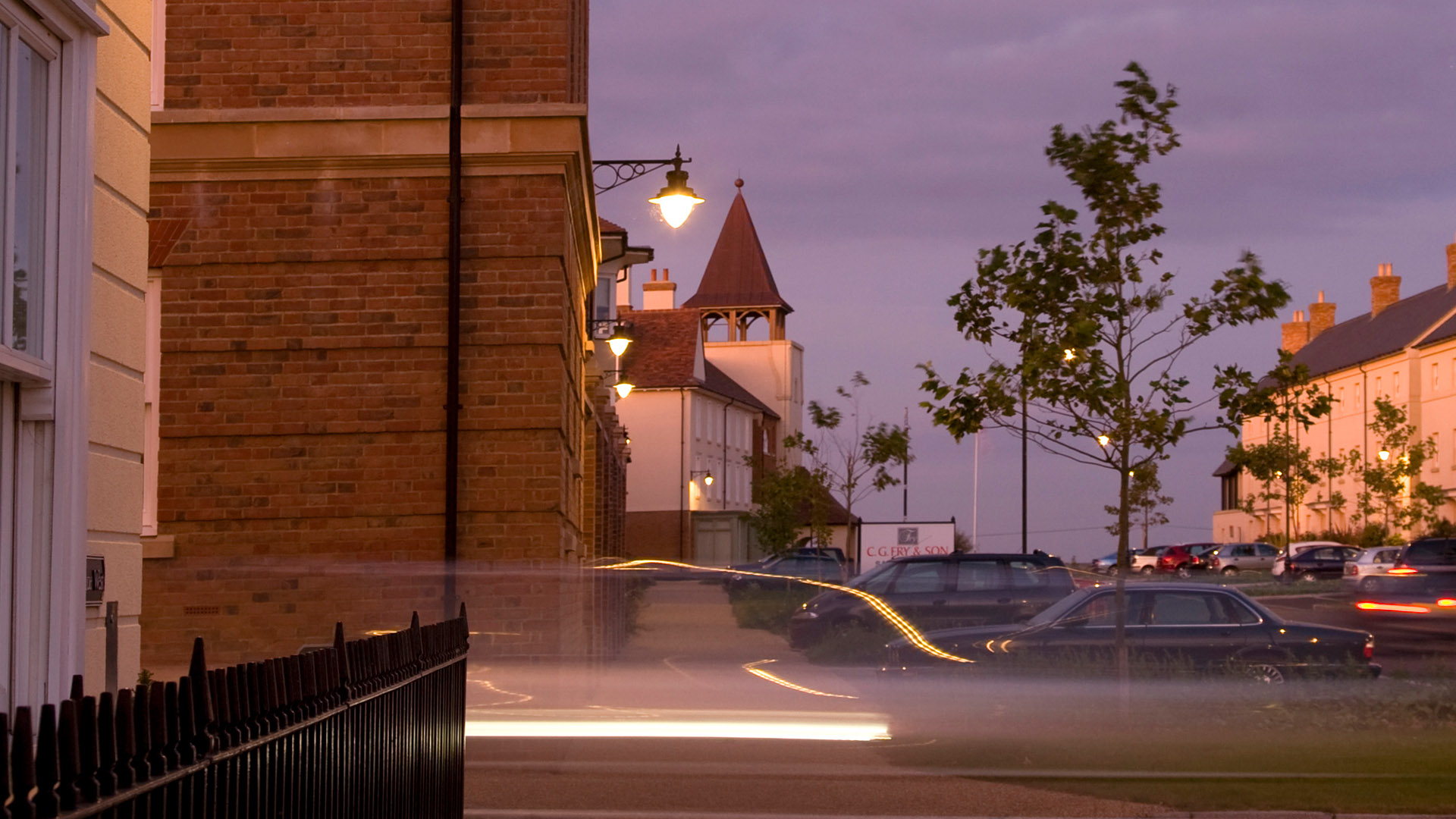

Strand C Heritage Lighting Location image 1920x1080px

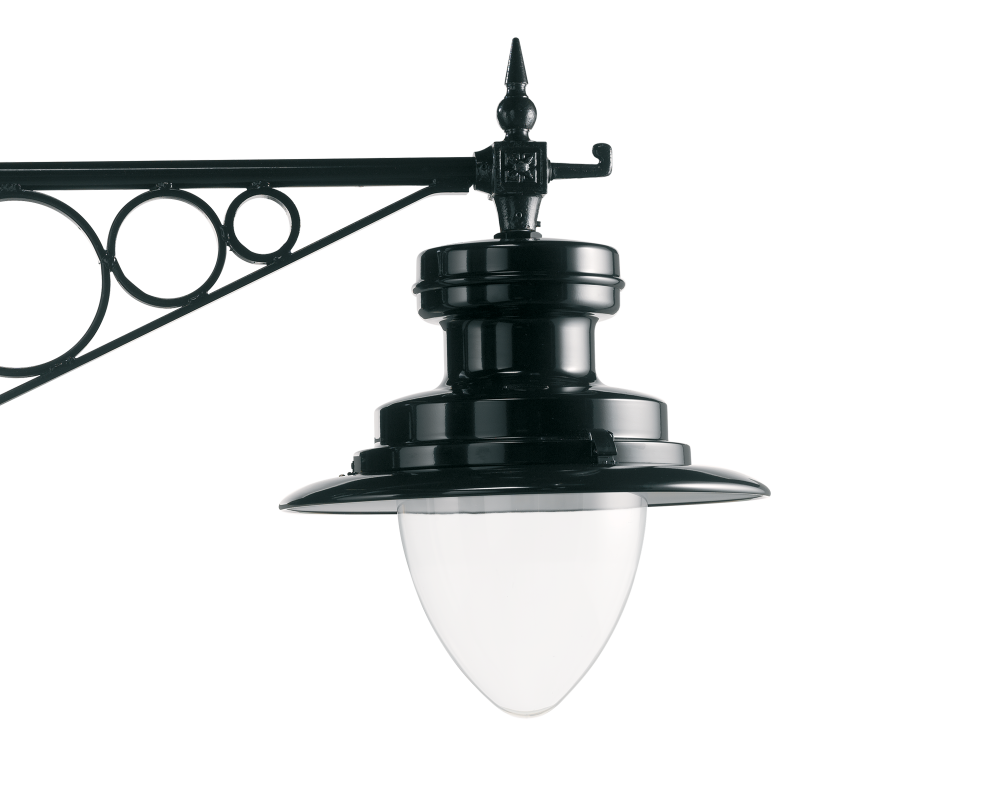

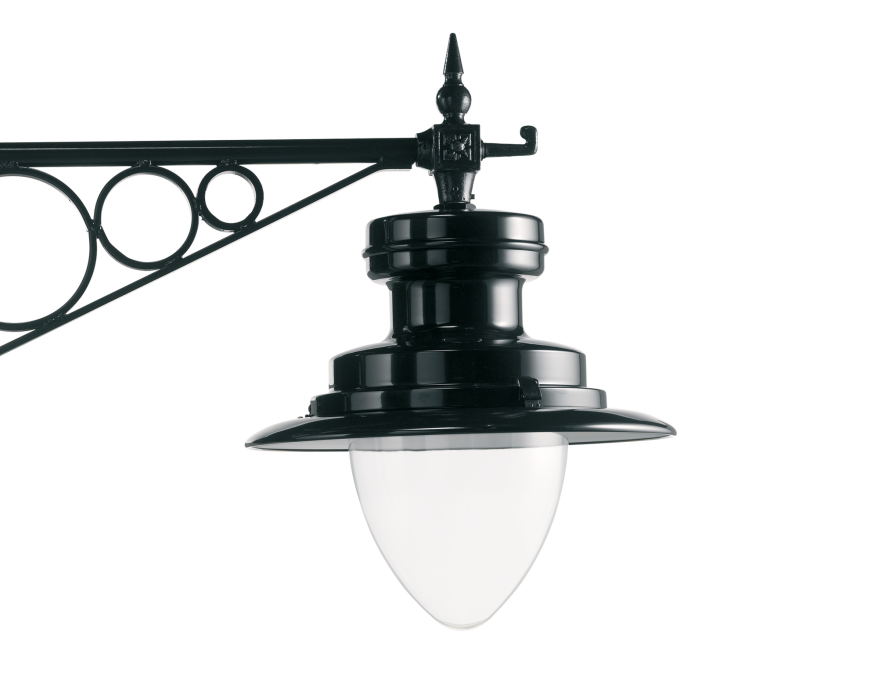

Strand C Tear drop Wide brim Heritage Street Lighting Product image 2000x1572px

Downloads

Heritage lighting brochure

Format: Adobe Acrobat PDF file, (12 MB)

Performance LED Product Performance Matrix

Format: Adobe Acrobat PDF file, (147 KB)

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

A versatile pendant

One of our most popular heritage luminaires, Strand is inspired by traditional railway gas lanterns. Strand can be bracket or column-mounted, easy to install and maintain, and suitable for various applications from residential areas to main roads and city centres.

  • Recommended for mounting at 4-6 metres
  • Available in both lamped light sources or LED
  • Exceptional ease of maintenance via stainless steel over-centre latches
  • Weighs just 5.5kg

Contact us

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 1564-6252 12-55 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 3526-8337 22-55 2700K, 3000K, 4000K
Comfort CoB® Chip on Board (CoB) Glass bowl refractor 953-3811 8-40 2700K, 3000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
953-8337
LED qty:
1-16

Power and control

Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Sensor ready

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Easy-fit™
Threaded: 1" BSP

Downloads and dimensions

Heritage lighting brochure

Format: Adobe Acrobat PDF file, (12 MB)

Performance LED Product Performance Matrix

Format: Adobe Acrobat PDF file, (147 KB)

Comfort CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (106 KB)

Performance CoB Product Performance Matrix

Format: Adobe Acrobat PDF file, (109 KB)

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Strand C product datasheet

Format: Adobe Acrobat PDF file, (96 KB)

Strand product codes

Format: Adobe Acrobat PDF file, (84 KB)

Strand Ely Installation Instructions

Format: Adobe Acrobat PDF file, (402 KB)

Strand C Swan Neck Wall Bracket

Format: Adobe Acrobat PDF file, (170 KB)

Strand photometry

Format: ZIP compressed file, (10 MB)

Strand C product dimension drawing W573px
Dimensions (mm):
  • A 498
  • Ø B 480
Weight (kg):
5.5
Windage (m2):
0.11
