Strand B

Change view:

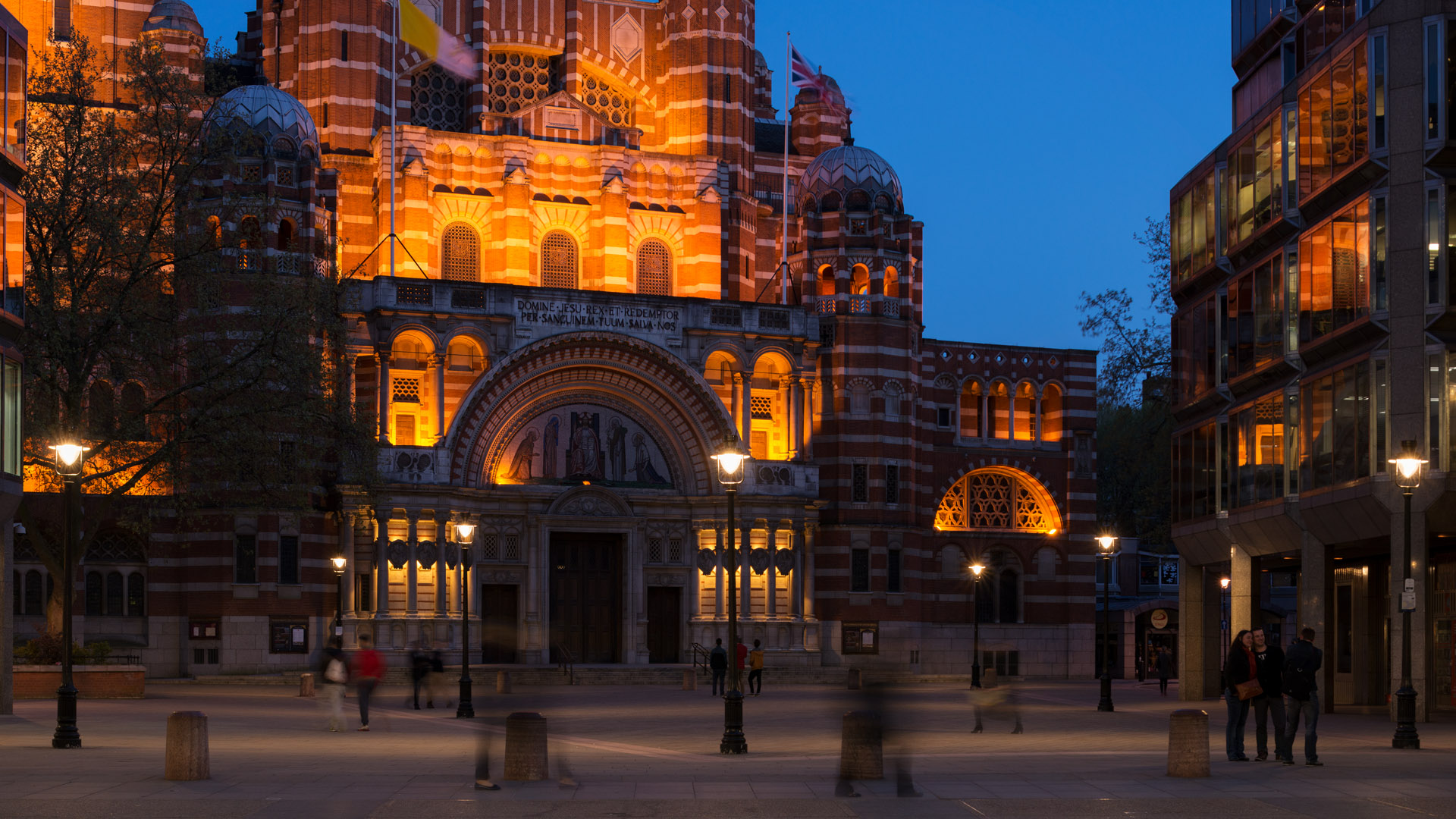

Strand B Heritage Lighting Location image 1920x1080px Alt1

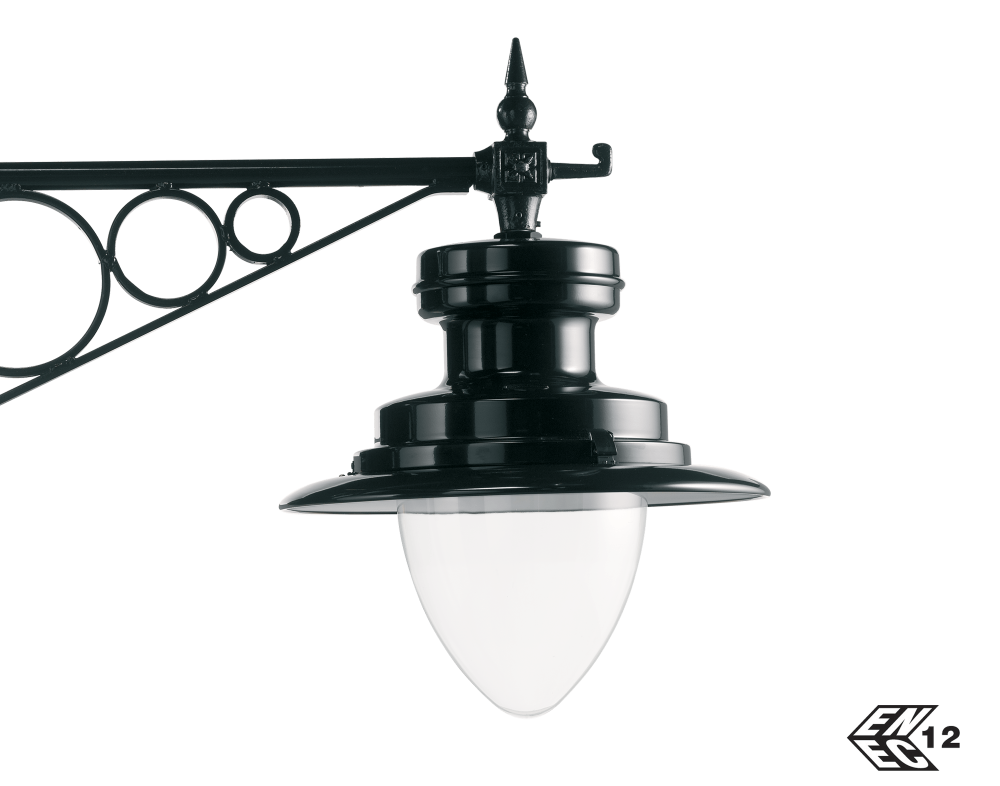

Strand B Heritage Street Lighting ENEC Product image 2000x1572px

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Strand B photometry

Format: ZIP compressed file, (3.9 MB)

Timeless traditional style meets modern performance

One of our most popular heritage luminaires. Suitable for minor roads to car parks and city centres.

  • Recommended for mounting at 4-8 metres
  • Available in both lamped light sources or LED
  • Exceptional ease of maintenance via stainless steel over-centre latches

Request a quote

Options in this range

Name Light source Distribution Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED Diamond+ 3008-10265 22-82 2700K, 3000K, 4000K
Performance CoB Chip on Board (CoB) Diamond+ CoB 3526-8337 22-55 2700K, 3000K, 4000K
Comfort CoB Chip on Board (CoB) Glass bowl refractor 953-3811 8-40 2700K, 3000K
Braun Gas Effect High power LED Diffuser 2700K, 3000K
CosmoPolis Lamp Diamond Optic® 45, 60, 90
SON-T Lamp Diamond Optic® 70, 100
CDO-TT Lamp Diamond Optic® 70, 100

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE, ENEC
Mounting Height (m):
4-8
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
953-10265
LED qty:
1-32

Power and control

Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Easy-fit™
Threaded: 1" BSP

Downloads and resources

Downloads

Retrofit LED Solutions brochure

Format: Adobe Acrobat PDF file, (1.8 MB)

Light Engine design guide

Format: Adobe Acrobat PDF file, (6.6 MB)

Strand B photometry

Format: ZIP compressed file, (3.9 MB)

Strand product codes

Format: Adobe Acrobat PDF file, (100 KB)

Dimensions

Strand B product dimension drawing W573px
Dimensions (mm):
  • A 575
  • Ø B 585
Weight (kg):
8.5
Windage (m2):
0.15
Strand B product dimension drawing W573px
Dimensions (mm):
  • A 575
  • Ø B 484
Weight (kg):
8.5
Windage (m2):
0.15
