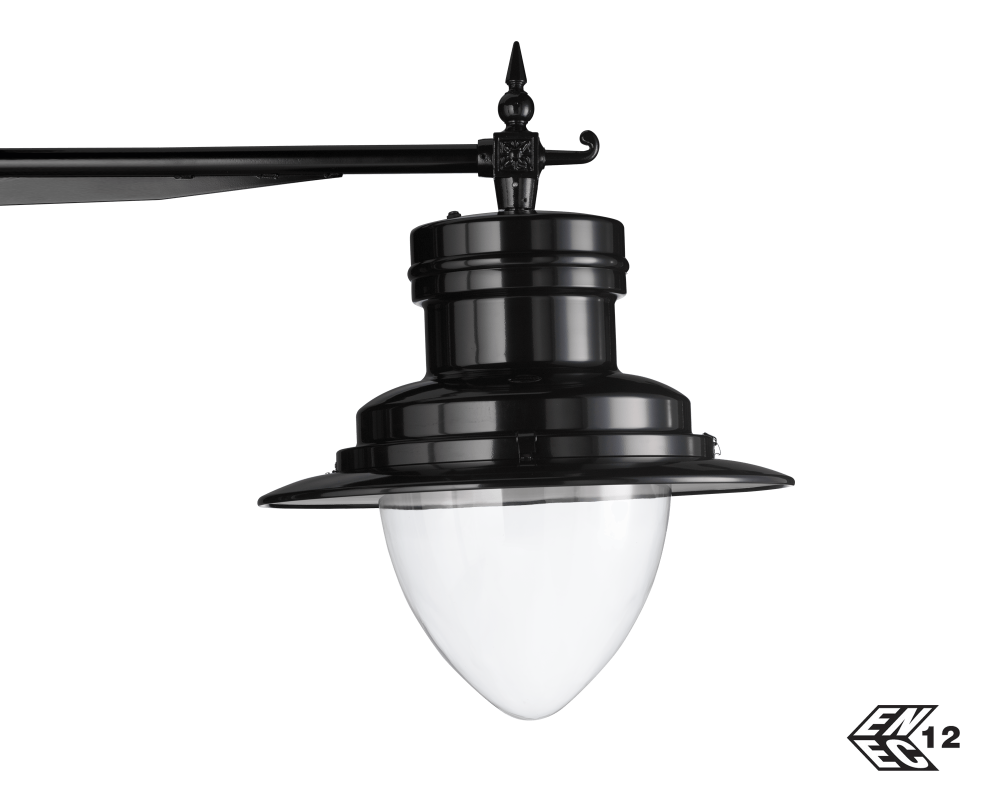

Timeless traditional style meets modern performance

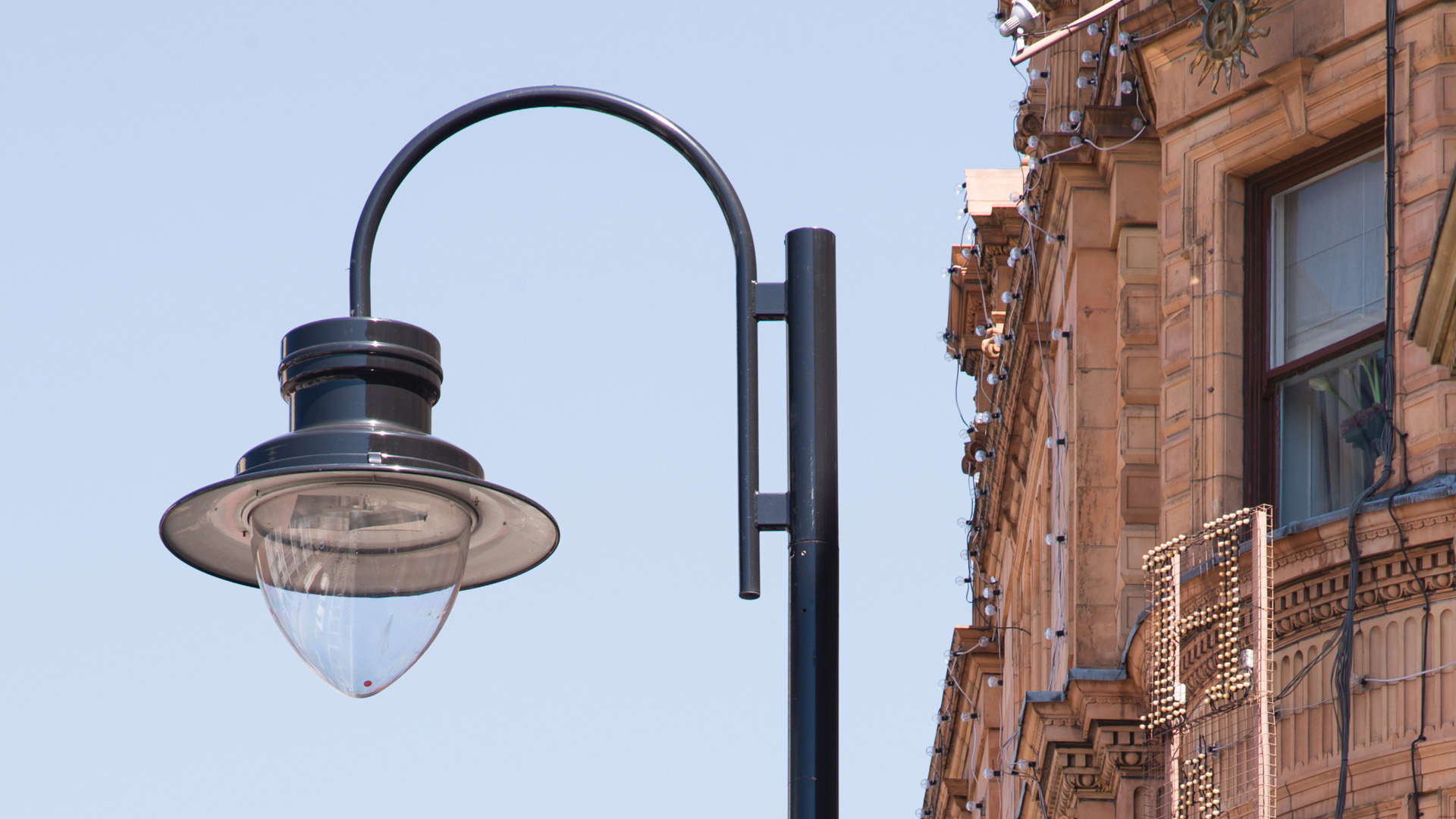

One of our most popular heritage luminaires. Suitable for main roads to car parks and city centres.
- Recommended for mounting at 6-10 metres
- Available in both lamped light sources or LED
- Exceptional ease of maintenance via stainless steel over-centre latches
Request a quote
Request a quote
Options in this range
| Name | Light source | Distribution | Lumen Range (lumens) | Power Range | Colour Temperature (CCT) | |
|---|---|---|---|---|---|---|
| Performance LED | High power LED | Diamond+ | 3008-18069 | 22-137 | 2700K, 3000K, 4000K | |
| Performance CoB | Chip on Board (CoB) | Diamond+ CoB | 3526-8337 | 22-55 | 2700K, 3000K, 4000K | |
| SON-T | Lamp | Diamond Optic® | 100, 150 | |||
| CDO-TT | Lamp | Diamond Optic® | 100, 150 | |||
| CosmoPolis | Lamp | Diamond Optic® | 90, 140 |
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE, ENEC
Mounting Height (m):
6-10
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks
High street & road lighting
Paths & walkways
Rail
Car parks
Lighting
Lumen Range (lumens):
3008-18069
LED qty:
1-64
Power and control
Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
Integral CMS
Sensor ready
Part night switching
Pre-programmed dimming
Integral CMS
Sensor ready
Mechanical and installation
Materials:
Body: Aluminium
Glazing: Clear polycarbonate
Seals: Silicone
Glazing: Clear polycarbonate
Seals: Silicone
Finish:
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Easy-fit™
Threaded: 1.25" BSP
Threaded: 1.25" BSP
Downloads and resources
Downloads
Retrofit LED Solutions brochure
Format: Adobe Acrobat PDF file, (1.8 MB)
Light Engine design guide
Format: Adobe Acrobat PDF file, (6.6 MB)
Please enter email address to download design guide
Strand A photometry
Format: ZIP compressed file, (6 MB)
Strand product codes
Format: Adobe Acrobat PDF file, (100 KB)
Dimensions
Dimensions (mm):
- A 643
- Ø B 670
Weight (kg):
11.5
11.5
Windage (m2):
0.19
0.19
Dimensions (mm):
- A 643
- Ø B 527
Weight (kg):
11.5
11.5
Windage (m2):
0.19
0.19
