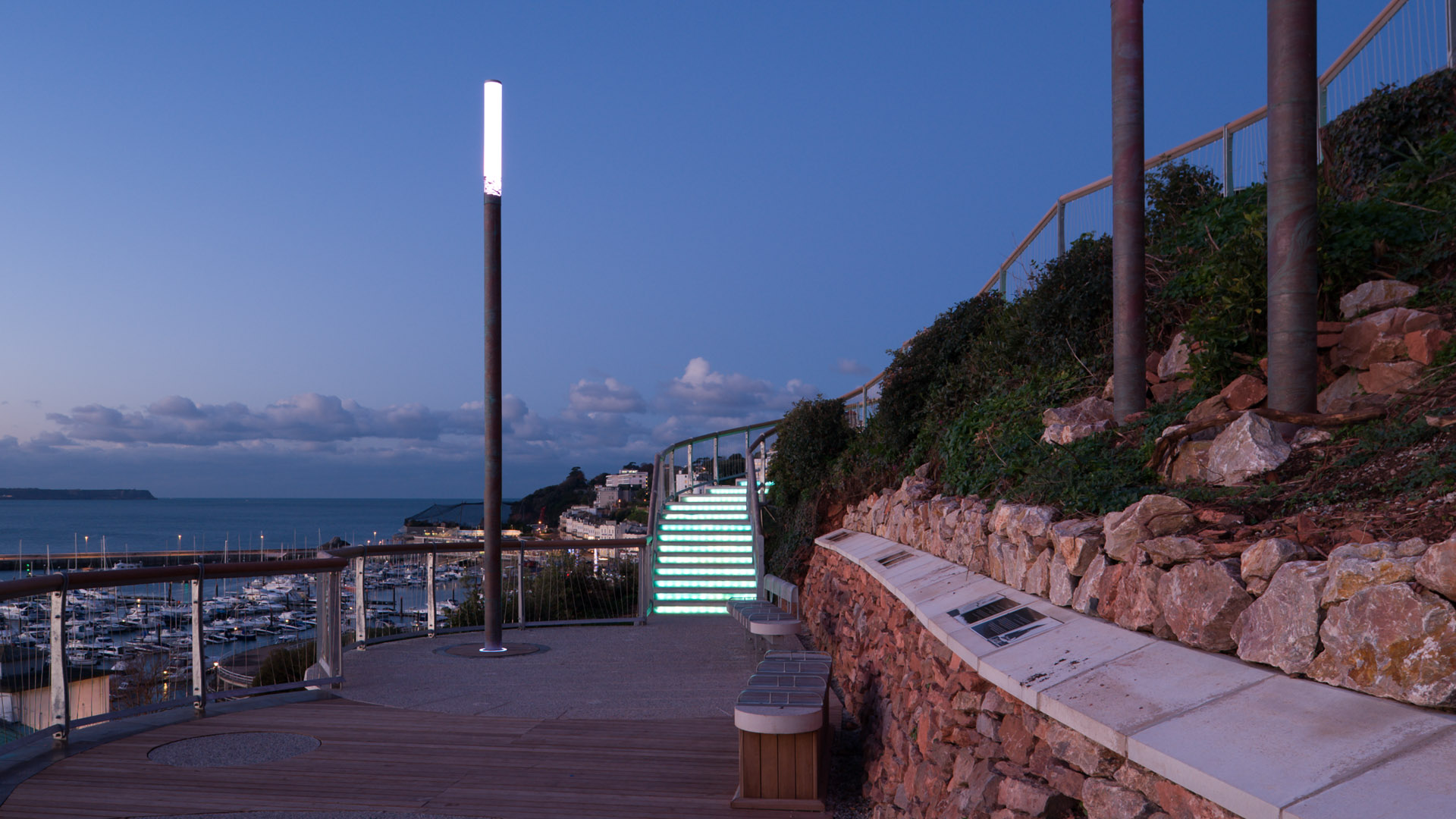

Silka Max Light Stack Location image 1920x1080px Alt6

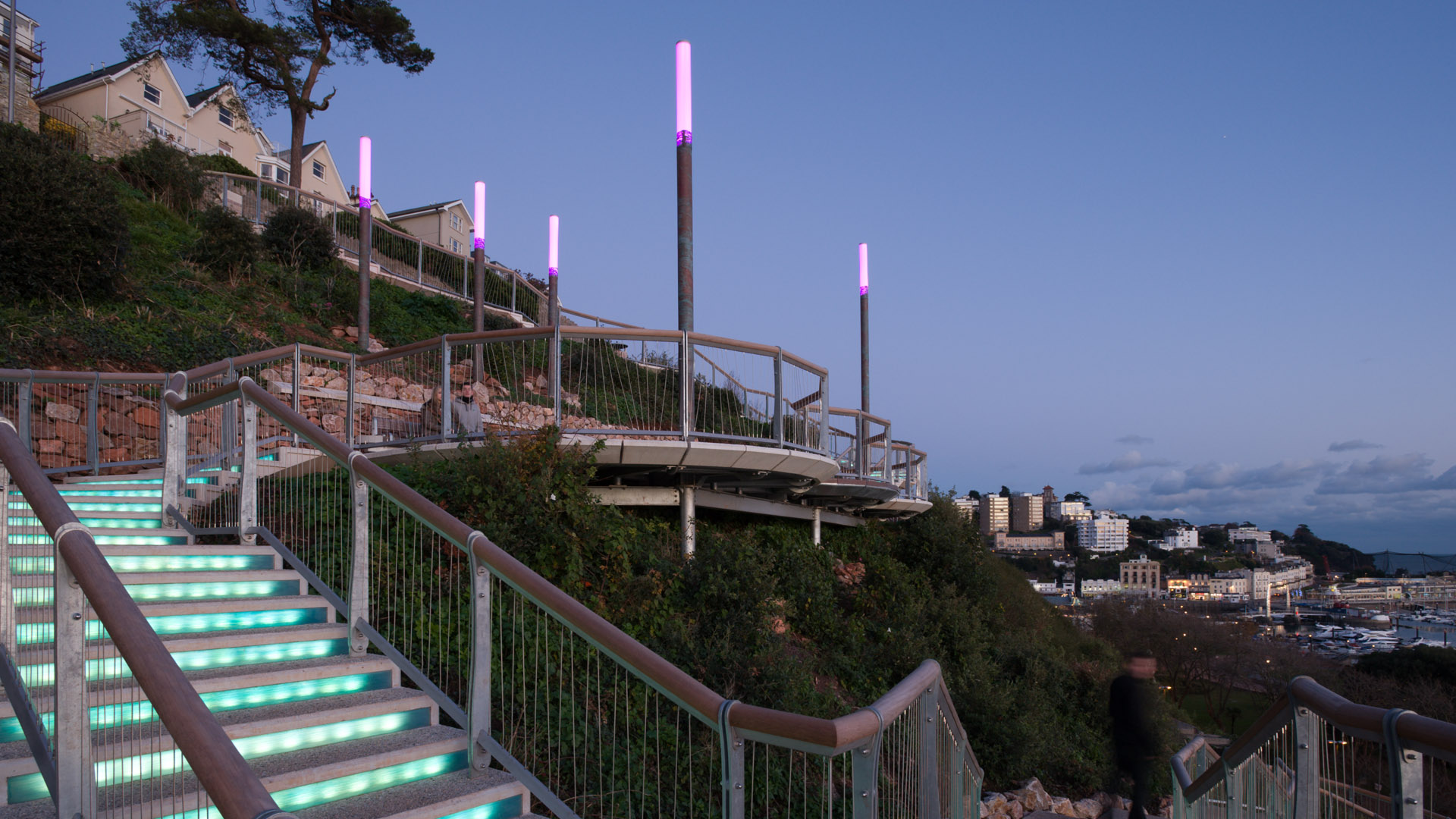

Silka Max Light Stack Location image 1920x1080px Alt7

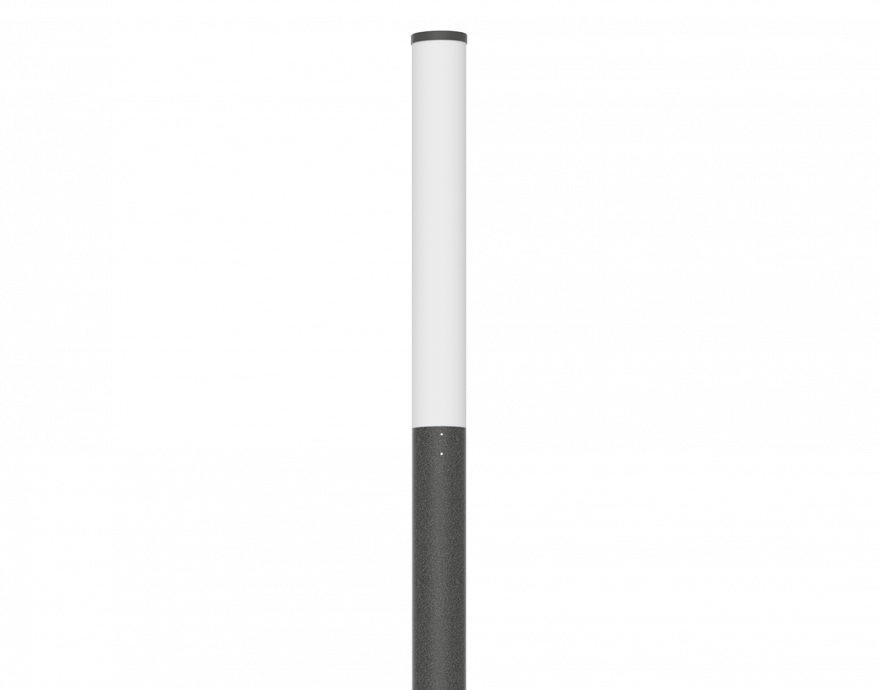

New Silka Max Product slider Product image Lighting 2000x1572px

Downloads

Silka brochure

Format: Adobe Acrobat PDF file, (6.4 MB)

Silka Max product datasheet

Format: Adobe Acrobat PDF file, (124 KB)

Silka product codes

Format: Adobe Acrobat PDF file, (71 KB)

More views

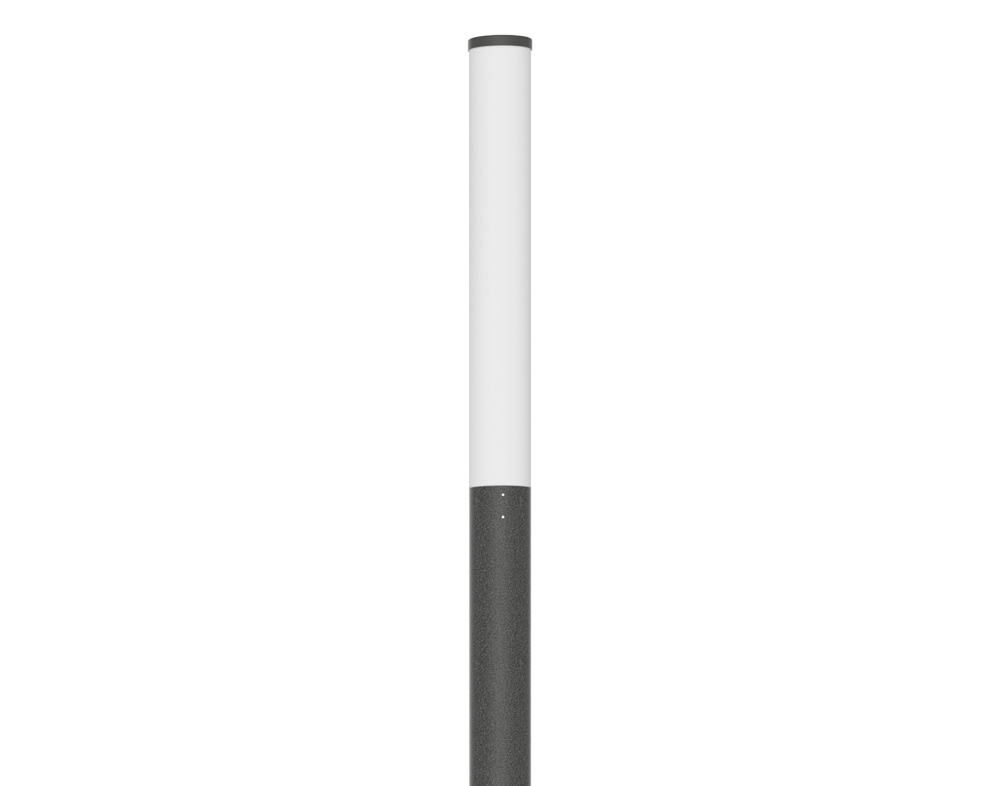

New Silka Max Product slider Product image Lighting 2000x1572px

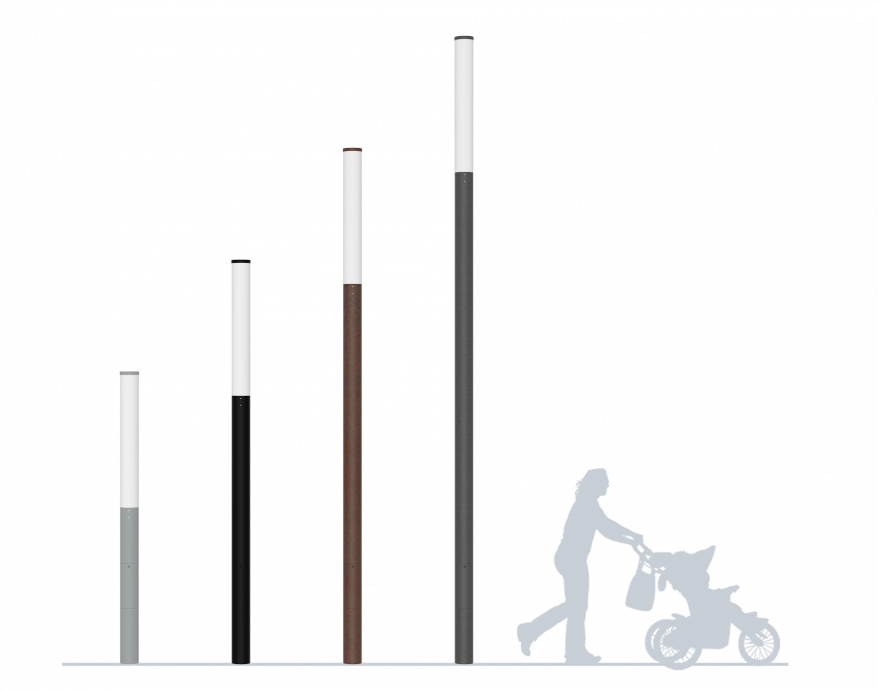

New Silka Max Family w colours Woman silouhette Product slider Product image Lighting 2000x1572px2
Silka Max
Silka
/ Silka Max
Silka brochure
Silka Max product datasheet
Silka product codes
Silka and Silka Max photometry
Silka Installation Instructions March 2020
Contact

Light. Stacked.

More designers than ever before are using luminaires as an art form, transforming spaces through colour or people-centred design that informs or guides.

A professional lightstack, Silka provides dynamic architectural illumination. It also provides opportunities beyond just illumination.

With an elegant design, which is configurable to suit your architectural environment, Silka is available in multiple column and glazing configurations providing decorative illumination for public realm and open spaces. Perfect for orientation and area waymarking.

  • 1200mm height light source
  • Up to 3,530 lumens
  • Seamless aluminium construction
  • Choice of 2700K, 3000K or 4000K or RGBW
  • Bluetooth control option via Casambi or Tridonic

Request a quote

Options in this range

Name Dimensions (mm) Weight (kg) Windage (m2)
Silka Max 2 Height: 2600 18.5 (Flange plate), 23.3 (Root) 0.445
Silka Max 3 Height: 3600 25.5 (Flange plate), 30.3 (Root) 0.615
Silka Max 4 Height: 4600 32.5 (Flange plate), 37.3 (Root) 0.785
Silka Max 5 Height: 5600 39.5 (Flange plate), 45.7 (Root) 0.955

Detailed Specification

Product specification

Electrical Class:
I, II
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Mounting Height (m):
2-5.6
Applications:
Public realm
Paths & walkways

Lighting

Light source:
LED
Lumen Range (lumens):
3530
Power Range:
59
Distribution:
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
RGBW (2700K)
RGBW (4000K)
Colour rendering (CRI):
90Ra (3 SDCM)
Max efficacy (luminaire lumens):
60
L70 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Dimming:
1 to 100%
Driver:
24V DC constant voltage

Mechanical and installation

Materials:
Body: aluminium
Glazing: Opal high impact-resistant PMMA
Finish:
Textured polyester powder coat
Product colours:
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
RAL 9016 White
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Operating temp (°C):
-25° to +45°
Mounting:
Root mounted
Flange plate

Downloads and dimensions

Silka brochure

Format: Adobe Acrobat PDF file, (6.4 MB)

Download

Silka Max product datasheet

Format: Adobe Acrobat PDF file, (124 KB)

Download

Silka product codes

Format: Adobe Acrobat PDF file, (71 KB)

Download

Silka and Silka Max photometry

Format: ZIP compressed file, (26 KB)

Download

Silka Installation Instructions March 2020

Format: Adobe Acrobat PDF file, (478 KB)

Download

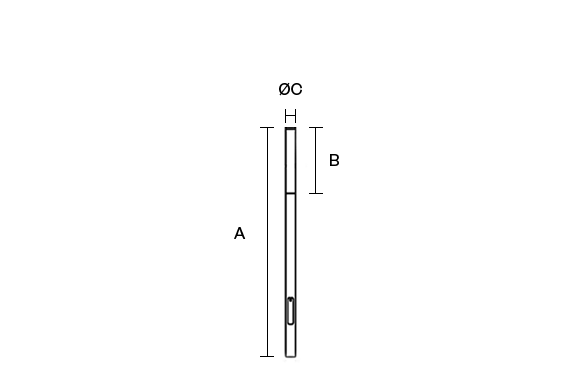

New Silka Max 2 Product variant dimensions drawing Lighting W573px2
Dimensions (mm):
  • Ø C 170
  • A 2600
  • B 1200
Weight (kg):
18.5 (Flange), 23.3 Root
Windage (m2):
0.445
New Silka Max 3 Product variant dimensions drawing Lighting W573px3
Dimensions (mm):
  • A 3600
  • B 1200
  • Ø C 170
Weight (kg):
25.5 (Flange), 30.3 (Root)
Windage (m2):
0.615
New Silka Max 4 Product variant dimensions drawing Lighting W573px3
Dimensions (mm):
  • A 4600
  • B 1200
  • Ø C 170
Weight (kg):
32.5 (Flange), 37.3 (Root)
Windage (m2):
0.785
New Silka Max 5 Product variant dimensions drawing Lighting W573px3
Dimensions (mm):
  • Ø C 170
  • A 5600
  • B 1200
Weight (kg):
39.5 (Flange), 45.7 (Root)
Windage (m2):
0.955
