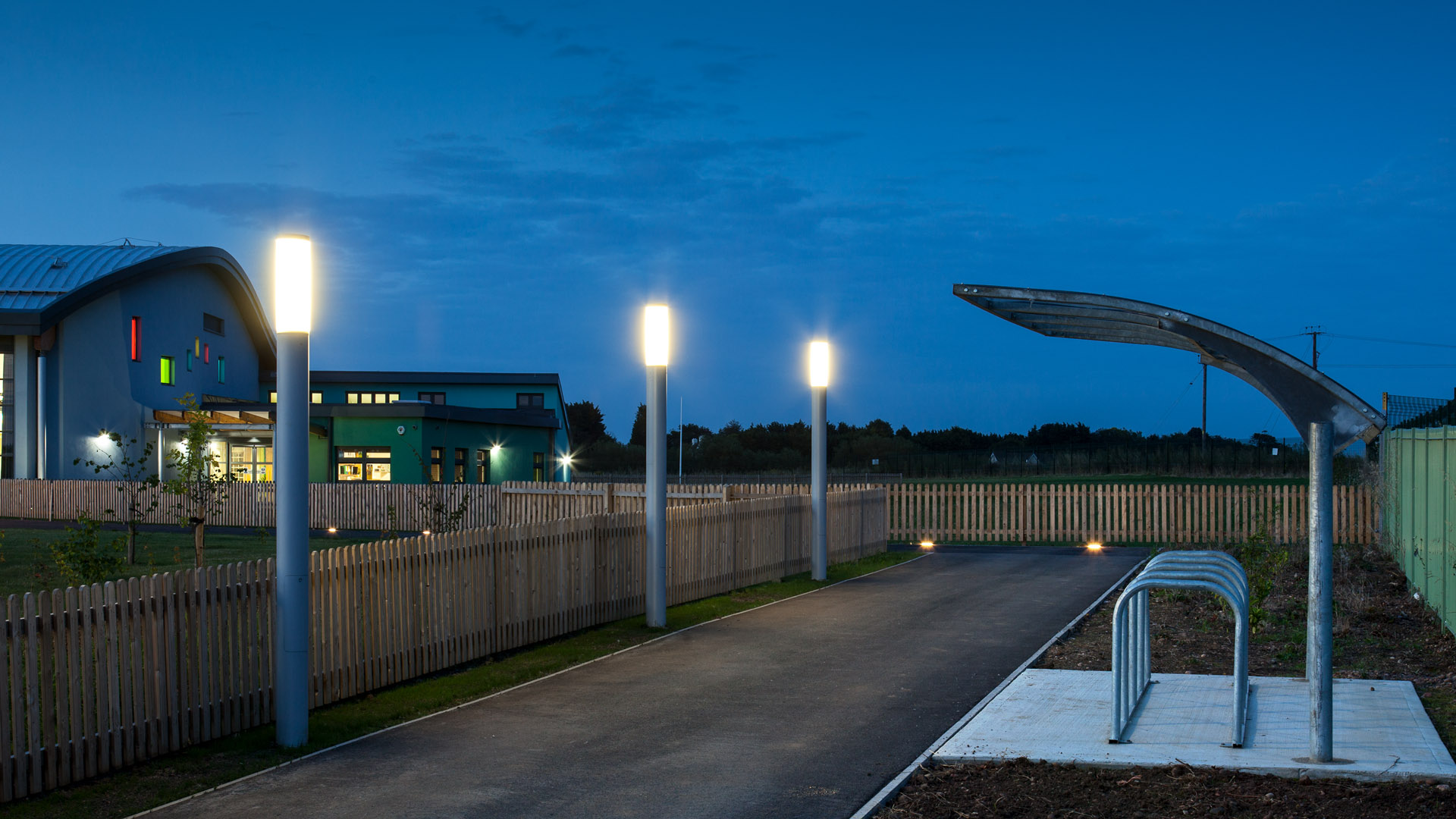

Silka Light Stack Location image 1920x1080px Alt9
Silka Light Stack Location image 1920x1080px Alt10

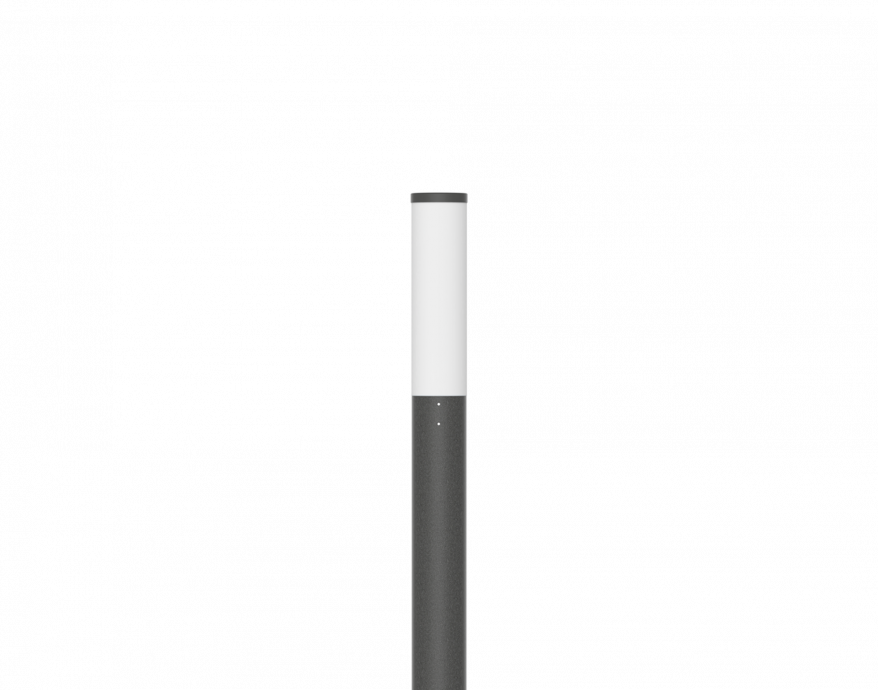

New Silka Product slider Product image Lighting 2000x1572px

Downloads

Silka brochure

Format: Adobe Acrobat PDF file, (6.4 MB)

Silka product datasheet

Format: Adobe Acrobat PDF file, (128 KB)

Silka product codes

Format: Adobe Acrobat PDF file, (71 KB)

More views

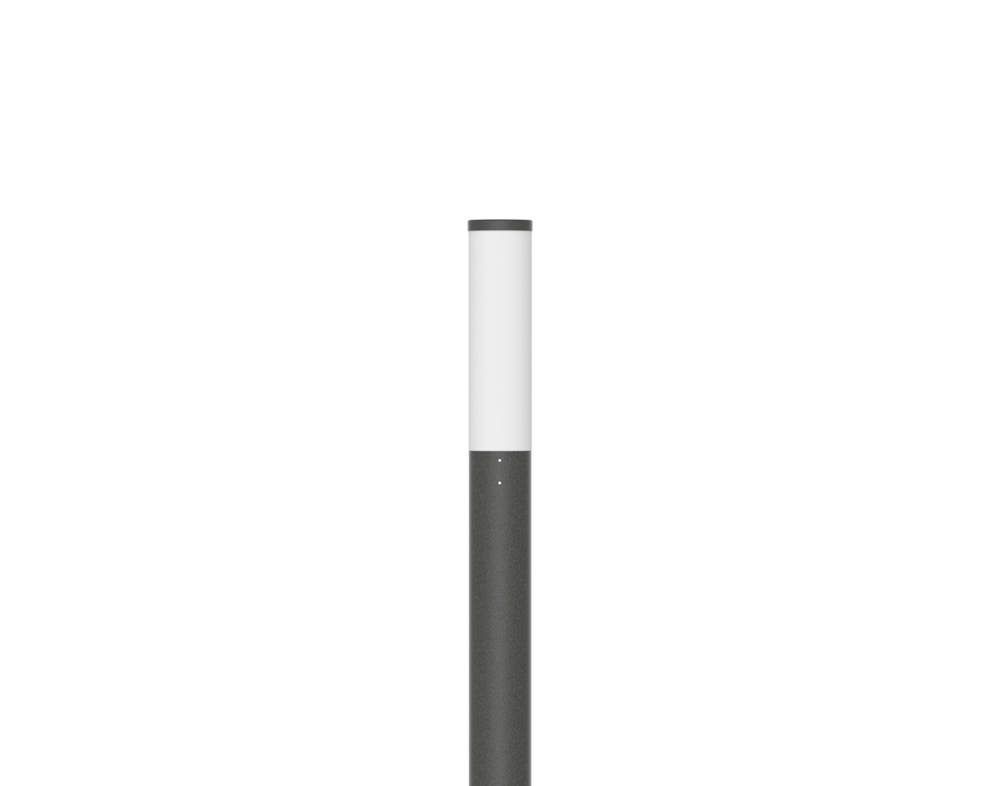

New Silka Product slider Product image Lighting 2000x1572px

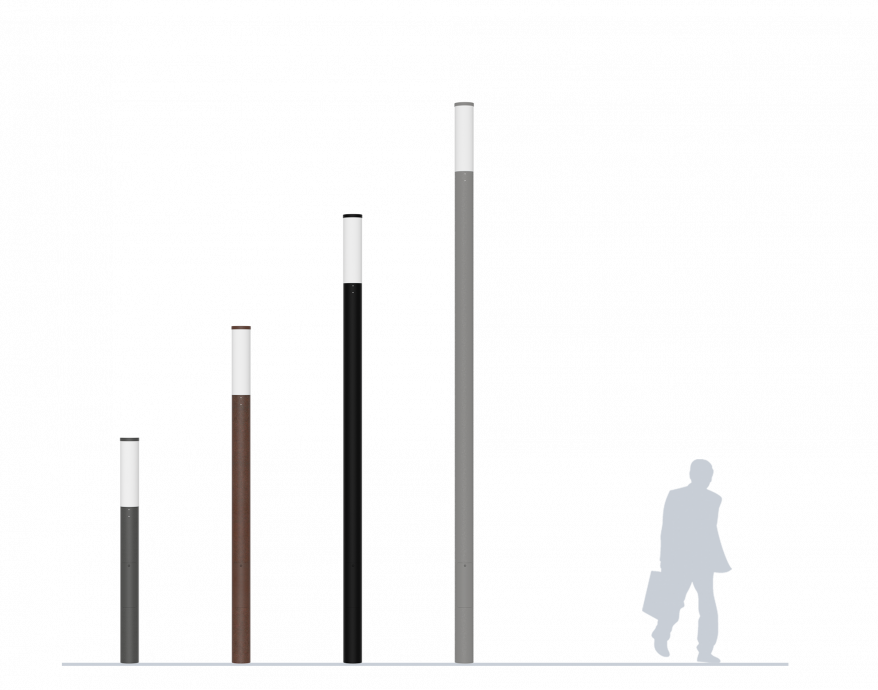

New Silka Family w colours Man silouhette Product slider Product image Lighting 2000x1572px2
Silka
Silka
/ Silka
Silka brochure
Silka product datasheet
Silka product codes
Silka Installation Instructions March 2020
Silka and Silka Max photometry
Contact

Light. Stacked.

More designers than ever before are using luminaires as an art form, transforming spaces through colour or people-centred design that informs or guides.

A professional lightstack, Silka provides dynamic architectural illumination. It also provides opportunities beyond just illumination.

With an elegant design, which is configurable to suit your architectural environment, Silka is available in multiple column and glazing configurations providing decorative illumination for public realm and open spaces. Perfect for orientation and area waymarking.

  • 600mm height light source
  • Seamless aluminium construction
  • Choice of 2700K, 3000K or 4000K or RGBW
  • Bluetooth control option via Casambi or Tridonic
  • Up to 1,760 lumens

Request a quote

Options in this range

Name Dimensions (mm) Weight (kg) Windage (m2)
Silka 2 Height: 2000 16.5 (Flange plate), 21.3 (Root) 0.343
Silka 3 Height: 3000 23.5 (Flange plate), 28.3 (Root) 0.513
Silka 4 Height: 4000 30.5 (Flange plate), 35.3 (Root) 0.683
Silka 5 Height: 5000 37.5 (Flange plate), 43.7 (Root) 0.853

Detailed Specification

Product specification

Electrical Class:
I, II
IP rating:
IP66
IK rating:
IK09
Certifications:
CE
Mounting Height (m):
2-5.6
Applications:
Public realm
Paths & walkways

Lighting

Light source:
LED
Lumen Range (lumens):
1760
Power Range:
29
Distribution:
Symmetric
Colour Temperature (CCT):
2700K
3000K
4000K
RGBW (2700K)
RGBW (4000K)
Colour rendering (CRI):
90Ra (3 SDCM)
Max efficacy (luminaire lumens):
61
L70 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Dimming:
1 to 100%
Driver:
24V DC constant voltage

Mechanical and installation

Materials:
Body: aluminium
Glazing: Opal high impact-resistant PMMA
Finish:
Textured polyester powder coat
Product colours:
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
RAL 9016 White
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Operating temp (°C):
-25° to +45°
Mounting:
Root mounted
Flange plate

Downloads and dimensions

Silka brochure

Format: Adobe Acrobat PDF file, (6.4 MB)

Download

Silka product datasheet

Format: Adobe Acrobat PDF file, (128 KB)

Download

Silka product codes

Format: Adobe Acrobat PDF file, (71 KB)

Download

Silka Installation Instructions March 2020

Format: Adobe Acrobat PDF file, (478 KB)

Download

Silka and Silka Max photometry

Format: ZIP compressed file, (26 KB)

Download
New Silka 2 Product variant dimensions drawing Lighting W573px5
Dimensions (mm):
  • Ø C 170
  • A 2000
  • B 600
Weight (kg):
16.5 (Flange plate), 21.3 (Root)
Windage (m2):
0.343
New Silka 3 Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • Ø C 170
  • A 3000
  • B 600
Weight (kg):
23.5 (Flange plate), 28.3 (Root)
Windage (m2):
0.513
New Silka 4 Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • Ø C 170
  • A 4000
  • B 600
Weight (kg):
30.5 (Flange plate), 35.3 (Root)
Windage (m2):
0.683
New Silka 5 Product variant dimensions drawing Lighting W573px
Dimensions (mm):
  • Ø C 170
  • A 5000
  • B 600
Weight (kg):
37.5 (Flange plate), 43.7 (Root)
Windage (m2):
0.853
