Sandy 10

Change view:

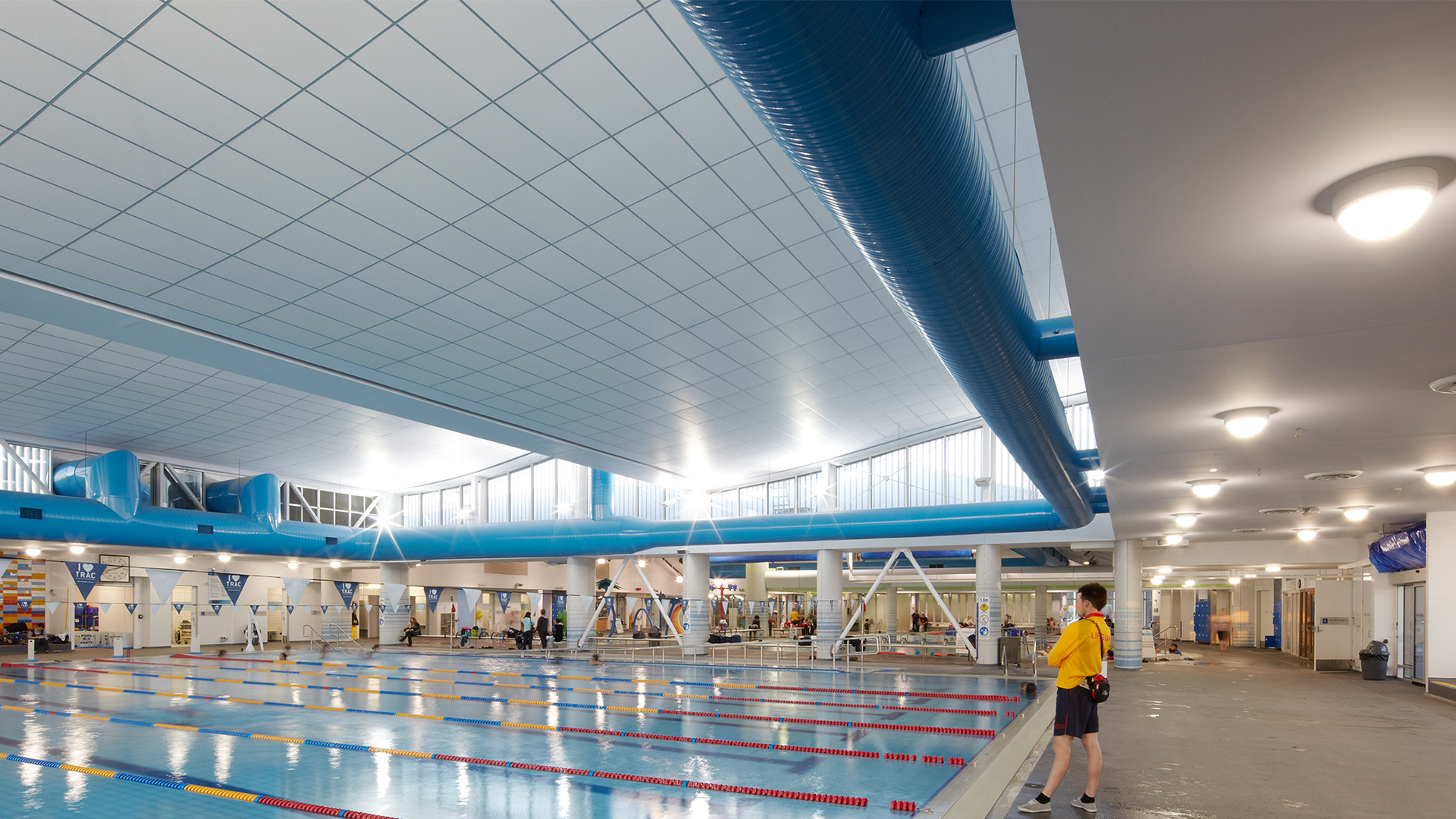

Sandy Wall Ceiling Location image LIGMAN 1920x1080px10

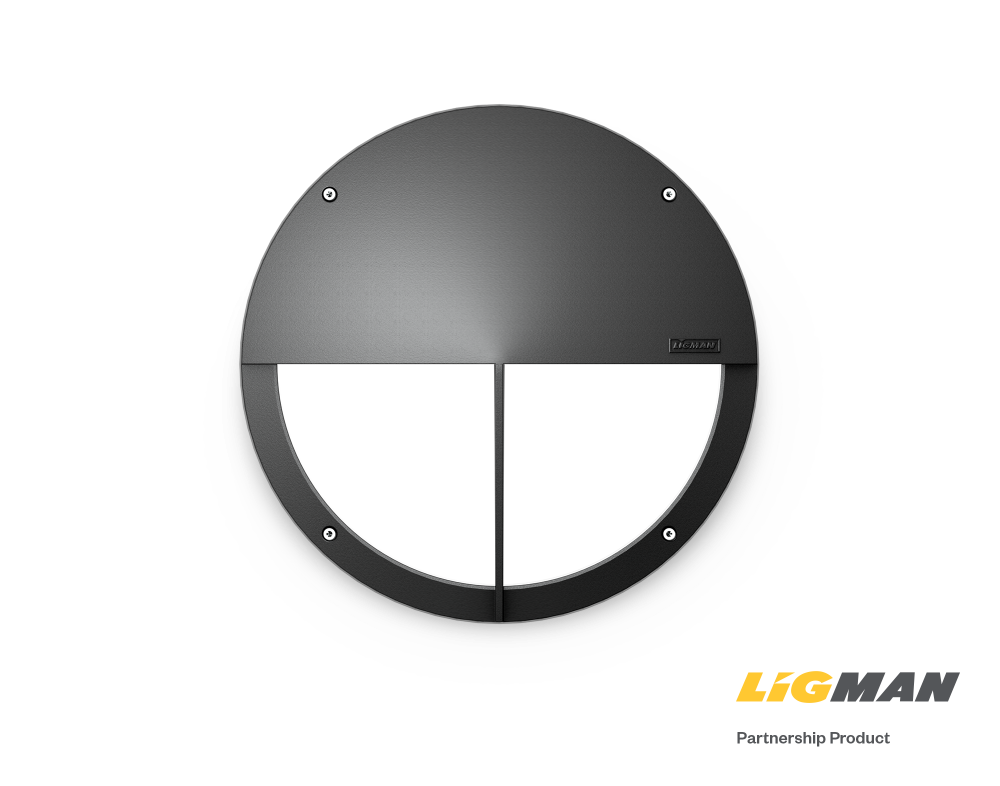

Sandy 10 Product slider Product image LIGMAN 2000x1572px

Downloads

Sandy family datasheet

Format: Adobe Acrobat PDF file, (3.3 MB)

Sandy 7-8-9-10 installation instructions

Format: Adobe Acrobat PDF file, (341 KB)

Sandy 10 datasheet

Format: Adobe Acrobat PDF file, (1 MB)

Surface facade luminaire

Shielded, circular wall-mounted bulkhead range.

  • Die-cast aluminium housing and frame pre-treated before powder coating ensuring high corrosion resistance
  • Two cable entries for through wiring
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Opal, impact-resistant, UV-stabilised polycarbonate diffuser
  • Integral control gear

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways
Car parks
Rail

Lighting

Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
595-623
Power Range:
27
LED qty:
50
Distribution:
110° x 109°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 23lm/W
L90 Lifetime Estimate:
>68,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
700mA
Dimming:
On/Off, 1-10V, DALI

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Polycarbonate
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall surface
Ceiling surface

Downloads and dimensions

Sandy family datasheet

Format: Adobe Acrobat PDF file, (3.3 MB)

Sandy 7-8-9-10 installation instructions

Format: Adobe Acrobat PDF file, (341 KB)

Sandy 10 datasheet

Format: Adobe Acrobat PDF file, (1 MB)

Completed Sandy 10 Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 355
  • B 355
  • C 158
Weight (kg):
4.1
