Rio 500

Change view:

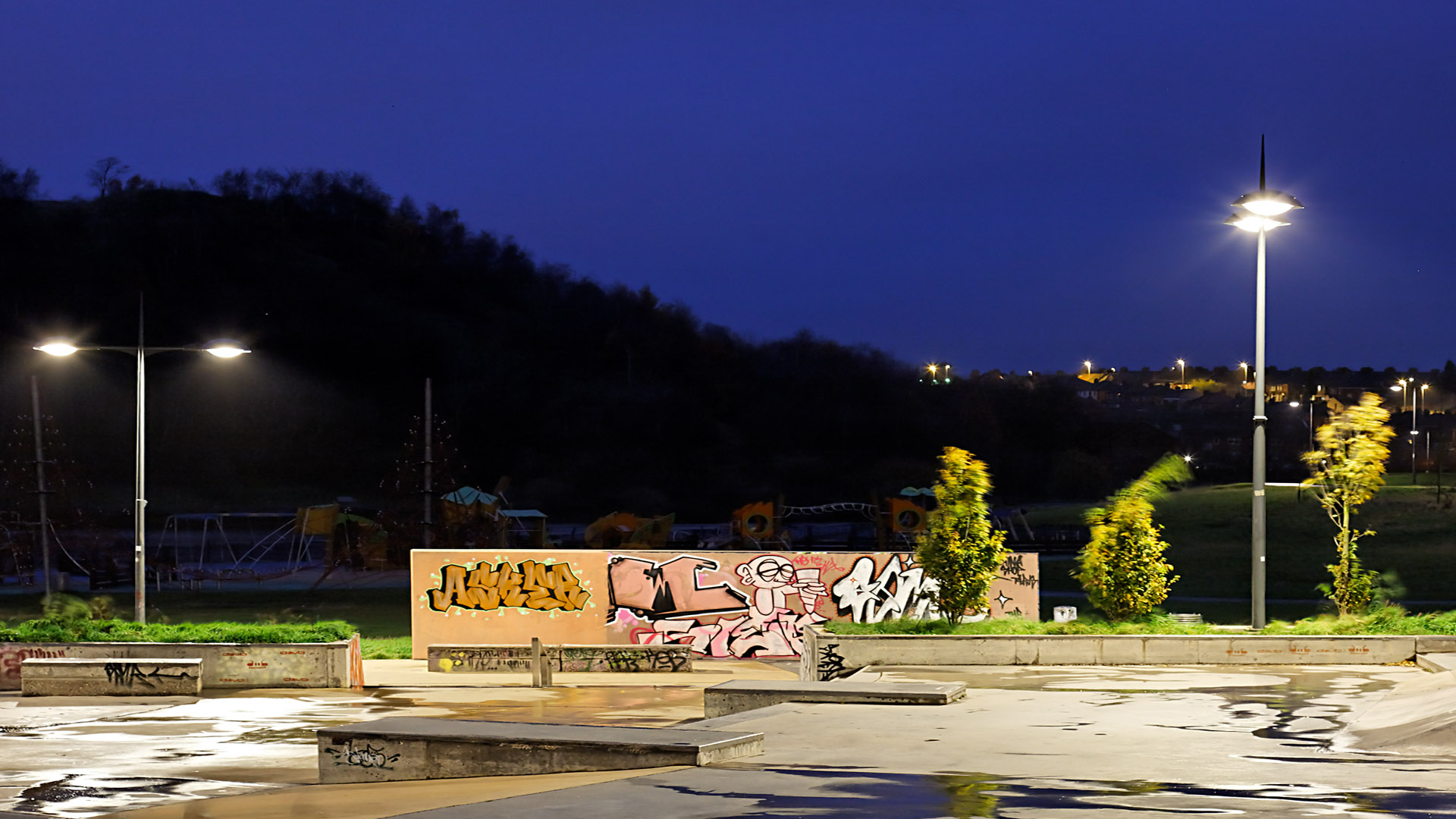

Rio Decorative Street Lighting Location image 1920x1080px Alt5
Rio Decorative Street Lighting Product image 2000x1572px Alt3

Downloads

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Rio product codes

Format: Adobe Acrobat PDF file, (45 KB)

Rio photometry

Format: ZIP compressed file, (2.4 MB)

Developed in association with lighting architects Speirs and Major

Rio is a popular luminaire choice in our lighting range, which was first designed for Bluewater shopping centre in 1999. Available with a selection of specially designed bracket styles, complementary tapered columns and illuminated spike or drum finials.

  • Performance LED light engine available for excellent energy savings
  • For mounting at 8-10 metres
  • Flat glass glazing for zero light pollution

Request a quote

Options in this range

Name Light source Lumen Range (lumens) Power Range Colour Temperature (CCT)
Performance LED High power LED 5632-22515 41-198 2700K, 3000K, 4000K

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
8-10

Lighting

Lumen Range (lumens):
5632-22515
LED qty:
64

Power and control

Controls:
Miniature photocell
Part night switching
Pre-programmed dimming
CMS compatible
Sensor ready

Mechanical and installation

Materials:
Body: High pressure die-cast aluminium
Canopy: Spun aluminium
Seals: Silicone
Glazing: Flat toughened glass
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
PAN 7621 Metallic silver
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Side Entry: Ø42mm
Direct Post: Ø76mm

Downloads and dimensions

Retrofit LED Solutions

Format: Adobe Acrobat PDF file, (1.9 MB)

Rio product codes

Format: Adobe Acrobat PDF file, (45 KB)

Rio photometry

Format: ZIP compressed file, (2.4 MB)

Rio 500 product dimension drawing W573px
Dimensions (mm):
  • A 276
  • B 750
Weight (kg):
20
Windage (m2):
0.14
