Rado 6

Change view:

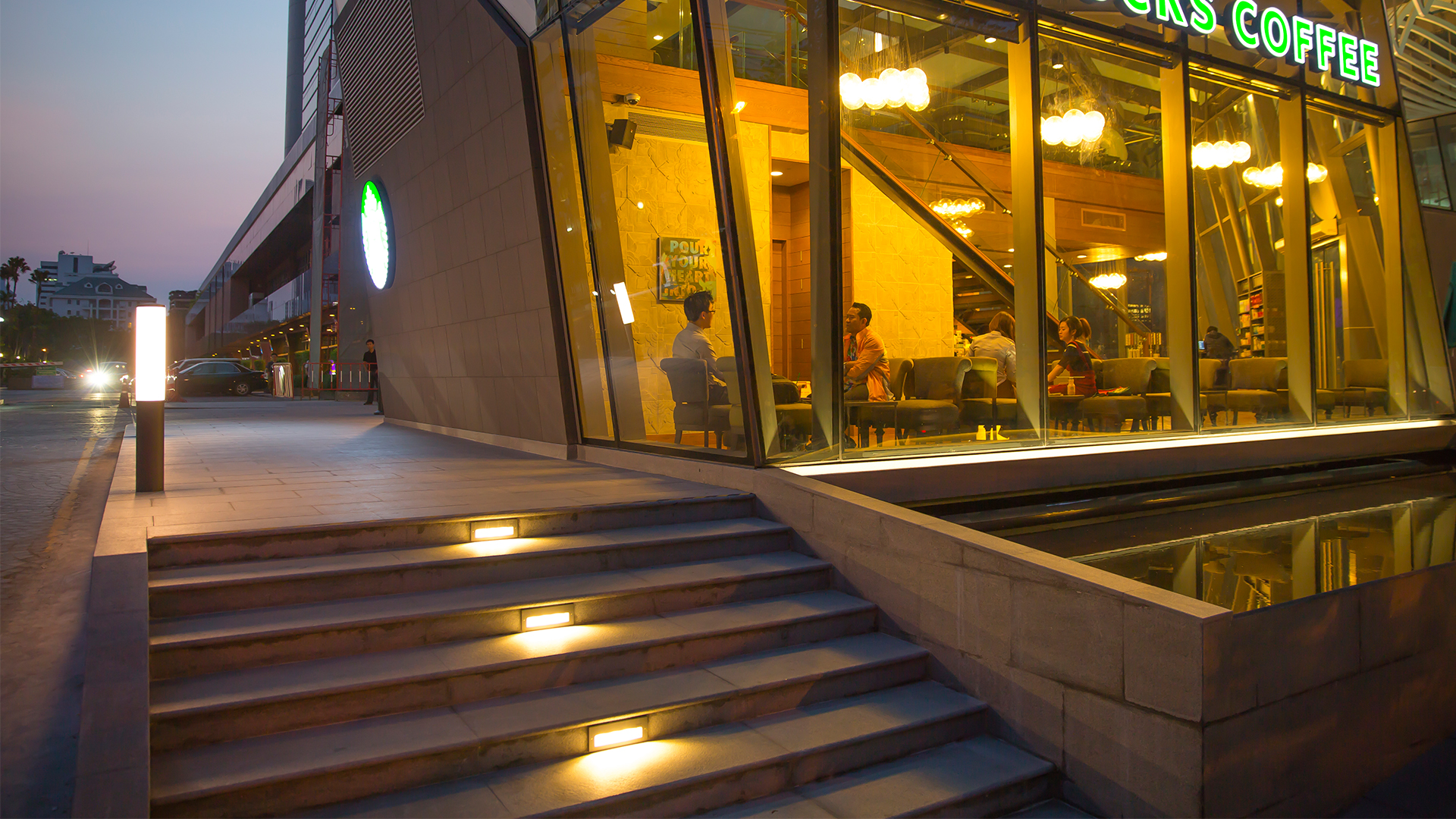

Rado 1 Wall Ceiling Location image LIGMAN 1920x1080px9

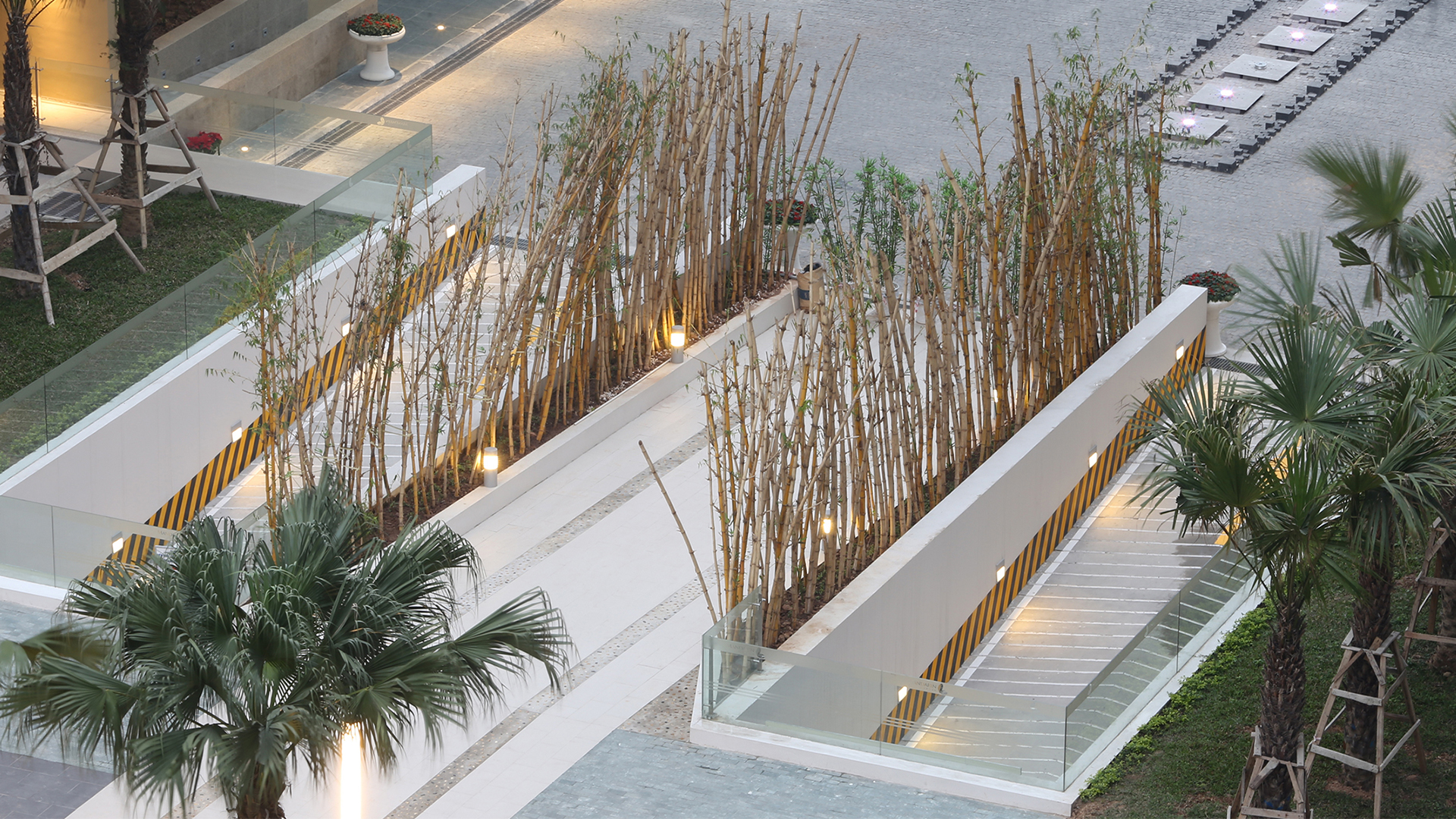

Rado 2 Wall Ceiling Location image LIGMAN 1920x1080px8

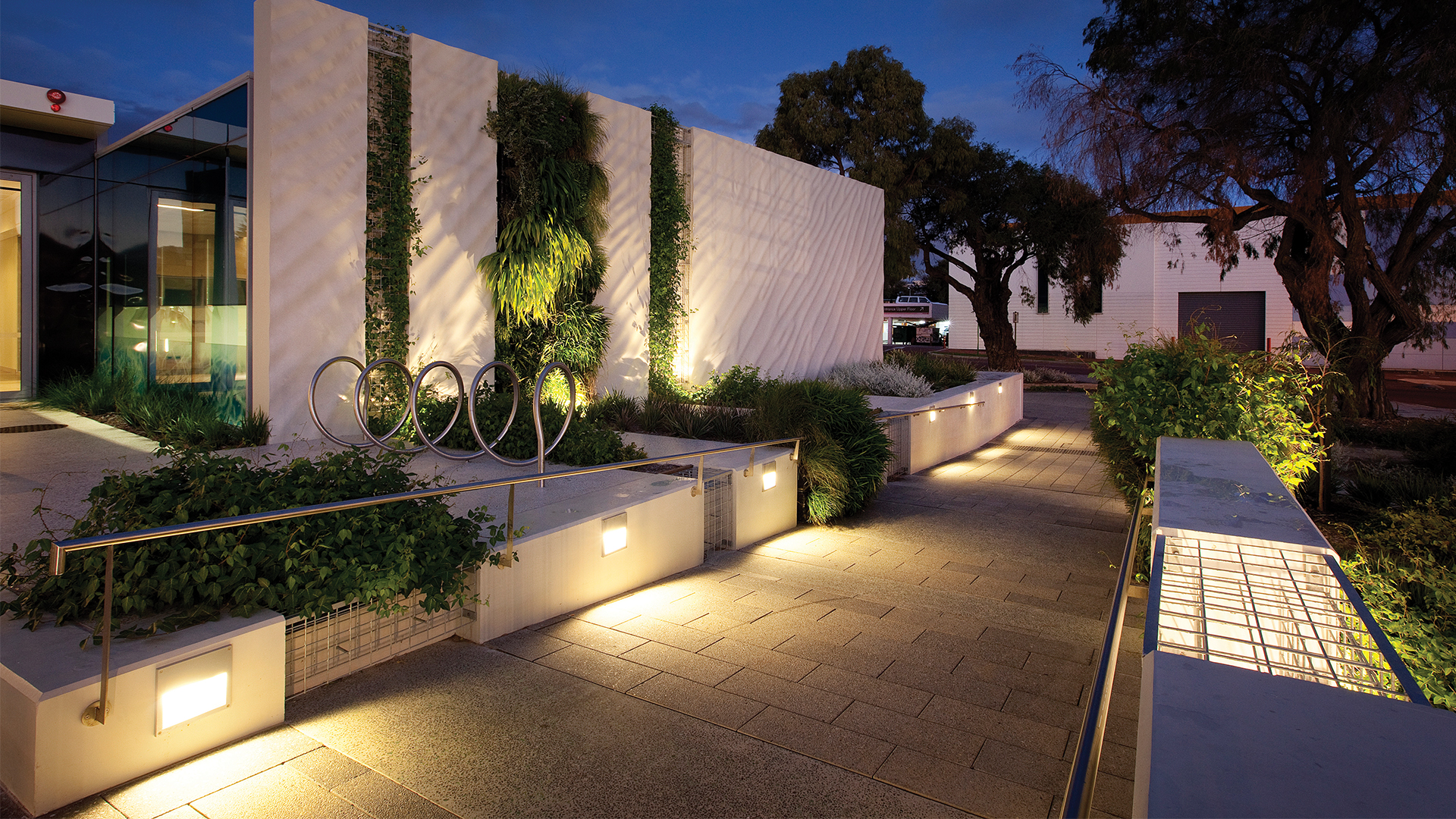

Rado 3 Wall Ceiling Location image LIGMAN 1920x1080px7

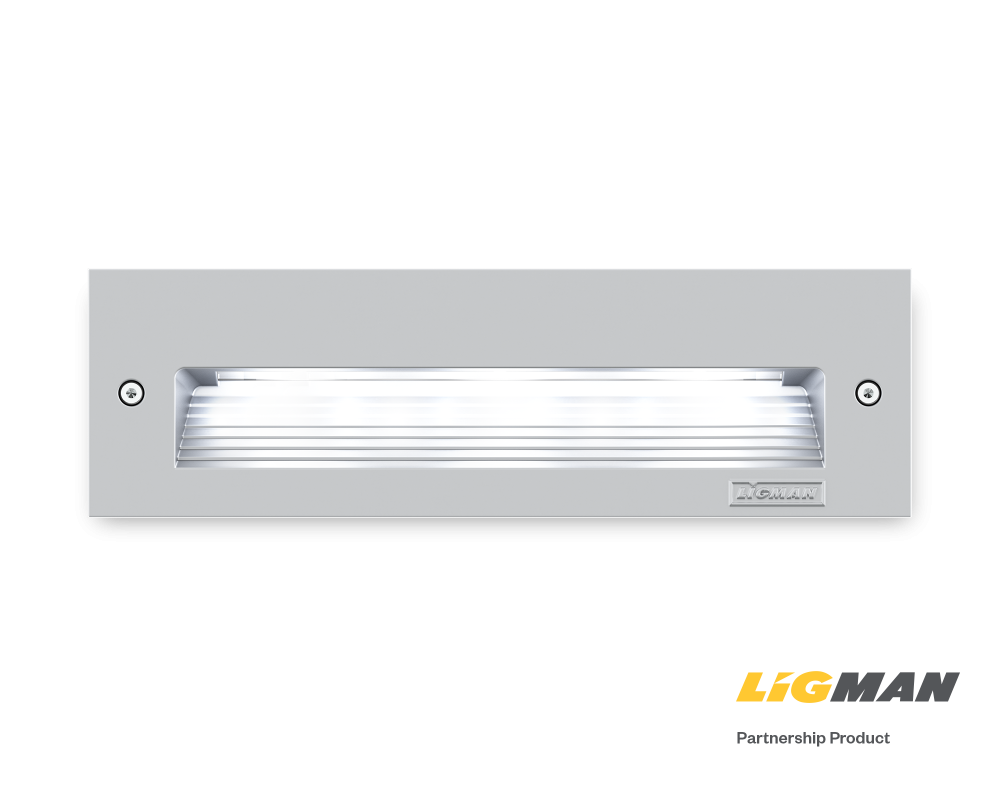

Rado 6 Product slider Product image LIGMAN 2000x1572px

Downloads

Rado family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Rado 6 datasheet

Format: Adobe Acrobat PDF file, (389 KB)

Rado 6 installation instructions

Format: Adobe Acrobat PDF file, (259 KB)

Recessed luminaires

Sturdy classic wall-recessed pathway and stair luminaire. Simple pleasing aesthetic and sturdy construction, perfect for retrofit applications with its multiple sizes offered.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Two cable entries for through wiring
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Toughened glass diffuser
  • Integral control gear



Request a quote

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK09
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways
Bridges & footbridges

Lighting

Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
438-471
Power Range:
11
LED qty:
30
Distribution:
31° x 88°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 43lm/W
L80 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
500mA
Dimming:
On/Off

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall recessed

Downloads and dimensions

Rado family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Rado 6 datasheet

Format: Adobe Acrobat PDF file, (389 KB)

Rado 6 installation instructions

Format: Adobe Acrobat PDF file, (259 KB)

Completed Rado 6 Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 330
  • B 100
Weight (kg):
2.5
