Recessed luminaires

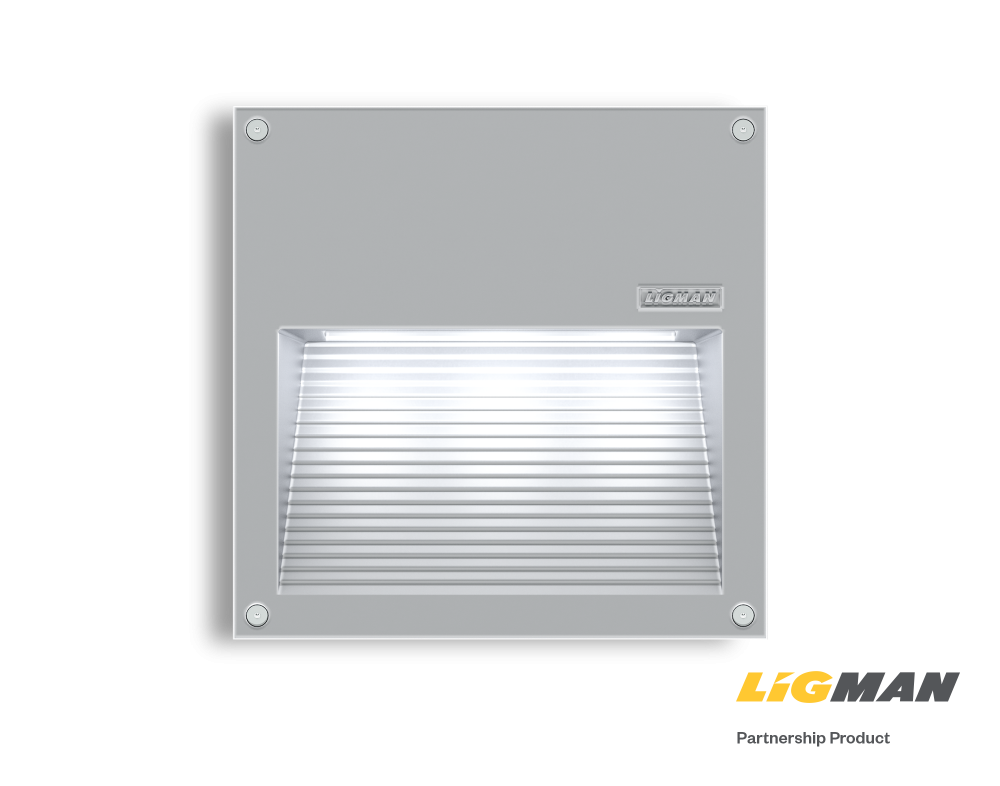

Sturdy classic wall-recessed pathway and stair luminaire. Simple pleasing aesthetic and sturdy construction, perfect for retrofit applications with its multiple sizes offered.
- Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
- Two cable entries for through wiring
- Stainless steel fasteners in grade 316
- Durable silicone rubber gasket
- Toughened glass diffuser
- Integral control gear
Request a quote
Request a quote
Detailed Specification
Product specification
Electrical Class:
I
IP rating:
IP65
IK rating:
IK09
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways
Bridges & footbridges
Buildings
Paths & walkways
Bridges & footbridges
Lighting
Light source:
Service Mounted Device LED (SMD)
Lumen Range (lumens):
502-540
Power Range:
13
LED qty:
3 x 12
Distribution:
50° x 80°
Colour Temperature (CCT):
3000K
4000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 42lm/W
L80 Lifetime Estimate:
>50,000hrs
Power and control
Voltage:
220-240V
Drive Current Range:
350mA
Dimming:
On/Off, 1-10V, DALI
Mechanical and installation
Materials:
Body: Die-cast aluminium
Glazing: Glass
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall recessed
Downloads and dimensions

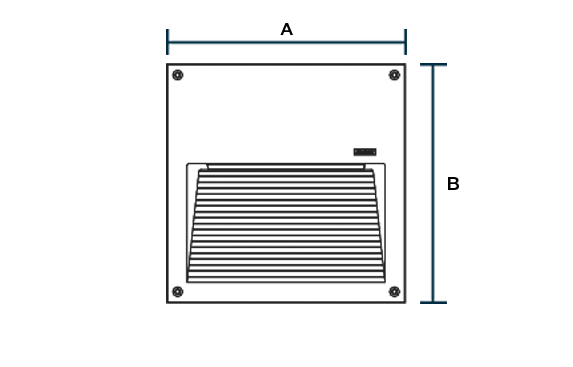

Dimensions (mm):
- A 242
- B 242
Weight (kg):
2.0
2.0
