Rado 1

Change view:

Rado 1 Wall Ceiling Location image LIGMAN 1920x1080px4
Rado 2 Wall Ceiling Location image LIGMAN 1920x1080px2
Rado 3 Wall Ceiling Location image LIGMAN 1920x1080px2
Rado 1 Product slider Product image LIGMAN 2000x1572px

Downloads

Rado family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Rado 1 datasheet

Format: Adobe Acrobat PDF file, (554 KB)

Rado 1 installation instructions

Format: Adobe Acrobat PDF file, (269 KB)

Recessed luminaires

Sturdy classic wall-recessed pathway and stair luminaire. Simple pleasing aesthetic and sturdy construction, perfect for retrofit applications with its multiple sizes offered.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Two cable entries for through wiring
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • Toughened glass diffuser
  • Integral control gear



Request a quote

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK09
Certifications:
CE
Applications:
Public realm
Buildings
Paths & walkways
Bridges & footbridges

Lighting

Light source:
Chip on Board LED (CoB)
Lumen Range (lumens):
124-133
Power Range:
4
LED qty:
1
Distribution:
36° x 50°
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
>80Ra
Max efficacy (luminaire lumens):
up to 33lm/W
L80 Lifetime Estimate:
>50,000hrs

Power and control

Voltage:
220-240V
Drive Current Range:
350mA
Dimming:
On/Off, 1-10V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Wall recessed

Downloads and dimensions

Rado family datasheet

Format: Adobe Acrobat PDF file, (1.1 MB)

Rado 1 datasheet

Format: Adobe Acrobat PDF file, (554 KB)

Rado 1 installation instructions

Format: Adobe Acrobat PDF file, (269 KB)

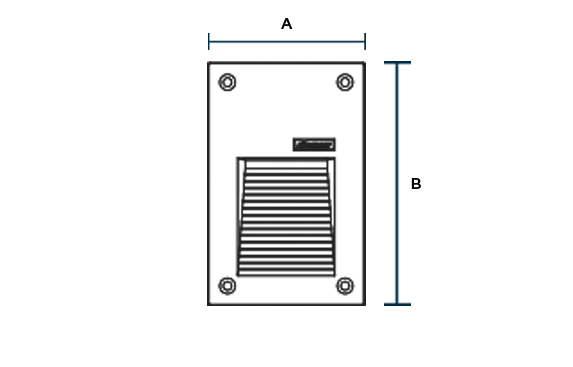

Completed Rado 1 Product variant dimensions drawing LIGMAN W573px
Dimensions (mm):
  • A 100
  • B 155
Weight (kg):
1.0
