Quantum

Change view:

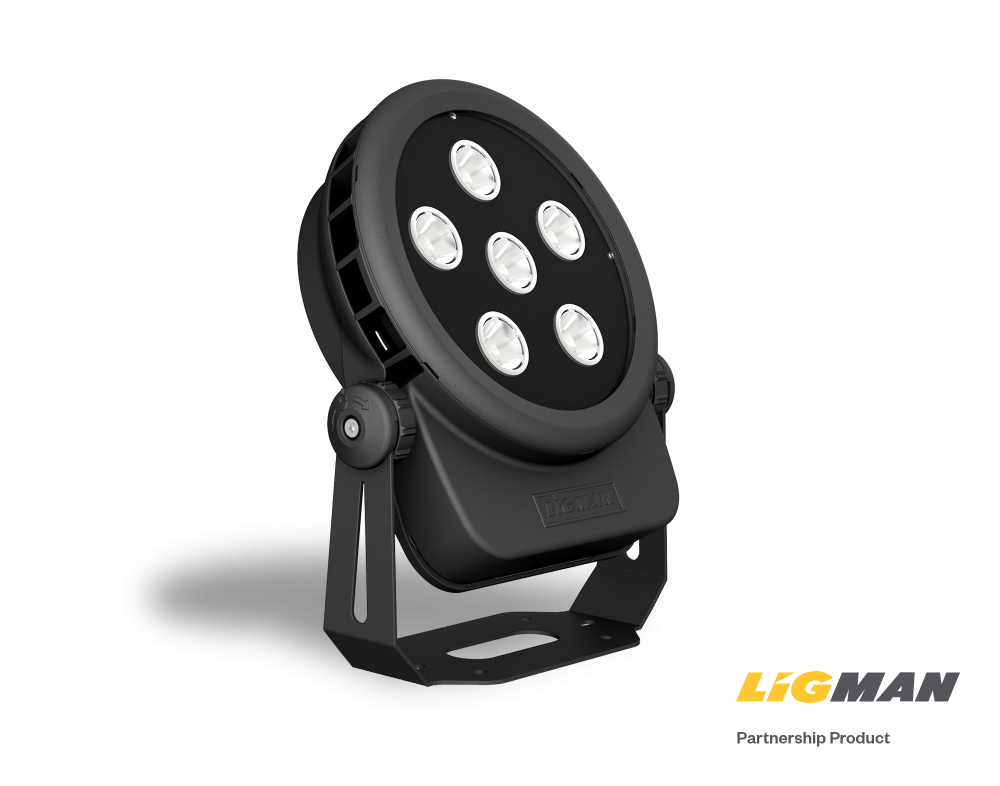

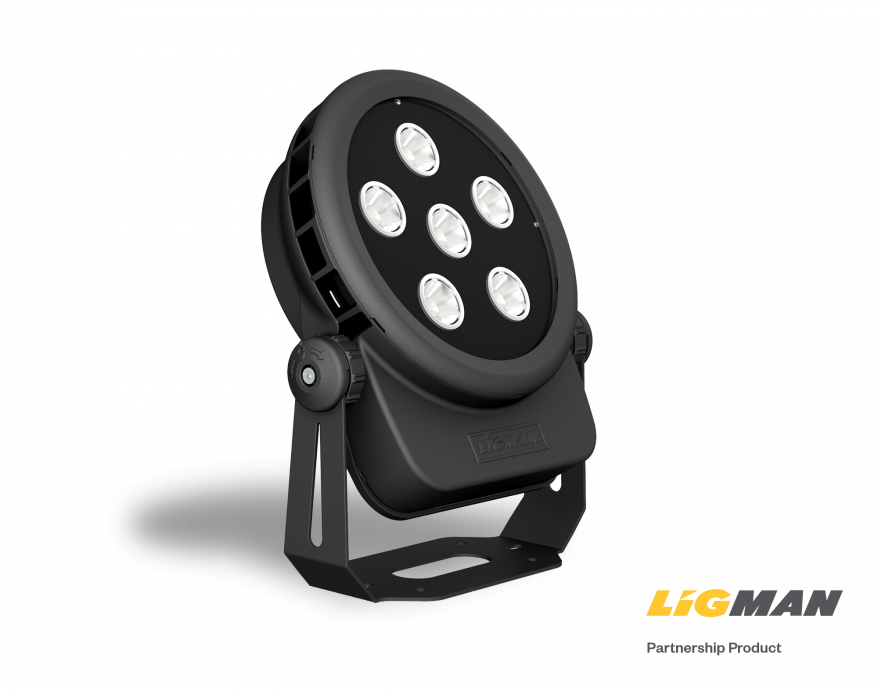

Quantum 2 Product slider Product image LIGMAN 2000x1572px

Downloads

Quantum family datasheet

Format: Adobe Acrobat PDF file, (2.8 MB)

Technical projectors

Adjustable surface-mounted technical projectors. New large premium projector, extending the family with stylish modern design, unique rotary thermal guard and up to 27,000 delivered lumens.

  • Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Through wiring on request
  • Stainless steel fasteners in grade 316
  • Durable silicone rubber gasket
  • High-efficiency optical reflector or PMMA lens
  • Clear toughened glass
  • Integral control gear

Products in this range

(3 in total)

Change view:

Contact us about this product

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP66
IK rating:
IK08
Certifications:
CE
Applications:
Public realm
Buildings
Area lighting
Bridges & footbridges

Lighting

Lumen Range (lumens):
1113-27436
LED qty:
3-6 x 16
Colour rendering (CRI):
>80Ra

Power and control

Voltage:
220-240V

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Glass
Finish:
Powder coat
Product colours:
RAL 9003 White
RAL 9011 Black
RAL 6014 Bronze
RAL 7043 Dark grey
RAL 9006 Matt silver
Other RAL colours on request
Mounting:
Ground surface

Downloads and dimensions

Quantum family datasheet

Format: Adobe Acrobat PDF file, (2.8 MB)

Complete Quantum 1 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 180
  • B 218
  • C 142
  • D 308
  • E 120
Weight (kg):
4.0
Completed Quantum 2 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 300
  • B 318
  • C 144
  • D 424
  • E 130
Weight (kg):
8.5
Completed Quantum 3 Product variant dimensions drawing LIGMAN W573px2
Dimensions (mm):
  • A 360
  • B 413
  • C 156
  • D 577
  • E 130
Weight (kg):
16.0
