Downloads
Pharola Max product codes
Format: Adobe Acrobat PDF file, (43 KB)
Pharola Max installation instructions
Format: Adobe Acrobat PDF file, (508 KB)
More views

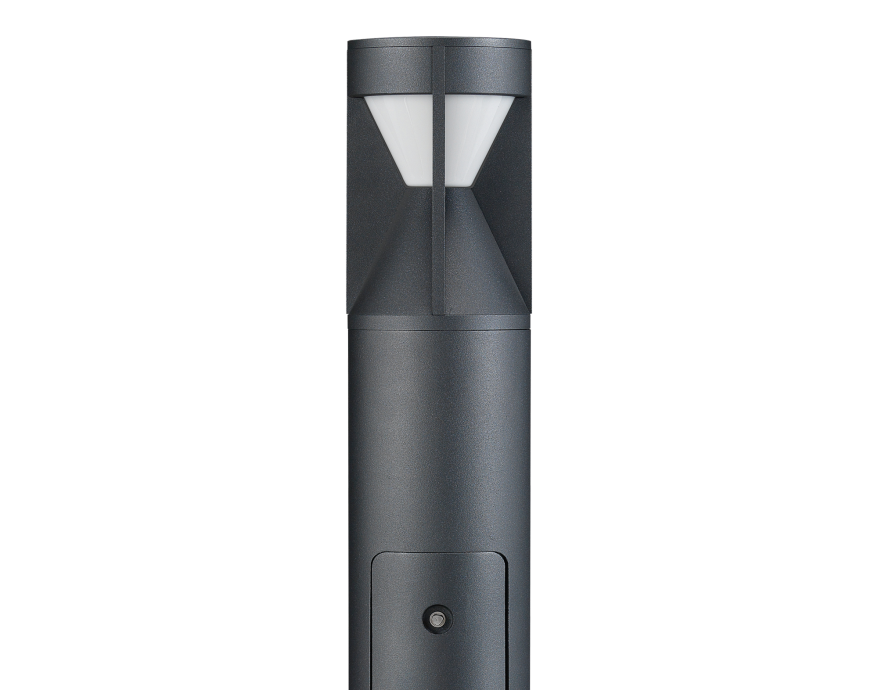

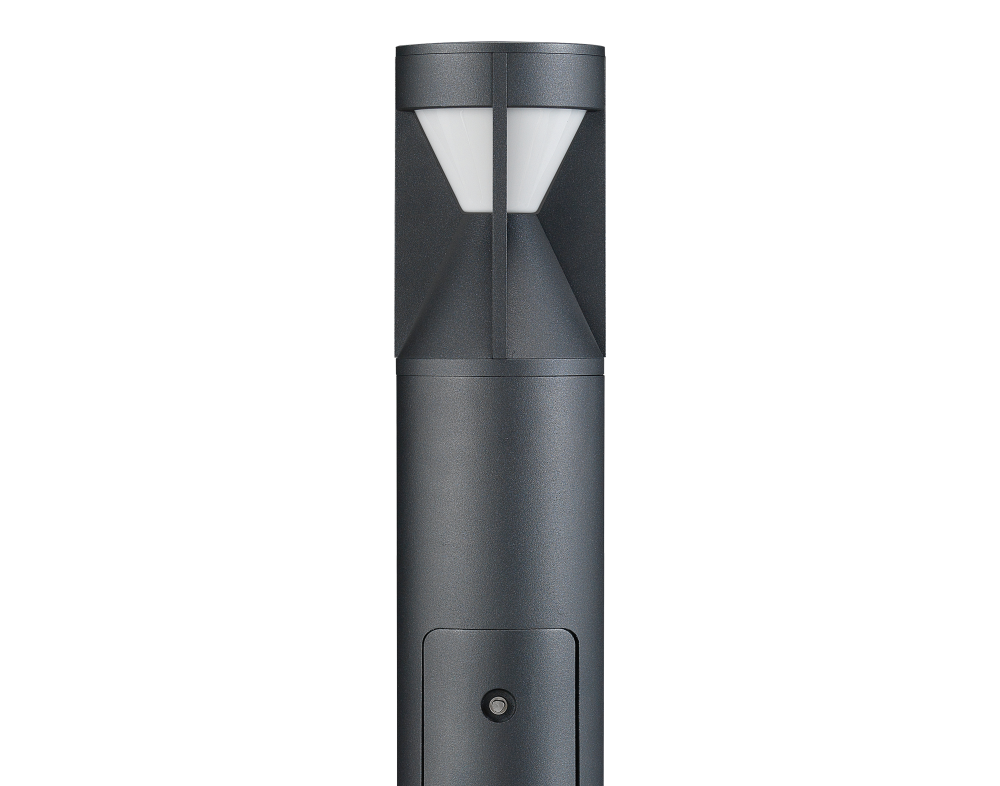

Statement architectural bollard
The Pharola Max 2 is styled to effortlessly blend into a wide range of urban environments.

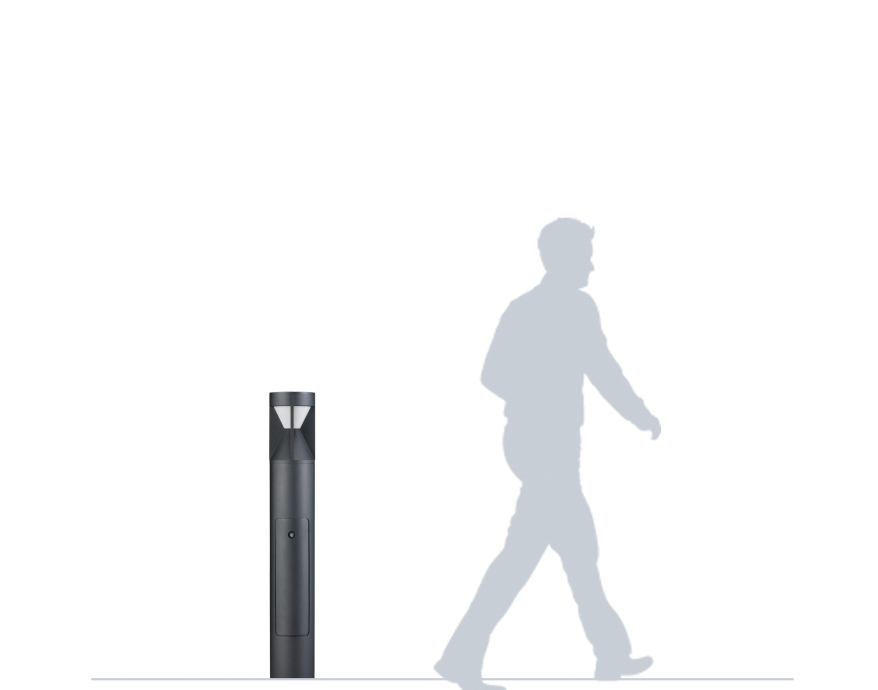

- Available in two heights, 1000mm and 3000mm
- Complete with door for cable termination access
- 2700K / 3000K / 4000K
Request a quote
Request a quote
Options in this range
| Name | Dimensions (mm) | Weight (kg) | |
|---|---|---|---|
| Pharola Max 2 1m | Height: 1000 | 18 | |
| Pharola Max 2 3m | Height: 3000 | 33 |
Detailed Specification
Product specification
Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE
Applications:
Public realm
Paths & walkways
Rail
Paths & walkways
Rail
Lighting
Light source:
High power LED
Lumen Range (lumens):
1050-1560
Power Range:
20
LED qty:
9
Distribution:
Symmetric
180° Backshield (on request)
180° Backshield (on request)
Colour Temperature (CCT):
2700K
3000K
4000K
3000K
4000K
Colour rendering (CRI):
>70Ra
Power and control
Drive Current Range:
700mA
Controls:
Remote switch
Driver:
Tridonic
Mechanical and installation
Materials:
Head: Die-cast aluminium
Body: Galvanised steel
Seals: Silicone
Glazing: Polycarbonate
Body: Galvanised steel
Seals: Silicone
Glazing: Polycarbonate
Finish:
Polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
RAL 9005 Black
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Other RAL colours on request
Mounting:
Root mounted
Flange plate
Flange plate
Downloads and dimensions
Pharola Max product codes
Format: Adobe Acrobat PDF file, (43 KB)
Pharola Max installation instructions
Format: Adobe Acrobat PDF file, (508 KB)
Dimensions (mm):
- Ø A 152
- B 1000
- C 250
- D 300
Weight (kg):
18
18
Dimensions (mm):
- Ø A 152
- B 3000
- C 250
- D 300
Weight (kg):
33
33
